NOMENCLATURE
INTELECT ADVANCED ELECTROTHERAPY AND COMBINATION THERAPY SYSTEMS (continued)

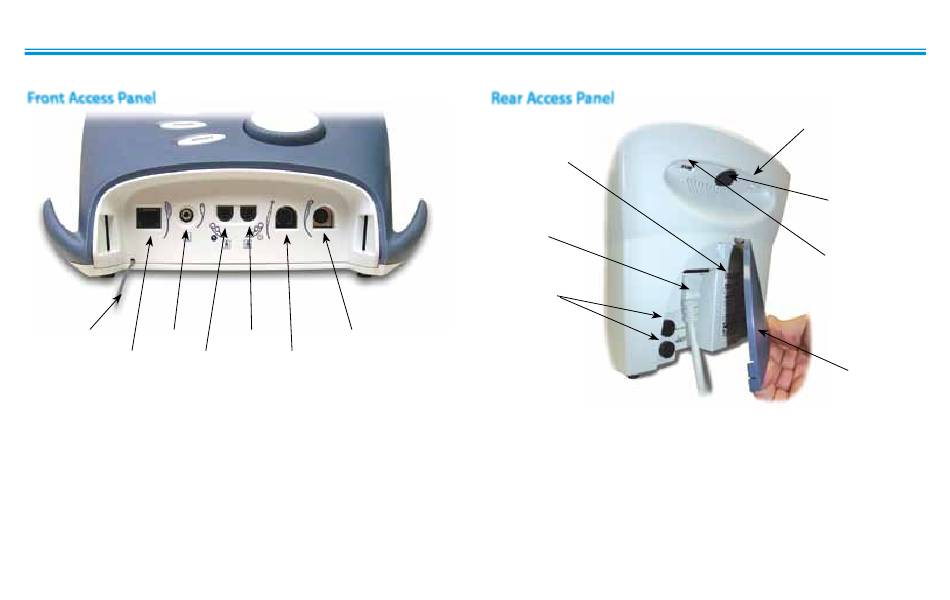

Front Access Panel

1 3
2 4
1. Front Access Panel Lanyard
When reinstalling the Front Access Panel, make certain the
Lanyard does not become kinked.
2. Operator Remote Control Connector
3. Patient Interrupt Switch Connector
4. Channel 1 Lead Wire Connector
5. Channel 2 Lead Wire Connector
6. Microcurrent Probe Connector
7. Ultrasound Applicator Connector
5 7
6

Rear Access Panel

7
5
4
1. Screen Contrast Control (Not functional on Color Systems)
2. Power On/Off Switch
3. Technical Maintenance Port
4. Fuses
5. Mains Power Cord
6. Rear Access Panel
7. Serial Decal
11
Intelect® Advanced Therapy System
1
2
3
6
