Application Examples

7 Application Examples
7.1 Application Examples

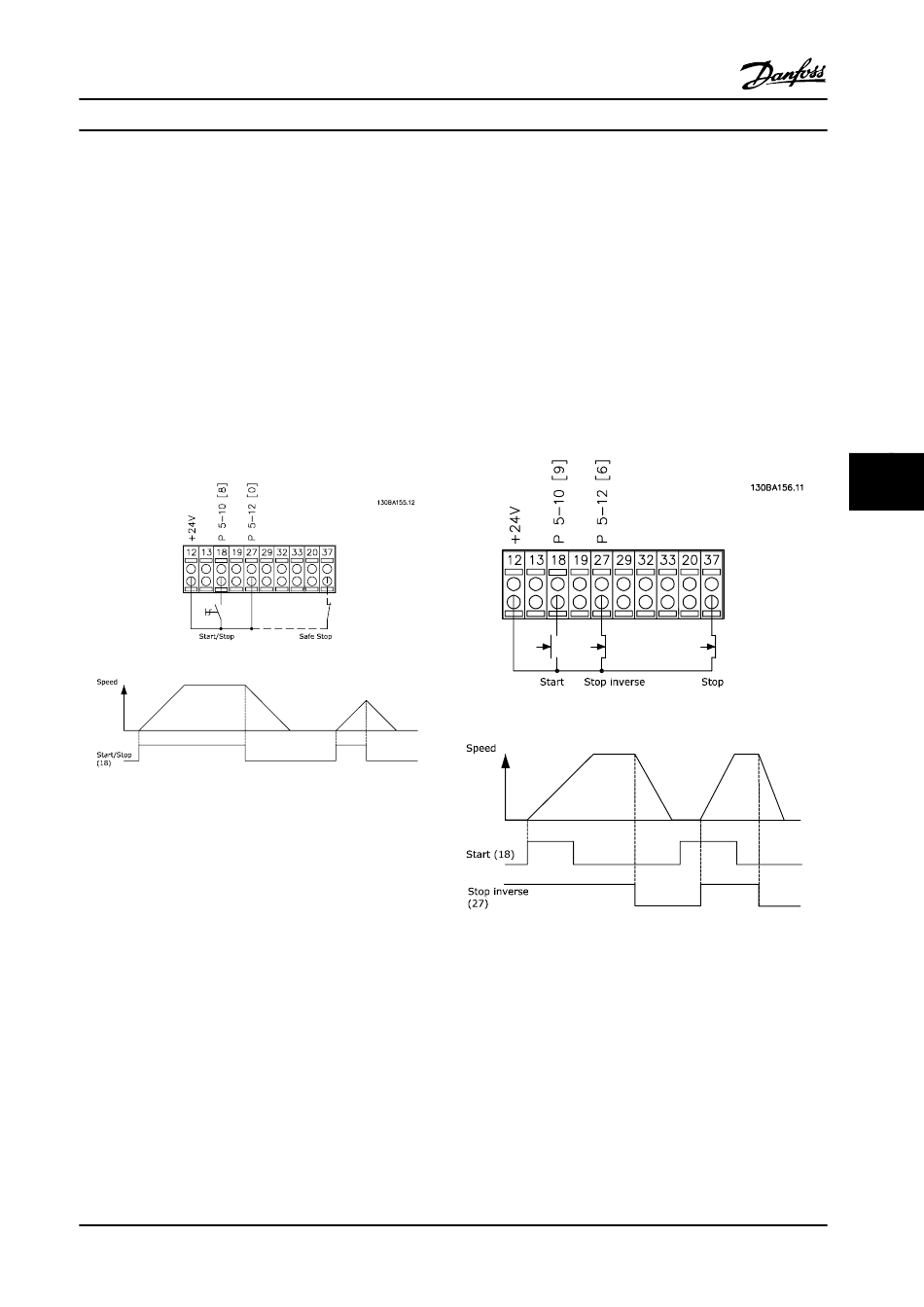

7.1.1 Start/Stop

Terminal 18 = start/stop 5-10 Terminal 18 Digital Input [8]
Start
Terminal 27 = No operation 5-12 Terminal 27 Digital Input
[0] No operation (Default coast inverse
5-10 Terminal 18 Digital Input = Start (default)
5-12 Terminal 27 Digital Input = coast inverse
(default)
Figure 7.1 Terminal 37: Available only with Safe Stop
Function
MG11BC22
Design Guide

7.1.2 Pulse Start/Stop

Terminal 18 = start/stop 5-10 Terminal 18 Digital Input [9]
Latched start
Terminal 27= Stop 5-12 Terminal 27 Digital Input [6] Stop
inverse
Figure 7.2 Terminal 37: Available Only with Safe Torque Off
Function
Danfoss A/S © Rev. 06/2014 All rights reserved.
5-10 Terminal 18 Digital Input = Latched start
5-12 Terminal 27 Digital Input = Stop inverse
