Danfoss VLT FC 102 Series Design Manual page 105

Electrical Installation

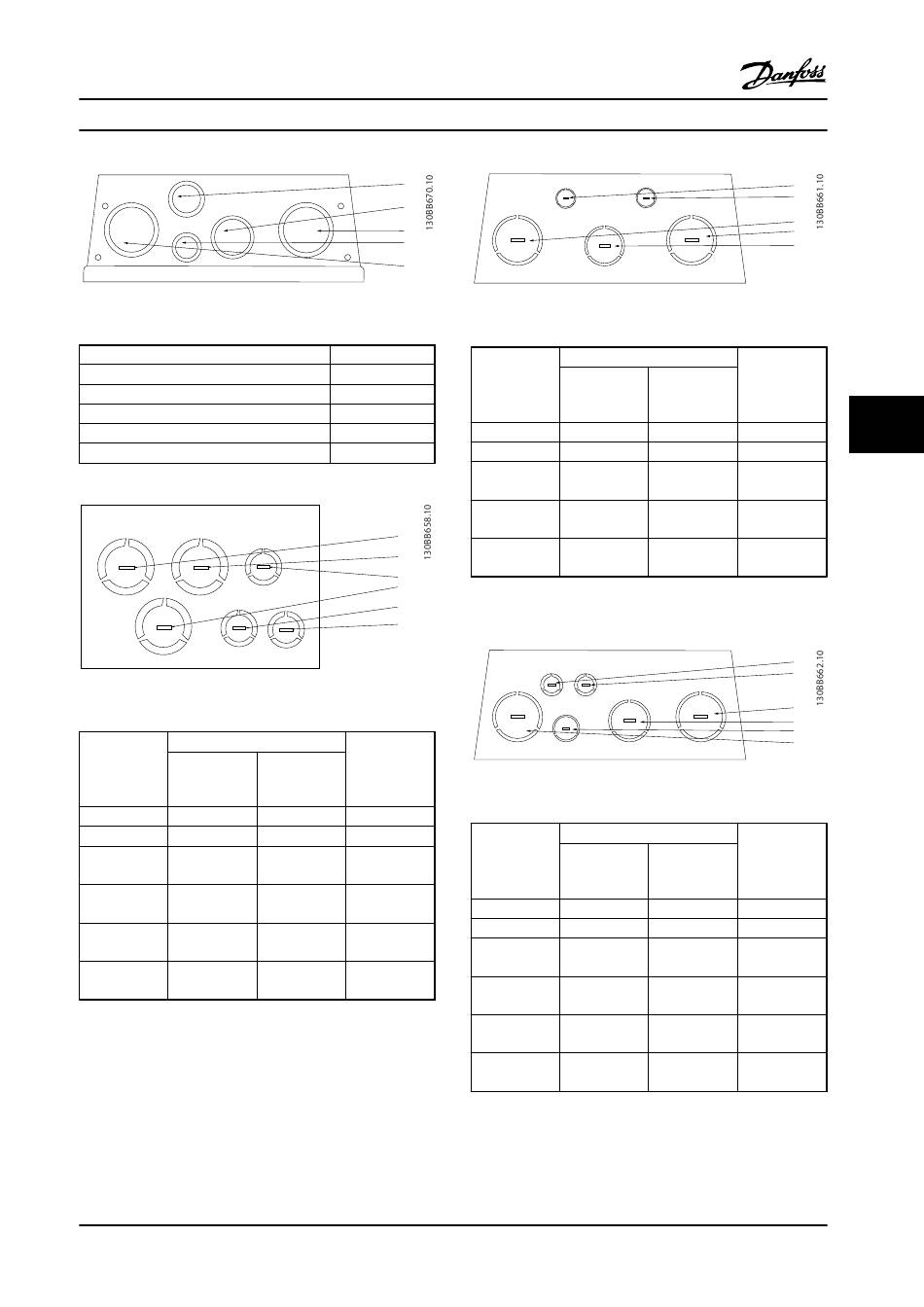

Figure 6.32 B2 - IP55 Threaded Connector Holes
Hole number and recommended use
1) Line power
2) Motor
3) Brake/Load Sharing
4) Control Cable
5) Control Cable
Table 6.14 Legend to Figure 6.32
Figure 6.33 B3 - IP21
Hole number
Dimensions
and
recommended
UL [in]
use
1) Line power 1
2) Motor 1
3) Brake/Load 1
Sharing
4) Control 1/2
Cable
5) Control 1/2
Cable
6) Control 1/2
Cable
Table 6.15 Legend to Figure 6.33
± 0.007 in [0.2 mm]
1) Tolerance
MG11BC22
Design Guide
[4]
[3]
[2]
[5]
[1]
Nearest metric
M40
M40
M32
M25
M20
[3]
[2]
[4]
[1]
[5]
[6]
1)
Nearest metric
[mm]
34.7 M32
34.7 M32
34.7 M32
22.5 M20
22.5 M20
22.5 M20
Danfoss A/S © Rev. 06/2014 All rights reserved.
Figure 6.34 C1 - IP21
Hole number
Dimensions
and
recommended
UL [in]
use
1) Line power 2
2) Motor 2
3) Brake/Load 1 1/2
Sharing
4) Control 3/4
Cable
5) Control 1/2
Cable
Table 6.16 Legend to Figure 6.34
± 0.007 in [0.2 mm]
1) Tolerance
Figure 6.35 C2 - IP21
Hole number
Dimensions
and
recommended
UL [in]
use
1) Line power 2
2) Motor 2
3) Brake/Load 1 1/2
Sharing
4) Control 3/4
Cable
5) Control 1/2
Cable
6) Control 1/2
Cable
Table 6.17 Legend to Figure 6.35
± 0.007 in [0.2 mm]
1) Tolerance
[5]
[4]
[2]
[3]
[1]
1)
Nearest metric
[mm]
63.3 M63
63.3 M63
50.2 M50
28.4 M25
22.5 M20
[5]
[6]
[2]
[3]
[4]
[1]
1)
Nearest metric
[mm]
63.3 M63
63.3 M63
50.2 M50
28.4 M25
22.5 M20
22.5 M20
103
6 6
