Application Examples
Design Guide
7.1.13 Cascade Controller Wiring Diagram

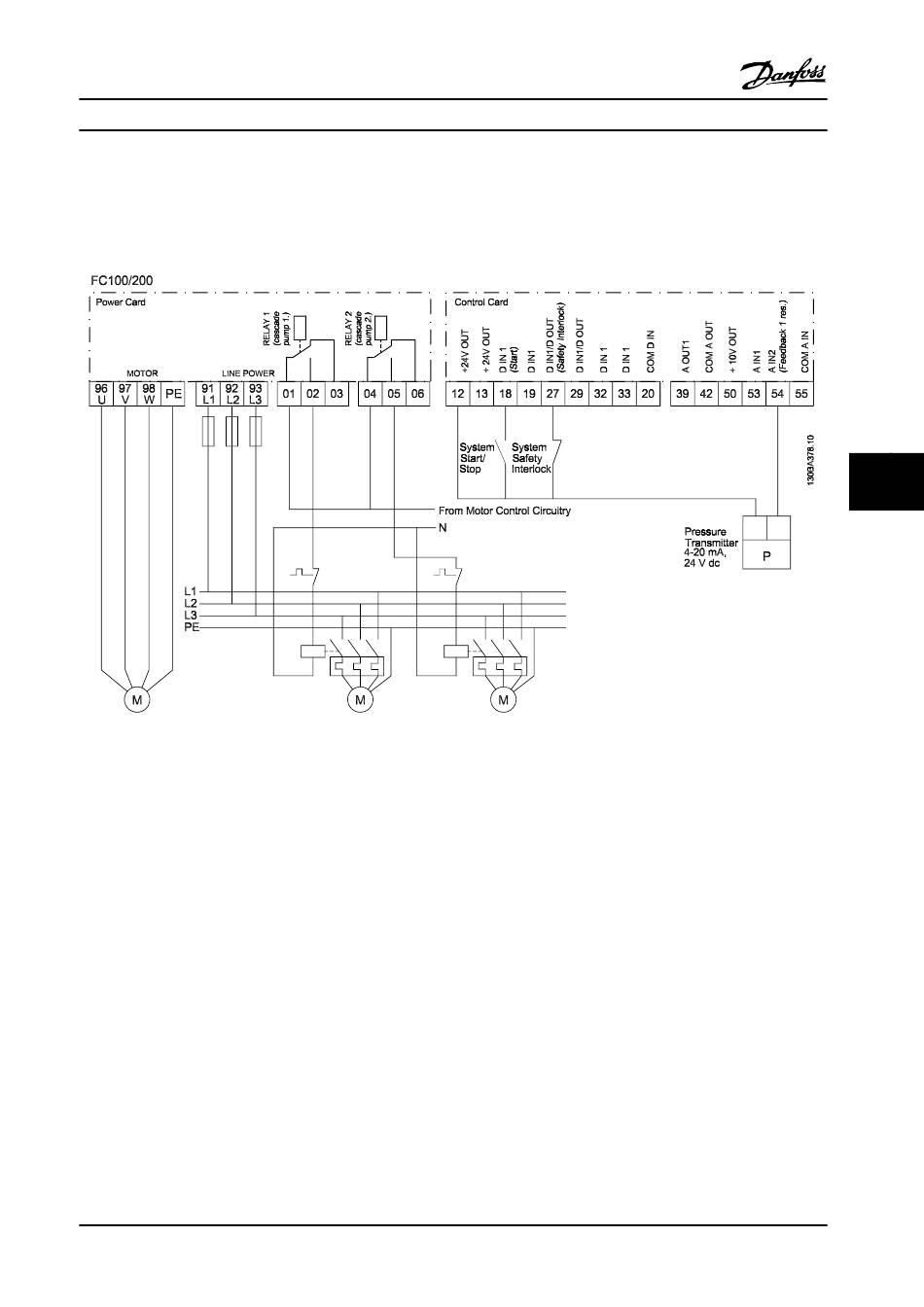

The wiring diagram shows an example with the built-in BASIC Cascade Controller with one variable-speed pump (lead) and
two fixed-speed pumps, a 4–20 mA transmitter and System Safety Interlock.
7
7
Figure 7.11 Cascade Controller Wiring Diagram
MG11BC22
Danfoss A/S © Rev. 06/2014 All rights reserved.
143
