Selection
3 Selection
3
3
3.1 Options and Accessories
Danfoss offers a wide range of options and accessories for
adjustable frequency drives.
3.1.1 Mounting Option Modules in Slot B
Disconnect power to the adjustable frequency drive.
For A2 and A3 enclosure types:
1.
Remove the LCP, the terminal cover, and the LCP
frame from the adjustable frequency drive.
2.
Fit the MCB1xx option card into slot B.
3.
Connect the control cables and fasten the cables
with the enclosed cable strips.
Remove the knockout in the extended LCP frame
delivered in the option set so that the option fits
under the extended LCP frame.
4.
Fit the extended LCP frame and terminal cover.
5.
Fit the LCP or blind cover in the extended LCP
frame.
6.
Connect power to the adjustable frequency drive.
7.
Set up the input/output functions in the
corresponding parameters, as mentioned in
chapter 9.2 General Specifications.
For B1, B2, C1 and C2 enclosure types:
1.
Remove the LCP and the LCP cradle.
2.
Fit the MCB 1xx option card into slot B.
3.
Connect the control cables and fasten the cables
with the enclosed cable strips.
4.
Fit the cradle.
5.
Fit the LCP.
58
Design Guide

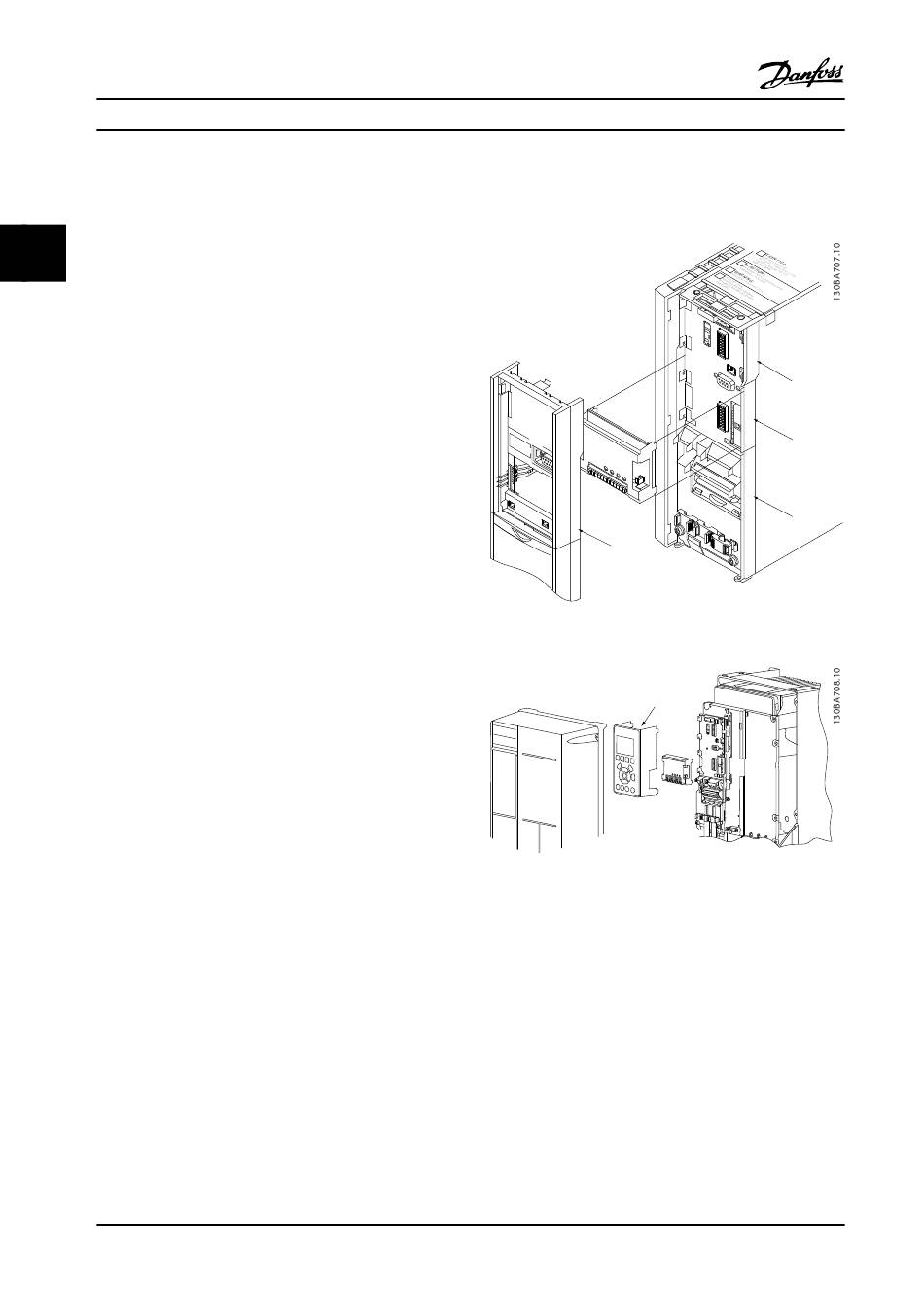

Figure 3.1 A2, A3 and B3 Enclosure Types
Figure 3.2 A5, B1, B2, B4, C1, C2, C3 and C4 Enclosure Types
Danfoss A/S © Rev. 06/2014 All rights reserved.
LCP
Frame
LCP
DC-
Cradle
DC+
6
5
2
MG11BC22
A
B
D
