Electrical Installation

6.5.4 Switches S201, S202, and S801

Switches S201 (A53) and S202 (A54) are used to select a
current (0–20 mA) or a voltage (-10 to 10 V) configuration
of the analog input terminals 53 and 54.
Switch S801 (BUS TER.) can be used to enable termination
on the RS-485 port (terminals 68 and 69).
Default setting
S201 (A53) = OFF (voltage input)
S202 (A54) = OFF (voltage input)
6 6
S801 (Bus termination) = OFF
NOTICE!
When changing the function of S201, S202 or S801, be
careful not to force the switch over. Removing the LCP
fixture (cradle) when operating the switches is
recommended. The switches must not be operated while
the adjustable frequency drive is powered.

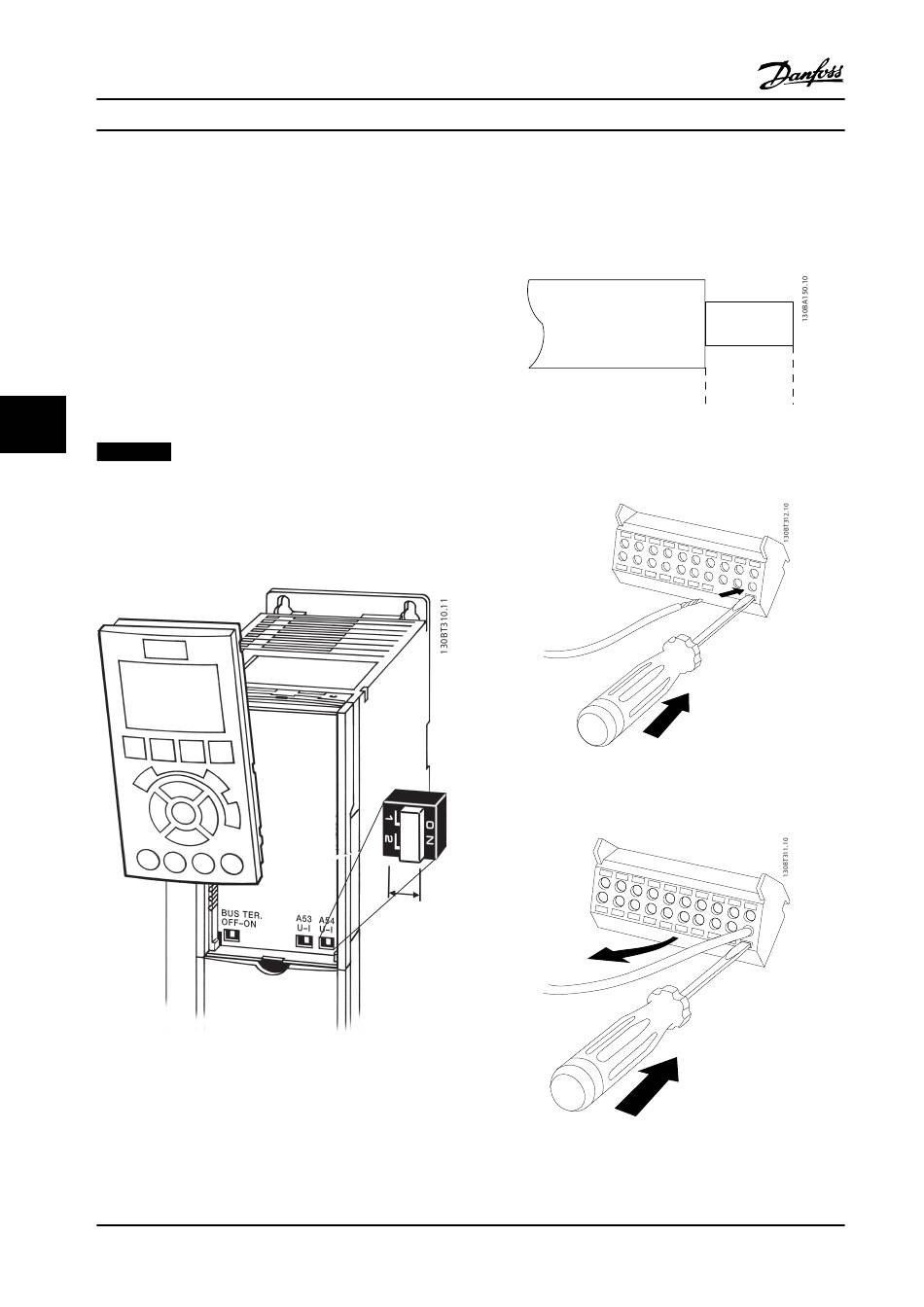

Figure 6.49 Location of S201, S202 and S801 Switches
122
Design Guide
6.5.5 Electrical Installation, Control
To mount the cable to the terminal
Figure 6.50 Strip Cable
Figure 6.51 Insert Screwdriver
Figure 6.52 Insert Cable
Danfoss A/S © Rev. 06/2014 All rights reserved.
Terminals
1. Strip insulation of 0.34–0.39 in [9–10 mm].
2. 1)
Insert a screwdriver in the square hole.
3. Insert the cable in the adjacent circular hole.
9 - 10 mm
(0.37 in)
