Electrical Installation

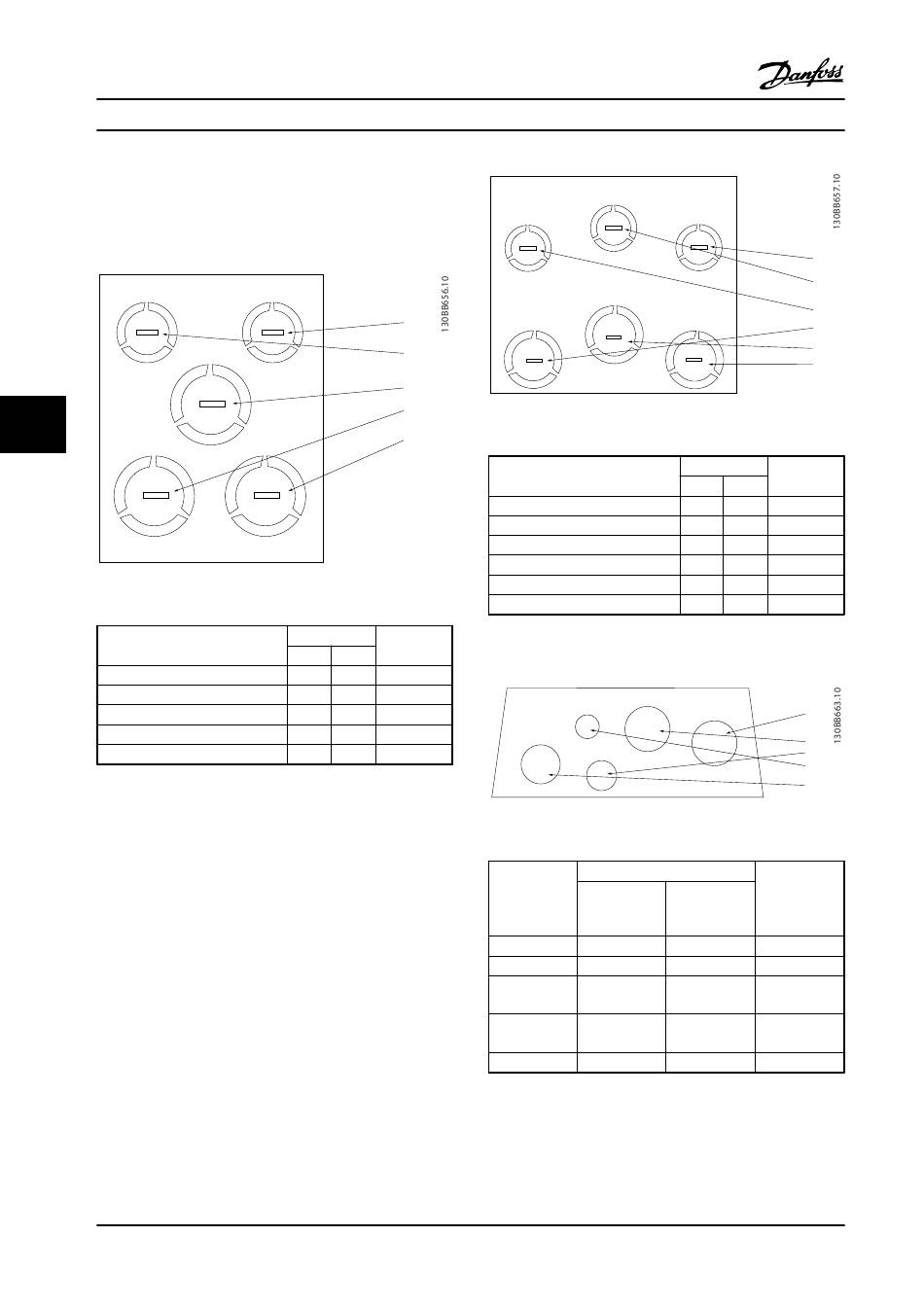

Cable entry holes
The suggested use of the holes are purely recommen-
dations, and other solutions are possible. Unused cable
entry holes can be sealed with rubber grommets (for IP21).
* Tolerance ± 0.007 in [0.2 mm]
6 6
Figure 6.21 A2 - IP21
Hole number and recommended
use
1) Line power
2) Motor
3) Brake/Load S
4) Control Cable
5) Control Cable
Table 6.3 Legend to Figure 6.21
± 0.007 in [0.2 mm]
1) Tolerance
100
Design Guide
[4]
[5]
[1]
[3]
[2]
1)
Dimensions Nearest
metric
UL [in] [mm]
3/4 28.4 M25
3/4 28.4 M25
3/4 28.4 M25
1/2 22.5 M20
1/2 22.5 M20
