1.1.1 Definitions
Adjustable Frequency Drive:
I
VLT,MAX
The maximum output current.
I
VLT,N
The rated output current supplied by the adjustable
frequency drive.
U
VLT, MAX
The maximum output voltage.
Input:
Control command Group 1 Reset, Coasting stop, Reset
Start and stop the
connected motor with
the LCP or the digital
inputs.
Group 2 Start, Pulse start, Reversing,
Functions are divided
into two groups.
Functions in group 1
have higher priority
than functions in
group 2.
Table 1.4 Function Groups
Motor:
f
JOG
The motor frequency when the jog function is activated
(via digital terminals).
f
M
The motor frequency.
f
MAX
The maximum motor frequency.
f
MIN
The minimum motor frequency.
f
M,N
The rated motor frequency (nameplate data).
I
M
The motor current.
I
M,N
The rated motor current (nameplate data).
n
M,N
The rated motor speed (nameplate data).
P
M,N
The rated motor power (nameplate data).
MG11BC22
Design Guide
and Coasting stop, Quick
stop, DC braking, Stop and
the "Off" key
Start reversing, Jog and
Freeze output
Danfoss A/S © Rev. 06/2014 All rights reserved.
T
M,N
The rated torque (motor).
U
M
The instantaneous motor voltage.
U
M,N
The rated motor voltage (nameplate data).
Break-away torque
Torque

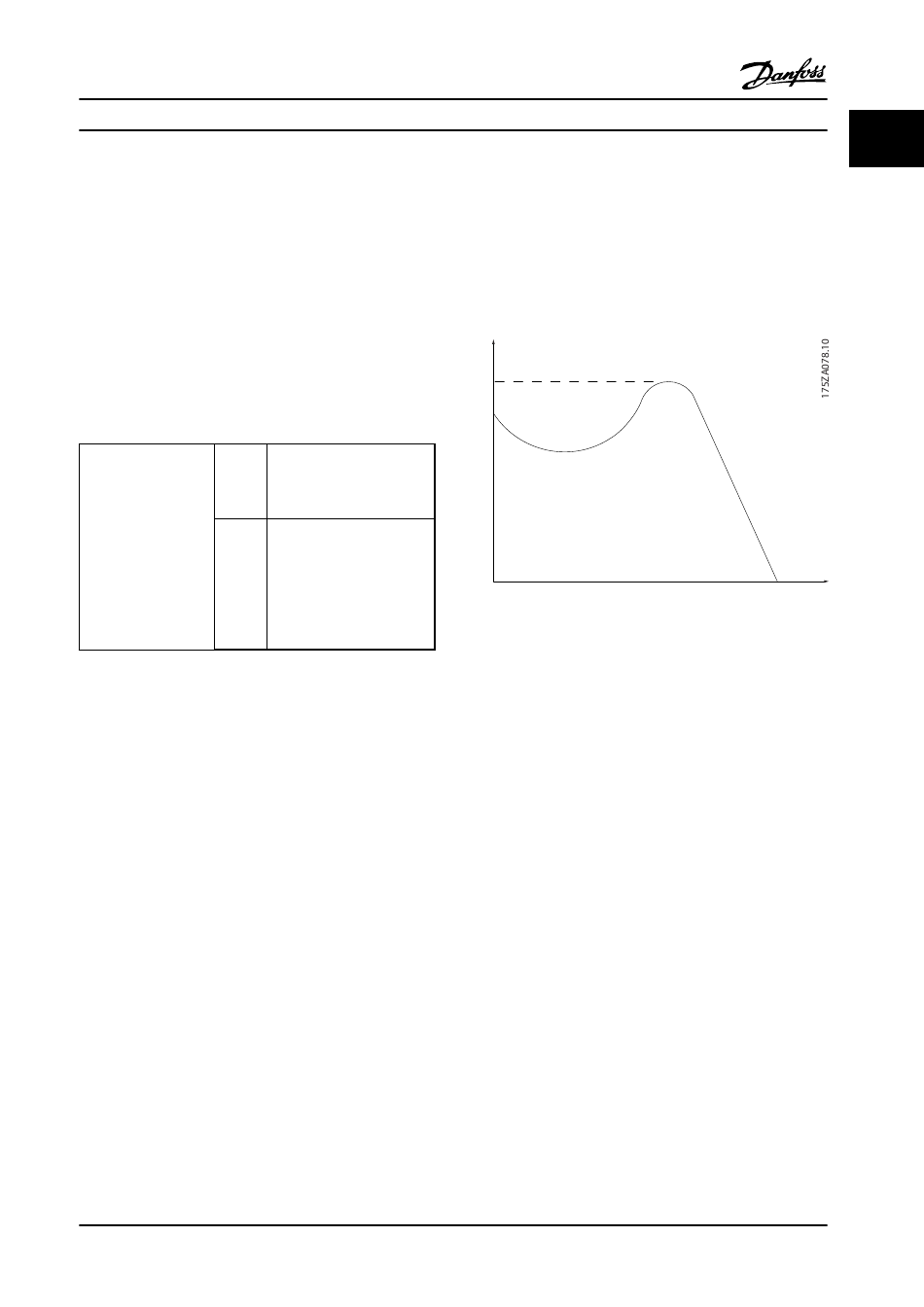

Figure 1.1 Break-away Torque
η
VLT
The efficiency of the adjustable frequency drive is defined
as the ratio between the power output and the power
input.
Start-disable command
A stop command belonging to the group 1 control
commands - see Table 1.4.
Stop command
See Control commands.
References:
Analog Reference
A signal transmitted to the analog inputs 53 or 54, can be
voltage or current.
Bus Reference
A signal transmitted to the serial communication port (FC
port).
Preset Reference
A defined preset reference to be set from -100% to +100%
of the reference range. Selection of eight preset references
via the digital terminals.
Pulse Reference
A pulse frequency signal transmitted to the digital inputs
(terminal 29 or 33).
Pull-out
rpm
