Electrical Installation
4. Remove the screwdriver. The cable is now
mounted to the terminal.
Figure 6.53 Remove Screwdriver
To remove the cable from the terminal
1.
1)
Insert a screwdriver
2. Pull out the cable.
1) Max. 0.4 x 2.5 mm

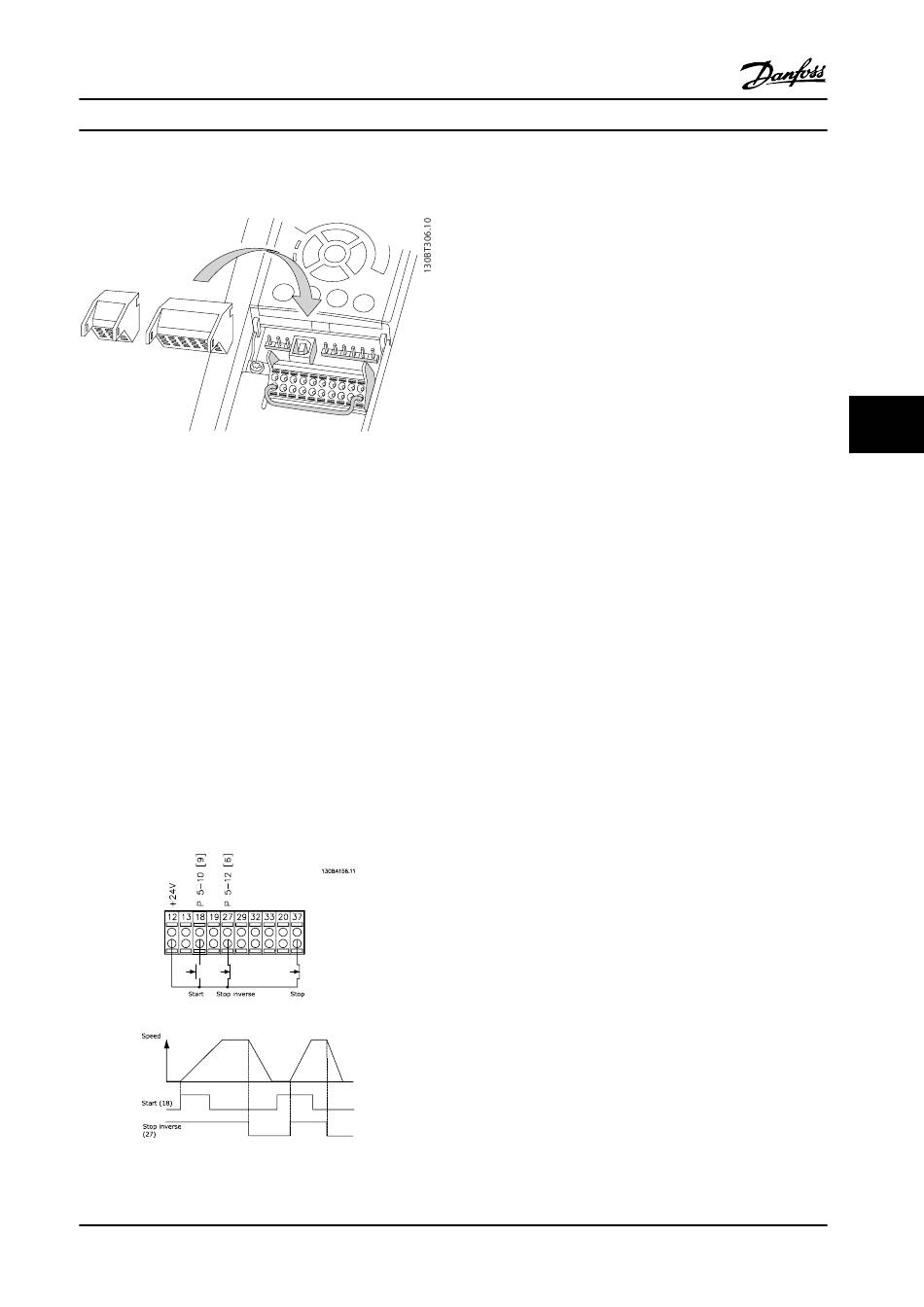

6.5.6 Basic Wiring Example

1. Mount terminals from the accessory bag to the
front of the adjustable frequency drive.
2. Connect terminals 18 and 27 to +24 V
(terminal 12/13).
Default settings
18 = Start, 5-10 Terminal 18 Digital Input [9]
27 = Stop inverse, 5-12 Terminal 27 Digital Input [6]
37 = Safe Torque Off inverse
Figure 6.54 Basic Wiring
MG11BC22
Design Guide
in the square hole.
Danfoss A/S © Rev. 06/2014 All rights reserved.
6 6
123
