Selection
B
D
E

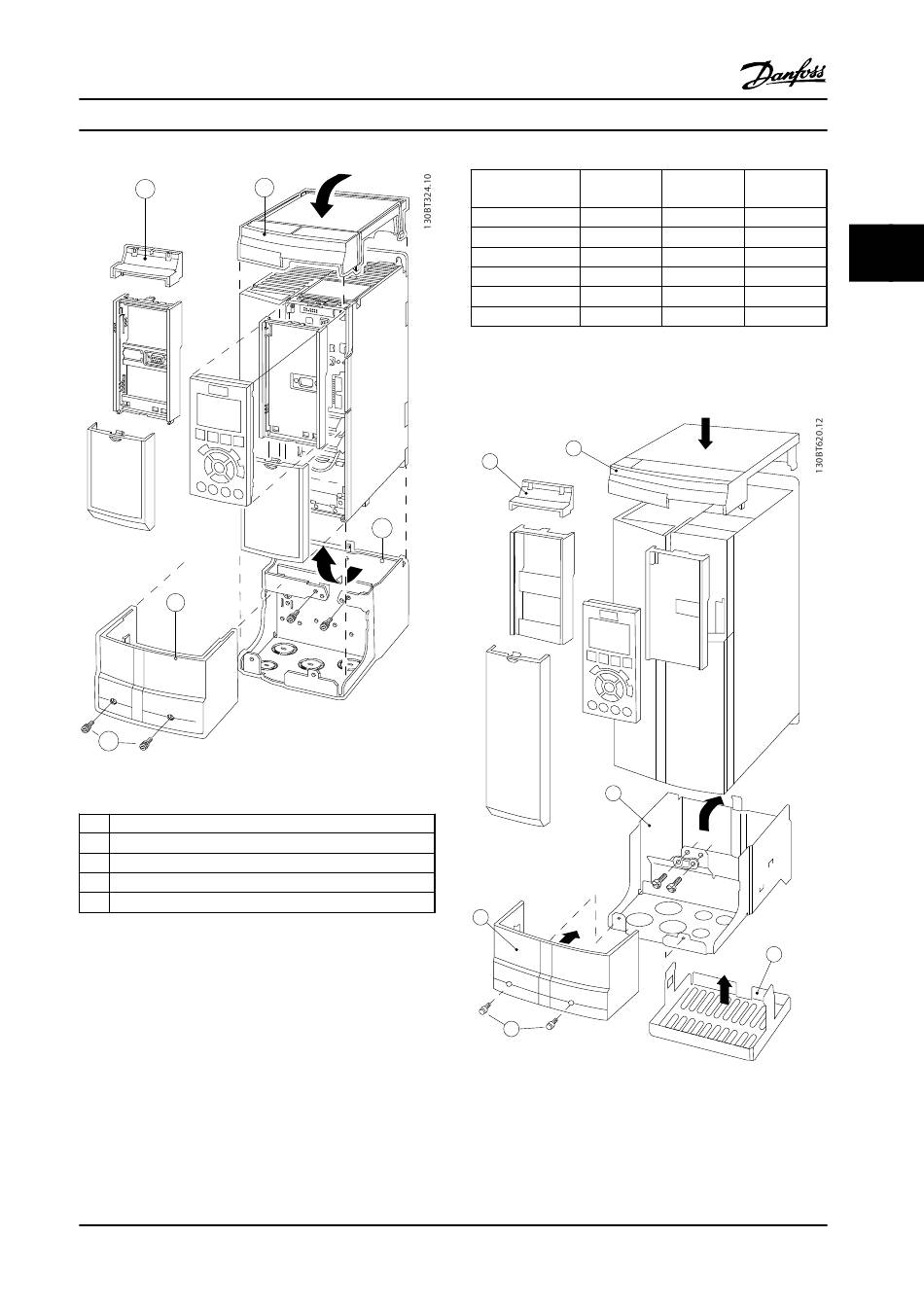

Figure 3.20 Enclosure Type A3
A Top cover
B Brim
C Base part
D Base cover
E Screw(s)
Table 3.12 Legend to Figure 3.19 and Figure 3.20
Place the top cover as shown. If an A or B option is used,
the brim must be fitted to cover the top inlet. Place the
base part C at the bottom of the adjustable frequency
drive and use the clamps from the accessory bag to
correctly fasten the cables. Holes for cable connectors:
Size A2: 2x M25 and 3xM32
Size A3: 3xM25 and 3xM32
MG11BC22
Design Guide
A
C
Danfoss A/S © Rev. 06/2014 All rights reserved.
Height A
Enclosure type
(in [mm])
A2 14.65 [372]
A3 14.65 [372]
B3 18.7 [475]
B4 26.38 [670]
C3 29.72 [755]
C4 37.4 [950]
Table 3.13 Dimensions
* If option A/B is used, the depth increases
(see chapter 5.1.2 Mechanical Dimensions for details)
A
B
C
D
E
Figure 3.21 Enclosure Type B3
Width B Depth C*
(in [mm]) (in [mm])
3.54 [90] 8.07 [205]
5.12 [130] 8.07 [205]
6.5 [165] 9.8 [249]
10.04 [255] 9.69 [246]
12.95 [329] 13.27 [337]
15.39 [391] 13.27 [337]
F
