Electrical Installation

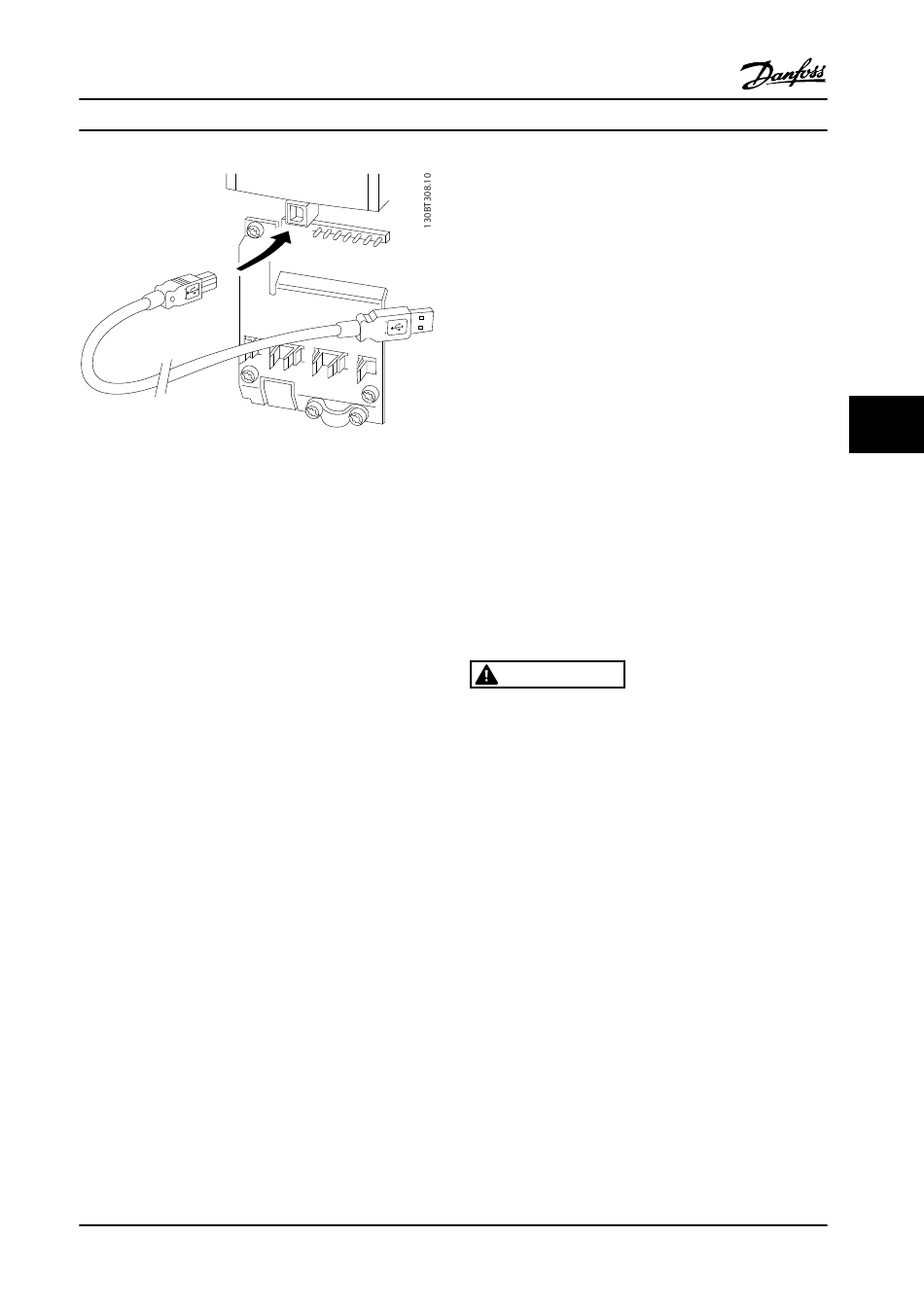

Figure 6.60 USB Connection

6.6.5 PC Software

Data storage in PC via MCT 10 Set-up Software
1. Connect a PC to the unit via the USB COM port.
2. Open MCT 10 Set-up Software.
3. Select the USB port in the network section.
4. Select copy.
5. Select the project section.
6. Select paste.
7. Select Save as.
All parameters are now stored.
Data transfer from PC to adjustable frequency drive via
MCT 10 Set-up Software
1. Connect a PC to the unit via the USB COM port.
2. Open MCT 10 Set-up Software.
3. Select Open – stored files are shown.
4. Open the appropriate file.
5. Select Write to drive.
All parameters are now transferred to the adjustable
frequency drive.
A separate manual for MCT 10 Set-up Software is available.
MG11BC22
Design Guide

6.6.6 MCT 31

The MCT 31 harmonic calculation PC tool enables easy
estimation of the harmonic distortion in a given
application. Both the harmonic distortion of Danfoss
adjustable frequency drives as well as non-Danfoss
adjustable frequency drives with additional harmonic
reduction devices, such as Danfoss AHF filters and
12-18-pulse rectifiers, can be calculated.
Ordering number:
Order the CD containing the MCT 31 PC tool using code
number 130B1031.
MCT 31 can also be downloaded from www.danfoss.com/
BusinessAreas/DrivesSolutions/Softwaredownload/.

6.7 Safety

6.7.1 High Voltage Test

Carry out a high voltage test by short-circuiting terminals
U, V, W, L
380–500 V adjustable frequency drives and 2.525 kV DC for
525–690 V adjustable frequency drives for one second
between this short-circuit and the chassis.
WARNING
When running high voltage tests of the entire instal-
lation, interrupt line power and the motor connection if
the leakage currents are too high.

6.7.2 Grounding

The following basic issues need to be considered when
installing an adjustable frequency drive, so as to obtain
electromagnetic compatibility (EMC).
•
•
Danfoss A/S © Rev. 06/2014 All rights reserved.
, L and L . Energize maximum 2.15 kV DC for
1 2 3
Safety grounding: The adjustable frequency drive
has a high leakage current and must be
grounded appropriately for safety reasons. Apply
local safety regulations.
High-frequency grounding: Keep the ground wire
connections as short as possible.
6 6
