ommunication and control signal connections

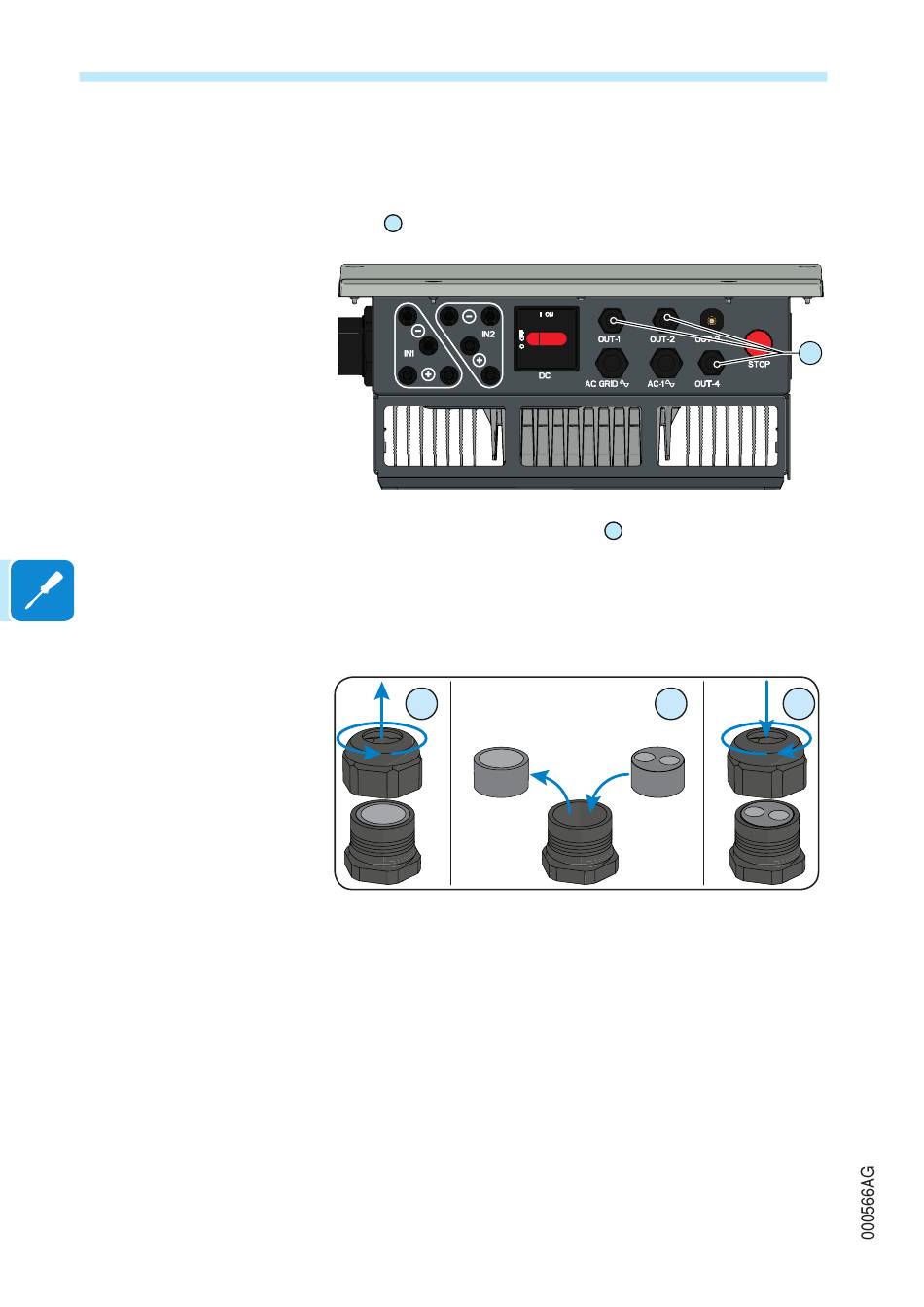

Each communication and control service cable that must be connected
inside the REACT-UNO must pass through one of the four service cable
51
glands available, named OUT-1, OUT-2, OUT-3 and OUT-4.
51
51
They are M20 service cable glands and can take a cable with
a diameter of 7 mm to 13 mm.
Two-hole gaskets are supplied to be inserted into the cable gland, which
allow two separate cables with cross-section of up to 5 mm to pass
through.
A B C
