Meter
Battery
> Settings
> General
Password 0000
> Settings
> Meter model
Password 0000
> Meter Address
> Battery Model
> Meter com
> Battery Packs
> Info
> Info
> Type
> Nom. Cap
> Part No.
> Measures
> Serial No.
> Ibat
> FW Rel.
> Vbat
> Measures
> Pbat
> Voltage
> RE
> Active Power
> SOC
> Line current
> SOH
> Load current
> RT
> Frequency
> Pack 1
> Statistics
> Energy dischar.
> E-day
> E-7d
> E-30d
> E-365
> E-tot
> Settings
Password 0000
> Pack 1 enable
> Smoke Sensor
> Info
> Device Name
> Serial No.
> FW Rel.
> Nom. Capacity
> Init. Capacity
> Status
> Warning
> Alarms
> Measures
> Ibat
> Vbat
> Pbat
> Tbat
> FCC
> RC
> RE
> TED
> SOC
> SOH
> TUT
> TDT
> RT
> CC

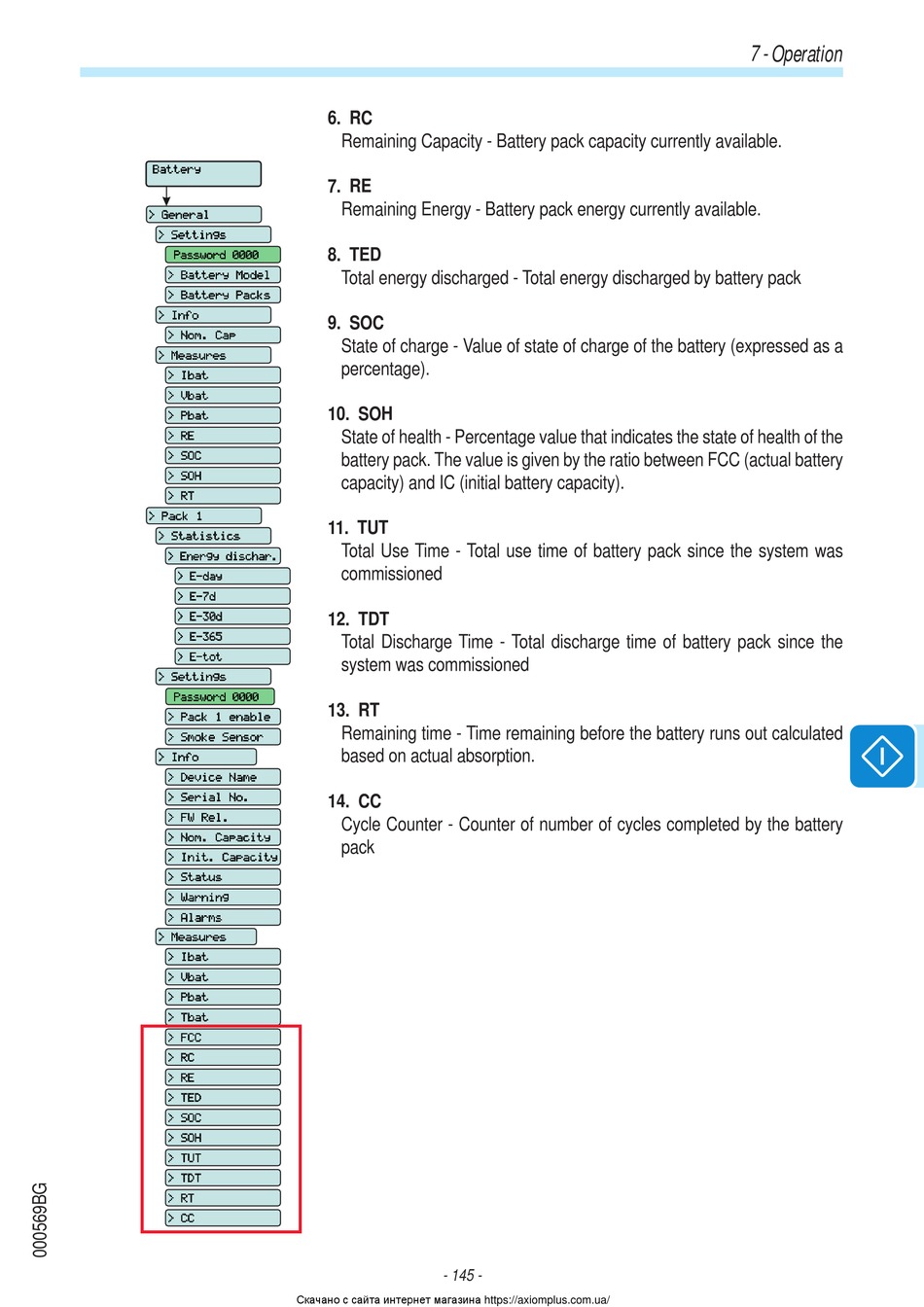

6. RC
Remaining Capacity - Battery pack capacity currently available.
****
Load Manager
WIFI Logger
7. RE
Remaining Energy - Battery pack energy currently available.
> info
> Settings
> Relay Status
> Restore AP
8. TED
> Info
> Part No.
Total energy discharged - Total energy discharged by battery pack
> Serial No.
> View IP
9. SOC
> View Mode
State of charge - Value of state of charge of the battery (expressed as a
percentage).
10. SOH
State of health - Percentage value that indicates the state of health of the
battery pack. The value is given by the ratio between FCC (actual battery
capacity) and IC (initial battery capacity).
11. TUT
Total Use Time - Total use time of battery pack since the system was
commissioned
12. TDT
Total Discharge Time - Total discharge time of battery pack since the
system was commissioned
13. RT
Remaining time - Time remaining before the battery runs out calculated
based on actual absorption.
14. CC
Cycle Counter - Counter of number of cycles completed by the battery
pack
- 145 -
