6 - Instruments

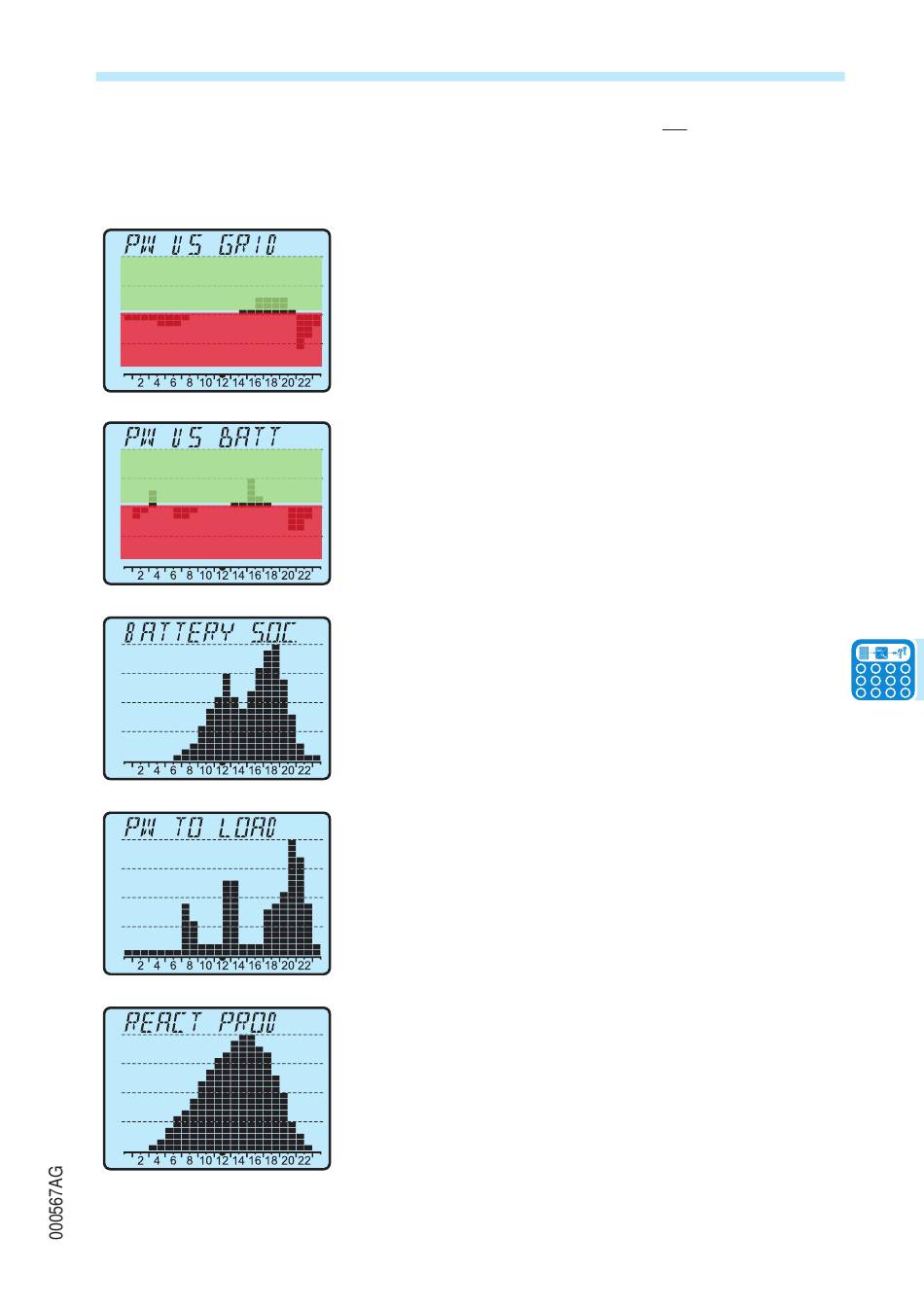

The display has a graphics area (summary) b11 where it is possible to
graphically represent one of the parameters monitored by the system.
The type of graphic to be viewed can be selected through display menus
(Display→Settings→Power Graph)
- Graphic "PW Vs GRID"
This diagram shows the energy drawn (area highlighted in red) or fed into
the grid (area highlighted in green).
Each dot represents a value of 500Wh (full scale ±5KWh) of average
energy.
The time scale is 24 hours in 1 hour intervals
- Graphic "PW Vs BATT"
This diagram shows the energy discharged (area highlighted in red) or
charged (area highlighted in green) by the battery.
Each dot represents 300Wh (full scale ±3KWh) of average energy.
The time scale is 24 hours in 1 hour intervals
- Diagram "BATTERY SOC"
This diagram shows the state of charge of the battery.
Each dot represents 5% (full scale 100%).
The time scale is 24 hours in 1 hour intervals
- Diagram "PW TO LOAD"
This diagram shows the energy used to fulfil the request from domestic
loads.
Each dot represents a value of 250Wh (full scale 5KWh) of average
energy.
The time scale is 24 hours in 1 hour intervals
- Diagram "REACT PROD"
This diagram shows the total energy production of the system.
Each dot represents 300Wh (full scale 6KWh) of average energy.
The time scale is 24 hours in 1 hour intervals
The 5 types of diagram can be displayed cyclically on the display by
selecting the "Auto" mode (menu Display→Settings→Power Graph).
- 105 -
