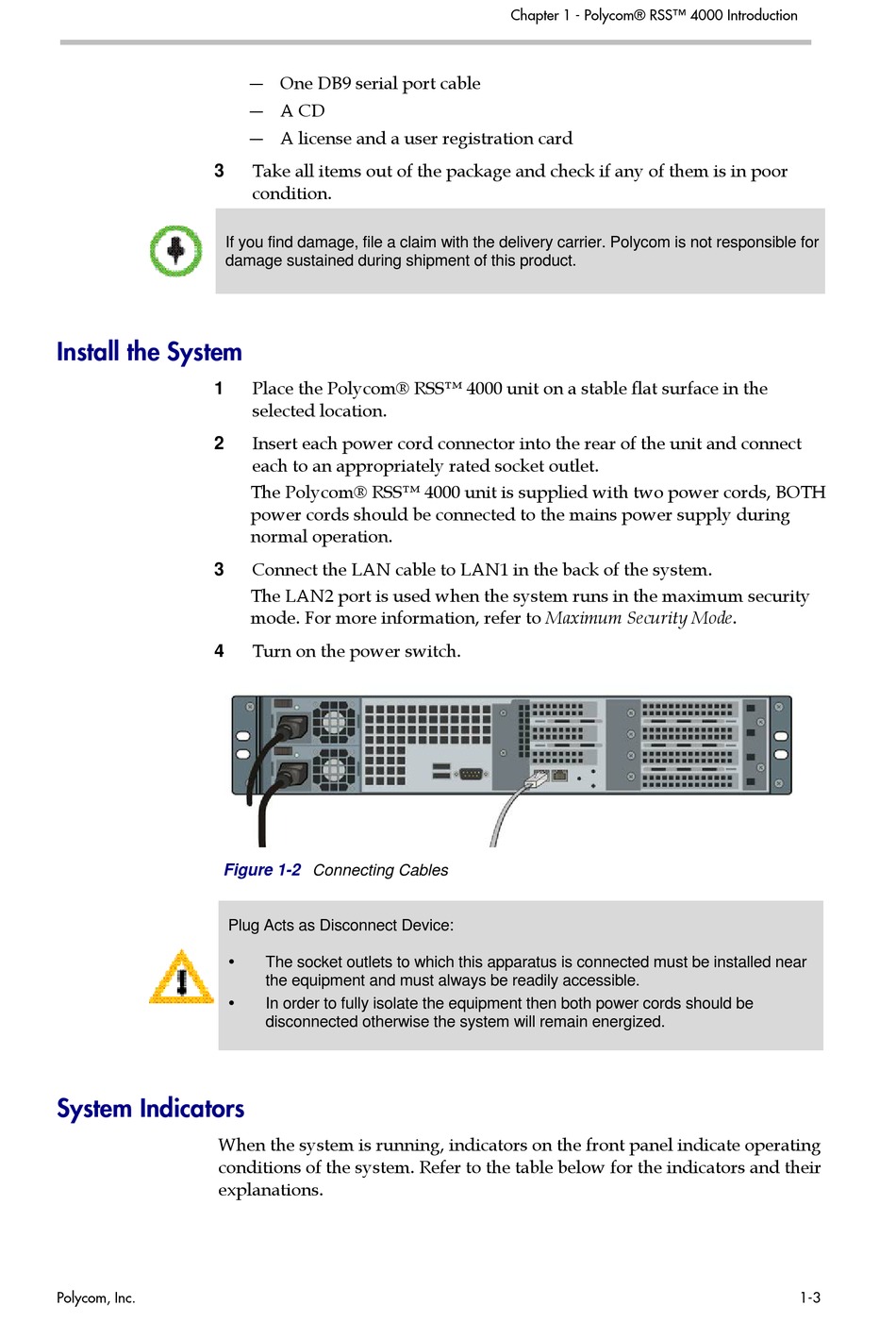

Install the System

1
2
3
4
Figure 1-2

System Indicators

When the system is running, indicators on the front panel indicate operating
conditions of the system. Refer to the table below for the indicators and their
explanations.
Polycom, Inc.
― One DB9 serial port cable
― A CD
― A license and a user registration card
Take all items out of the package and check if any of them is in poor
condition.
If you find damage, file a claim with the delivery carrier. Polycom is not responsible for
damage sustained during shipment of this product.
Place the Polycom® RSS™ 4000 unit on a stable flat surface in the
selected location.
Insert each power cord connector into the rear of the unit and connect
each to an appropriately rated socket outlet.
The Polycom® RSS™ 4000 unit is supplied with two power cords, BOTH
power cords should be connected to the mains power supply during
normal operation.
Connect the LAN cable to LAN1 in the back of the system.
The LAN2 port is used when the system runs in the maximum security
mode. For more information, refer to Maximum Security Mode.
Turn on the power switch.
Connecting Cables
Plug Acts as Disconnect Device:

The socket outlets to which this apparatus is connected must be installed near
the equipment and must always be readily accessible.

In order to fully isolate the equipment then both power cords should be
disconnected otherwise the system will remain energized.
