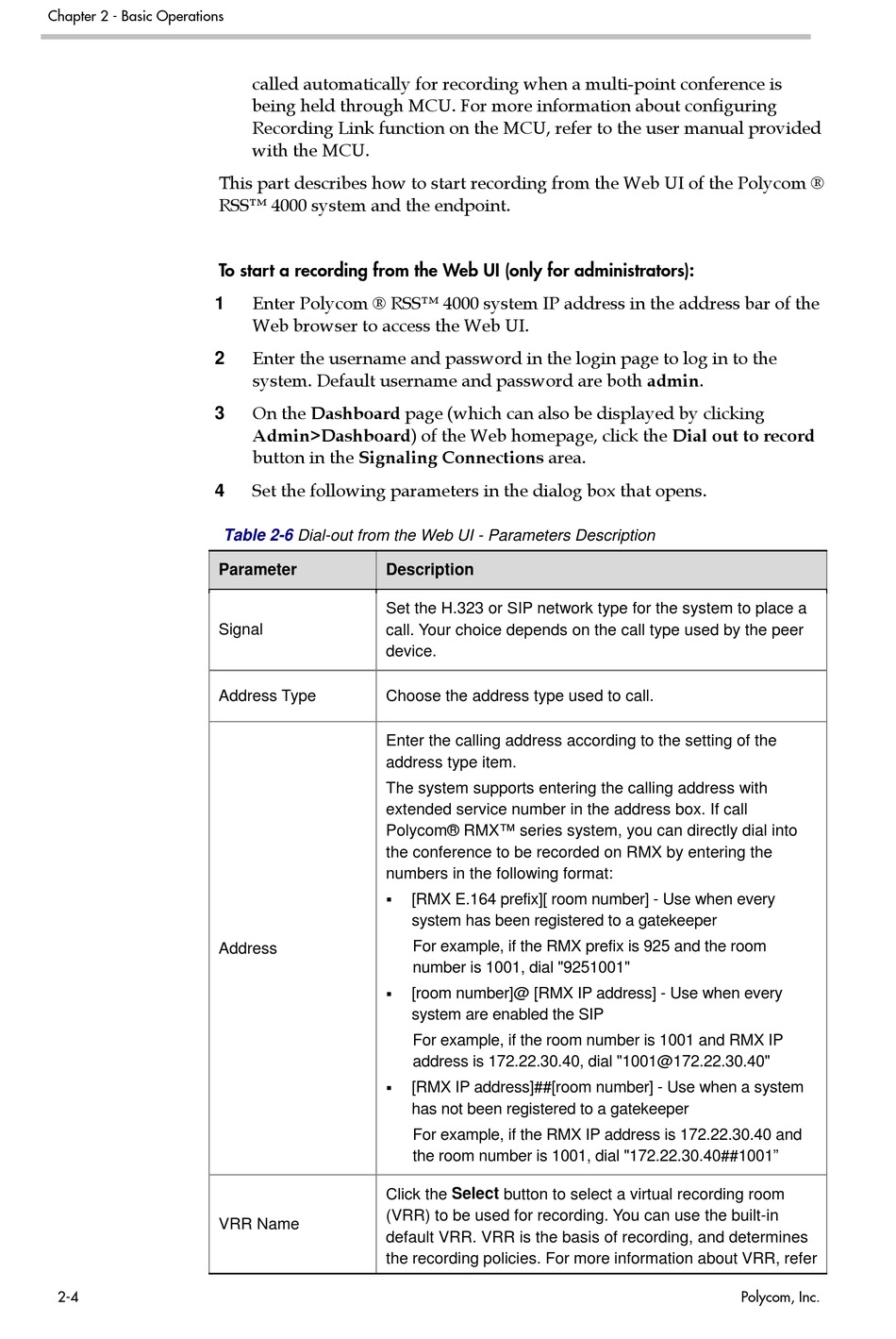

Polycom RSS 4000 User Manual page 20

Chapter 2 - Basic Operations
1
2
3
4
2-4
called automatically for recording when a multi-point conference is
being held through MCU. For more information about configuring
Recording Link function on the MCU, refer to the user manual provided
with the MCU.
This part describes how to start recording from the Web UI of the Polycom ®
RSS™ 4000 system and the endpoint.
To start a recording from the Web UI (only for administrators):
Enter Polycom ® RSS™ 4000 system IP address in the address bar of the
Web browser to access the Web UI.
Enter the username and password in the login page to log in to the
system. Default username and password are both admin.
On the Dashboard page (which can also be displayed by clicking
Admin>Dashboard) of the Web homepage, click the Dial out to record
button in the Signaling Connections area.
Set the following parameters in the dialog box that opens.
Table 2-6 Dial-out from the Web UI - Parameters Description
Parameter Description
Set the H.323 or SIP network type for the system to place a
Signal call. Your choice depends on the call type used by the peer
device.
Address Type Choose the address type used to call.
Enter the calling address according to the setting of the
address type item.
The system supports entering the calling address with
extended service number in the address box. If call
Polycom® RMX™ series system, you can directly dial into
the conference to be recorded on RMX by entering the
numbers in the following format:

Address


Click the Select button to select a virtual recording room
(VRR) to be used for recording. You can use the built-in
VRR Name
default VRR. VRR is the basis of recording, and determines
the recording policies. For more information about VRR, refer
[RMX E.164 prefix][ room number] - Use when every
system has been registered to a gatekeeper
For example, if the RMX prefix is 925 and the room
number is 1001, dial "9251001"
[room number]@ [RMX IP address] - Use when every
system are enabled the SIP
For example, if the room number is 1001 and RMX IP
address is 172.22.30.40, dial "1001@172.22.30.40"
[RMX IP address]##[room number] - Use when a system
has not been registered to a gatekeeper
For example, if the RMX IP address is 172.22.30.40 and
the room number is 1001, dial "172.22.30.40##1001"
Polycom, Inc.
