Chapter 4 - Administrator Configuration
1
2
3
4-2

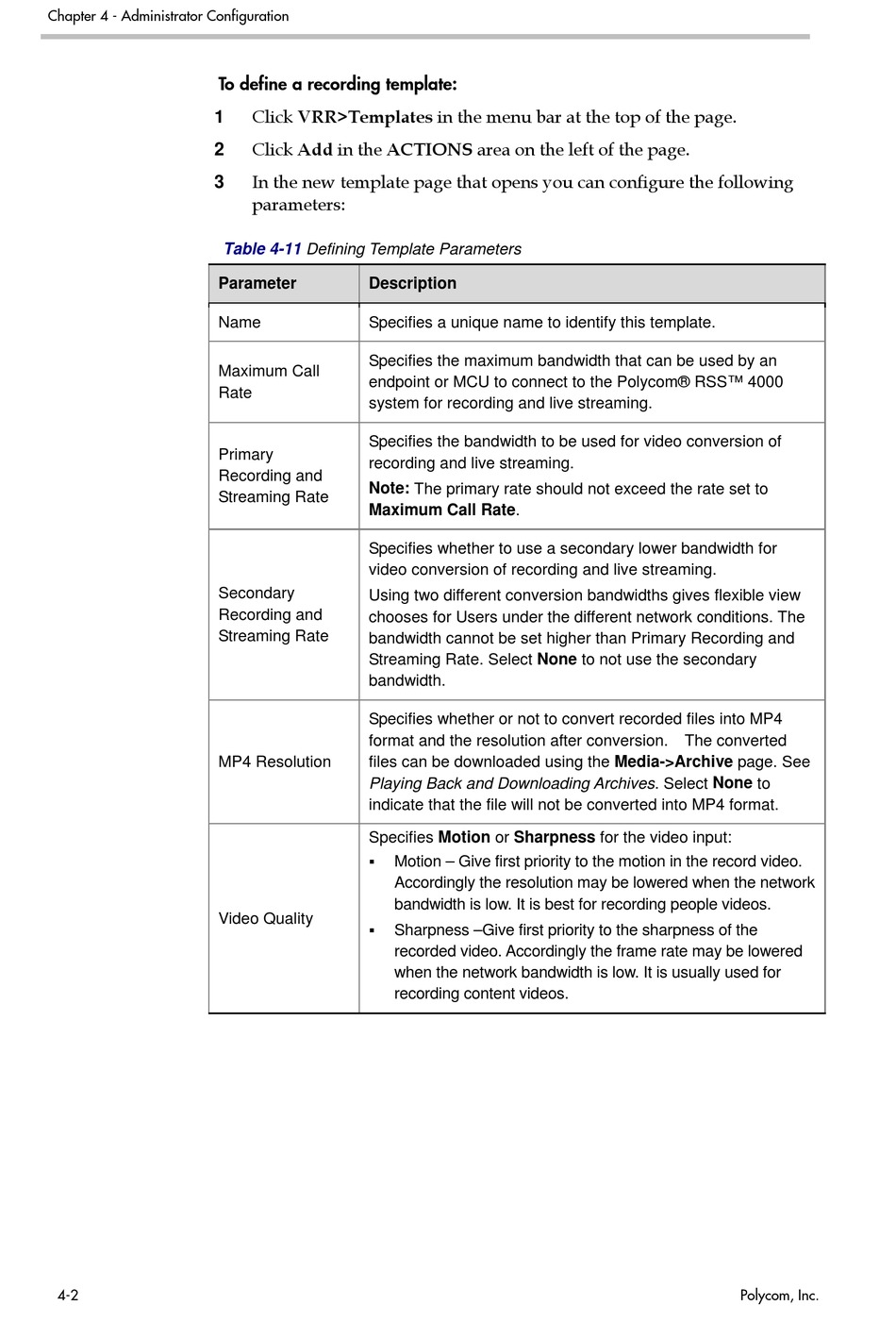

To define a recording template:
Click VRR>Templates in the menu bar at the top of the page.
Click Add in the ACTIONS area on the left of the page.
In the new template page that opens you can configure the following
parameters:
Table 4-11 Defining Template Parameters
Parameter Description
Name Specifies a unique name to identify this template.
Specifies the maximum bandwidth that can be used by an
Maximum Call
endpoint or MCU to connect to the Polycom® RSS™ 4000
Rate
system for recording and live streaming.
Specifies the bandwidth to be used for video conversion of
Primary
recording and live streaming.
Recording and
Note: The primary rate should not exceed the rate set to
Streaming Rate
Maximum Call Rate.
Specifies whether to use a secondary lower bandwidth for
video conversion of recording and live streaming.
Secondary
Using two different conversion bandwidths gives flexible view
Recording and
chooses for Users under the different network conditions. The
Streaming Rate
bandwidth cannot be set higher than Primary Recording and
Streaming Rate. Select None to not use the secondary
bandwidth.
Specifies whether or not to convert recorded files into MP4
format and the resolution after conversion. The converted
MP4 Resolution files can be downloaded using the Media->Archive page. See
Playing Back and Downloading Archives. Select None to
indicate that the file will not be converted into MP4 format.
Specifies Motion or Sharpness for the video input:

Video Quality

Motion – Give first priority to the motion in the record video.
Accordingly the resolution may be lowered when the network
bandwidth is low. It is best for recording people videos.
Sharpness –Give first priority to the sharpness of the
recorded video. Accordingly the frame rate may be lowered
when the network bandwidth is low. It is usually used for
recording content videos.
Polycom, Inc.
