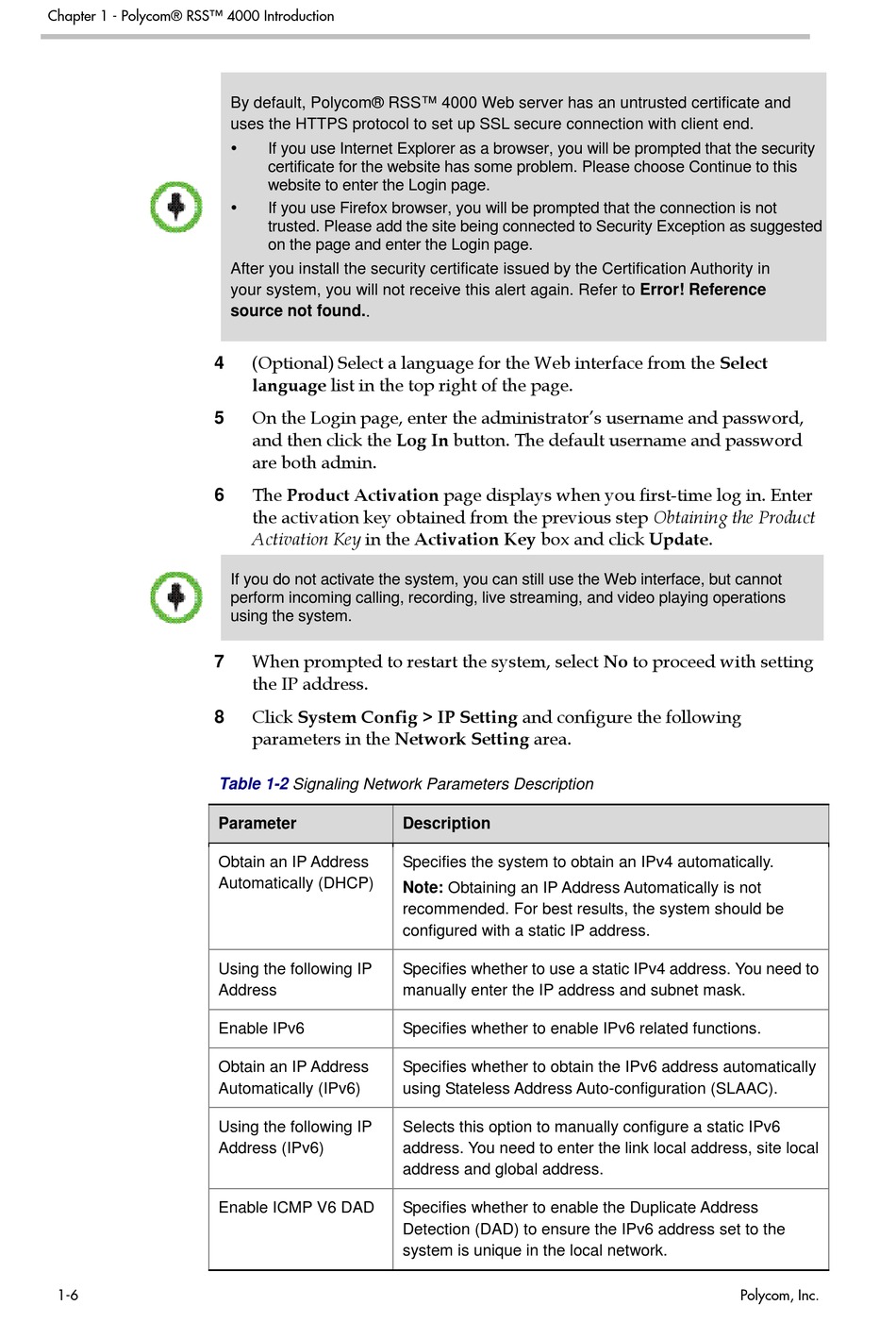

Polycom RSS 4000 User Manual page 12

Chapter 1 - Polycom® RSS™ 4000 Introduction
4
5
6
7
8
1-6
By default, Polycom® RSS™ 4000 Web server has an untrusted certificate and
uses the HTTPS protocol to set up SSL secure connection with client end.

If you use Internet Explorer as a browser, you will be prompted that the security
certificate for the website has some problem. Please choose Continue to this
website to enter the Login page.

If you use Firefox browser, you will be prompted that the connection is not
trusted. Please add the site being connected to Security Exception as suggested
on the page and enter the Login page.
After you install the security certificate issued by the Certification Authority in
your system, you will not receive this alert again. Refer to Error! Reference
source not found..
(Optional) Select a language for the Web interface from the Select
language list in the top right of the page.
On the Login page, enter the administrator's username and password,
and then click the Log In button. The default username and password
are both admin.
The Product Activation page displays when you first-time log in. Enter
the activation key obtained from the previous step Obtaining the Product
Activation Key in the Activation Key box and click Update.
If you do not activate the system, you can still use the Web interface, but cannot
perform incoming calling, recording, live streaming, and video playing operations
using the system.
When prompted to restart the system, select No to proceed with setting
the IP address.
Click System Config > IP Setting and configure the following
parameters in the Network Setting area.
Table 1-2 Signaling Network Parameters Description
Parameter
Obtain an IP Address
Automatically (DHCP)
Using the following IP
Address
Enable IPv6
Obtain an IP Address
Automatically (IPv6)
Using the following IP
Address (IPv6)
Enable ICMP V6 DAD
Description
Specifies the system to obtain an IPv4 automatically.
Note: Obtaining an IP Address Automatically is not
recommended. For best results, the system should be
configured with a static IP address.
Specifies whether to use a static IPv4 address. You need to
manually enter the IP address and subnet mask.
Specifies whether to enable IPv6 related functions.
Specifies whether to obtain the IPv6 address automatically
using Stateless Address Auto-configuration (SLAAC).
Selects this option to manually configure a static IPv6
address. You need to enter the link local address, site local
address and global address.
Specifies whether to enable the Duplicate Address
Detection (DAD) to ensure the IPv6 address set to the
system is unique in the local network.
