Table 4-13
Multipoint Live Streaming Properties
Recording Live Streaming
Resolution Resolution
(People Video) (WMA File)
CIF / 4CIF / CIF / 4CIF /
720P 720p
30fps 30fps
1080p 30fps/ 720p 30fps
720p 60fps

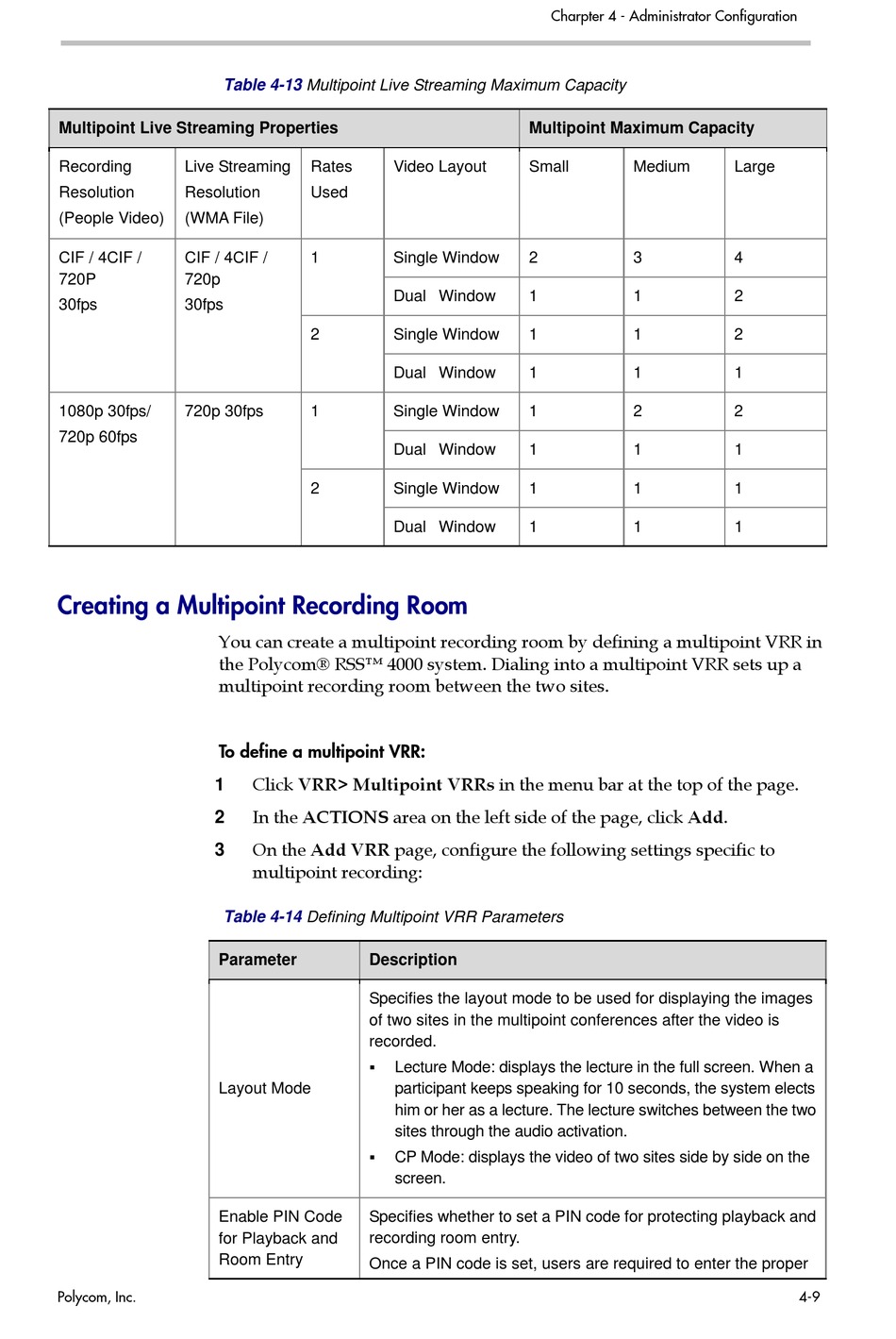

Creating a Multipoint Recording Room

You can create a multipoint recording room by defining a multipoint VRR in
the Polycom® RSS™ 4000 system. Dialing into a multipoint VRR sets up a
multipoint recording room between the two sites.
To define a multipoint VRR:
1
2
3
Table 4-14
Parameter
Layout Mode
Enable PIN Code
for Playback and
Room Entry
Polycom, Inc.
Multipoint Live Streaming Maximum Capacity
Rates Video Layout
Used
1 Single Window
Dual Window
2 Single Window
Dual Window
1 Single Window
Dual Window
2 Single Window
Dual Window
Click VRR> Multipoint VRRs in the menu bar at the top of the page.
In the ACTIONS area on the left side of the page, click Add.
On the Add VRR page, configure the following settings specific to
multipoint recording:
Defining Multipoint VRR Parameters
Description
Specifies the layout mode to be used for displaying the images
of two sites in the multipoint conferences after the video is
recorded.

Lecture Mode: displays the lecture in the full screen. When a
participant keeps speaking for 10 seconds, the system elects
him or her as a lecture. The lecture switches between the two
sites through the audio activation.

CP Mode: displays the video of two sites side by side on the
screen.
Specifies whether to set a PIN code for protecting playback and
recording room entry.
Once a PIN code is set, users are required to enter the proper
Charpter 4 - Administrator Configuration
Multipoint Maximum Capacity
Small Medium
2 3
1 1
1 1
1 1
1 2
1 1
1 1
1 1
Large
4
2
2
1
2
1
1
1
4-9
