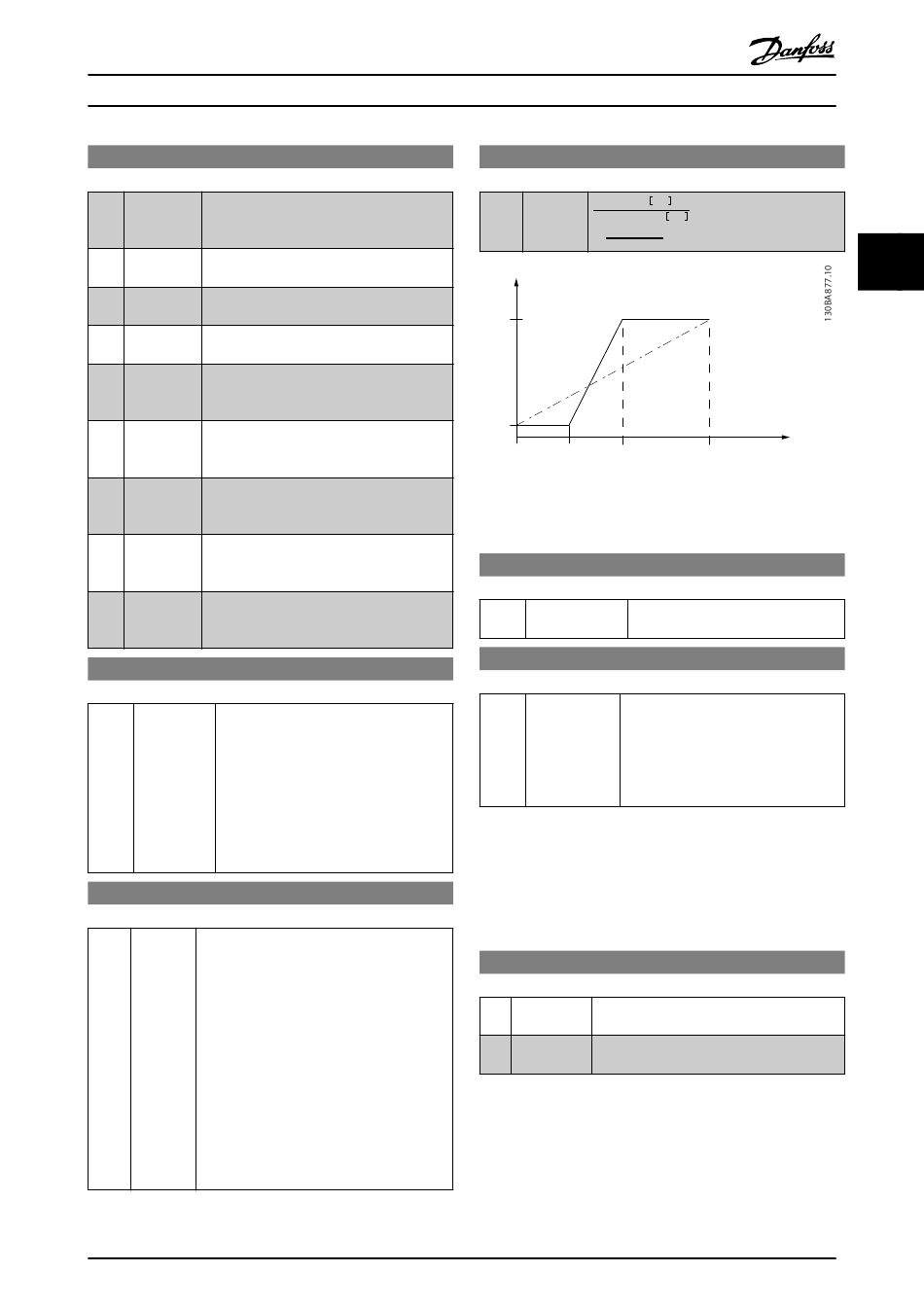

Parameter Descriptions
6-70 Terminal X45/1 Output
Option: Function:
[135] Torque% The torque setting is related to the motor
nom 4-20 torque setting.
mA
[136] Power 4-20 Taken from 1-20 Motor Power [kW]
mA
[137] Speed 4-20 Taken from 3-03 Maximum Reference. 20 mA
mA = Value in 3-03 Maximum Reference.
[138] Torque 4-20 Torque reference related to 160% torque.
mA
[139] Bus ctrl. An output value set from fieldbus process
0-20 mA data. The output will work independently of
internal functions in the frequency converter.
[140] Bus ctrl. An output value set from fieldbus process
4-20 mA data. The output will work independently of
internal functions in the frequency converter.
[141] Bus ctrl. 4-54 Warning Reference Low defines the
0-20 mA, behaviour of the analog output in case of
timeout bus time-out.
[142] Bus ctrl. 4-54 Warning Reference Low defines the
4-20 mA, behaviour of the analog output in case of
timeout bus time-out.
[150] Max Out In relation to 4-19 Max Output Frequency.
Freq 4-20
mA
6-71 Terminal X45/1 Output Min Scale
Range: Function:
0.00% [0.00 - Scale the minimum output of the selected
*
200.00%] analog signal at terminal X45/1, as a
percentage of the maximum signal value.
E.g. if 0 mA (or 0 Hz) is desired at 25% of
the maximum output value, then
programme 25%. Scaling values up to
100% can never be higher than the
corresponding setting in 6-72 Terminal
X45/1 Max. Scale.
6-72 Terminal X45/1 Output Max Scale
Range: Function:
100% [0.00 - Scale the maximum output of the selected
*
200.00%] analog signal at terminal X45/1. Set the value
to the maximum value of the current signal
output. Scale the output to give a current
lower than 20 mA at full scale; or 20 mA at
an output below 100% of the maximum
signal value. If 20 mA is the desired output
current at a value between 0 - 100% of the
full-scale output, programme the percentage
value in the parameter, i.e. 50% = 20 mA. If a
current between 4 and 20 mA is desired at
maximum output (100%), calculate the
percentage value as follows (example where
desired max. output is 10 mA):
®
VLT AutomationDrive Programmming Guide
6-72 Terminal X45/1 Output Max Scale
Range:
Current
[mA]
20
0/4
Illustration 3.44
6-73 Terminal X45/1 Output Bus Control
Range:
0.00%
6-74 Terminal X45/1 Output Timeout Preset
Range:
0.00%
3.8.9 6-8* Analog Output 4 MCB 113
Parameters for configuring the scaling and limits for
analog output 4. Terminal X45/3 and X45/4. Analog
outputs are current outputs: 0/4 – 20 mA. Resolution on
analog output is 11 bit.
6-80 Terminal X45/3 Output
Option:
[0]
®
MG33ME02 - VLT is a registered Danfoss trademark
Function:
I RANGE mA
I DESIRED MAX mA
mA
20 − 4
x 100 % = 160 %
=
mA
10
0% Analogue Analogue
output Min
Output Max
Scale Scale
par. 6-71 par. 6-72
Function:
[0.00 - 100.00%] Holds the level of Analog Output 3
*
(terminal X45/1) if controlled by bus.
Function:
[0.00 - Holds the preset level of Analog Output
*
100.00%] 3 (terminal X45/1).
In case of a bus timeout and a timeout
function is selected in 6-70 Terminal
X45/1 Output the output will preset to
this level.
Function:
Select the function of Terminal X45/3 as an
analog current output.
No operation Same selections available as for 6-70 Terminal
*
X45/1 Output
x 100 %
100% Variable for
output
example:Speed
[RPM]
