Danfoss VLT AutomationDrive FC 300 Series Programming Manual page 31

Parameter Descriptions
0-20 Display Line 1.1 Small
Option:
[4285] Active Safe Func.
[4286] Safe Option Info
[9913] Idle time
3 3
[9914] Paramdb requests in
queue
[9917] tCon1 time
[9918] tCon2 time
[9919] Time Optimize
Measure
[9920] HS Temp. (PC1)
[9921] HS Temp. (PC2)
[9922] HS Temp. (PC3)
[9923] HS Temp. (PC4)
[9924] HS Temp. (PC5)
[9925] HS Temp. (PC6)
[9926] HS Temp. (PC7)
[9927] HS Temp. (PC8)
[9951] PC Debug 0
[9952] PC Debug 1
[9953] PC Debug 2
[9954] PC Debug 3
[9955] PC Debug 4
[9956] Fan 1 Feedback
[9957] Fan 2 Feedback
[9958] PC Auxiliary Temp
[9959] Power Card Temp.
0-21 Display Line 1.2 Small
Option: Function:
[0] None Select a variable for display in line 1, middle
*
position. The options are the same as listed for
0-20 Display Line 1.1 Small.
0-22 Display Line 1.3 Small
Option:
[30120] Mains Current
*
[A]
0-23 Display Line 2 Large
Option:
[30100] Output Current
*
[A]
0-24 Display Line 3 Large
Select a variable for display in line 3.
Option:
[30121] Mains Frequency The options are the same as those
*
30
®
VLT AutomationDrive Programmming Guide
Function:
Function:
Select a variable for display in line 1,
right position. The options are the
same as listed for 0-20 Display Line 1.1
Small.
Function:
Select a variable for display in line 2.
The options are the same as listed for
0-20 Display Line 1.1 Small.
Function:
listed in 0-20 Display Line 1.1 Small.
MG33ME02 - VLT
0-25 My Personal Menu
Range:
Size [0 -
related 9999 ]
*
3.2.4 0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes: *Custom Readout. Value proportional to speed
(Linear, squared or cubed depending on unit selected in
0-30 Custom Readout Unit) *Display Text. Text string stored
in a parameter.
Custom Readout
The calculated value to be displayed is based on settings
in 0-30 Custom Readout Unit, 0-31 Custom Readout Min
Value (linear only), 0-32 Custom Readout Max Value,
4-13 Motor Speed High Limit [RPM], 4-14 Motor Speed High
Limit [Hz] and actual speed.

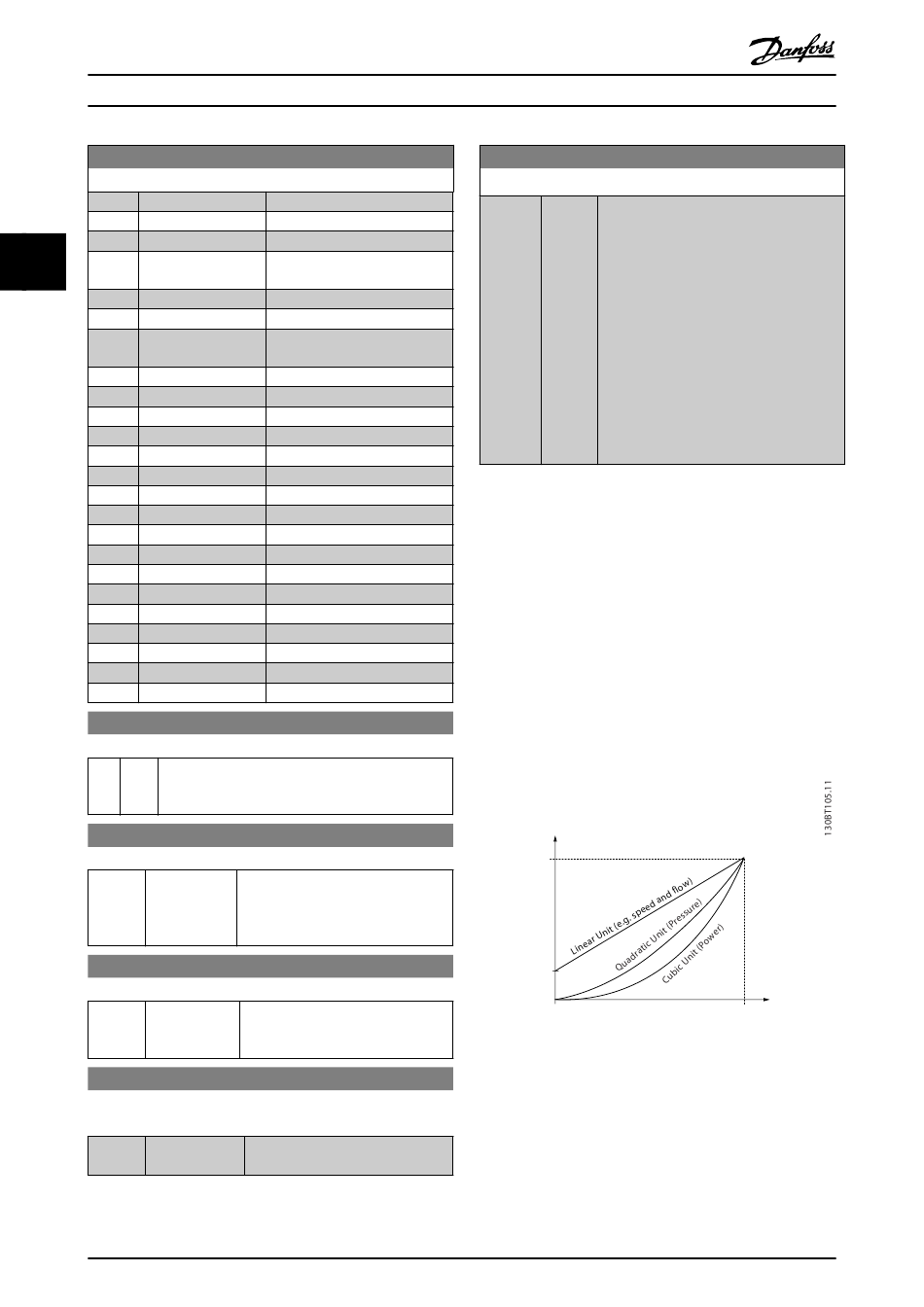

Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Liniar
units only
P 0-31
0
Illustration 3.4
®
is a registered Danfoss trademark
Function:
Define up to 50 parameters to appear in
the Q1 Personal Menu, accessible via the
[Quick Menu] key on the LCP. The
parameters will be displayed in the Q1
Personal Menu in the order they are
programmed into this array parameter.
Delete parameters by setting the value to
'0000'.
For example, this can be used to provide
quick, simple access to just one or up to 50
parameters which require changing on a
regular basis (e.g. for plant maintenance
reasons) or by an OEM to enable simple
commissioning of their equipment.
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
