Parameter Descriptions
Start
1=on
term.18
0=o
Par 1-71
Start delay time
3 3
Shaft speed
Output current
Pre-magnetizing
current or
DC hold current
Par 2-23
Brake delay time
Relay 01
Mechanical brake
locked
Mechanical brake
free

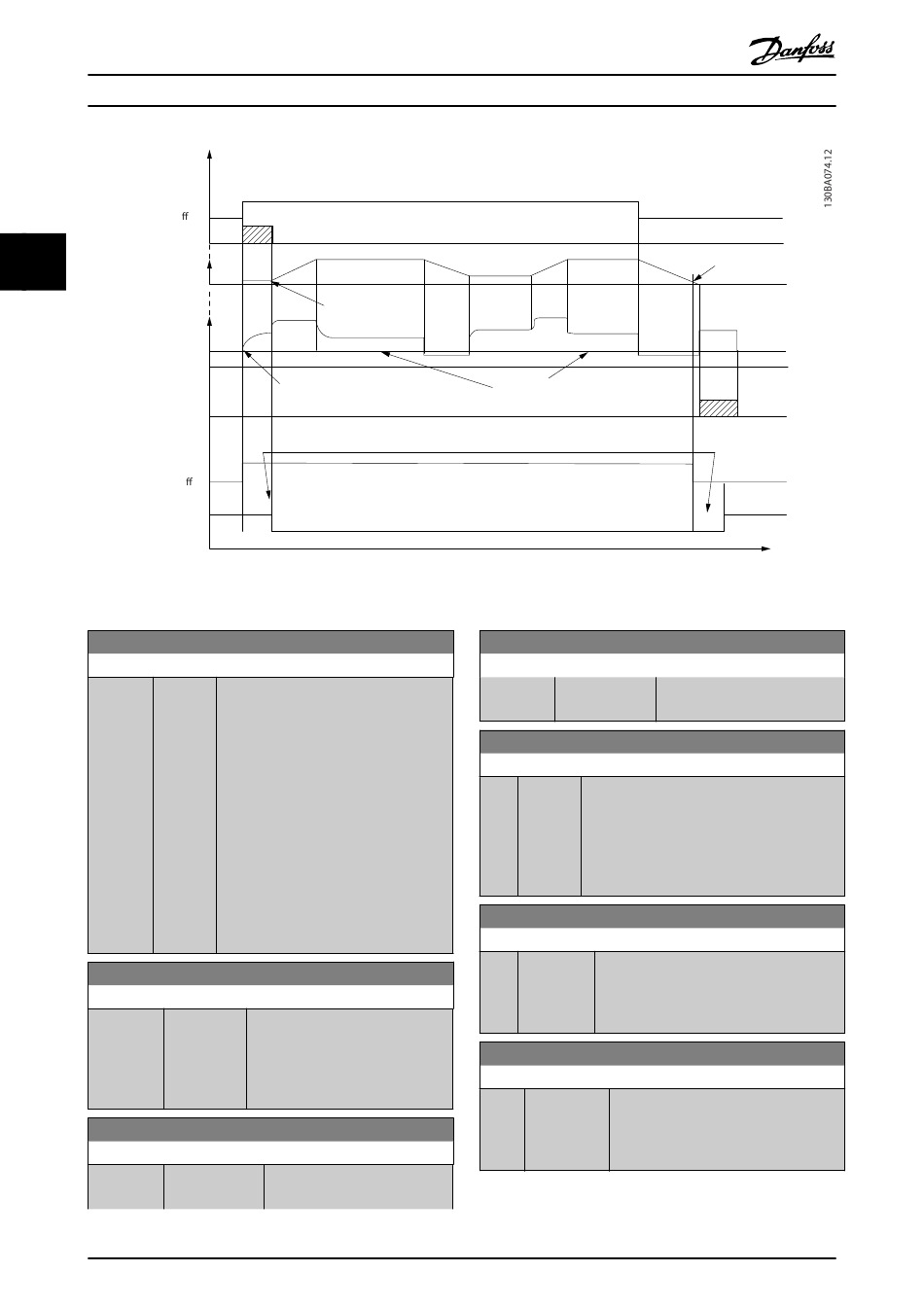

Illustration 3.19 Mechanical Brake
2-20 Release Brake Current
Range:
Size [ 0.00 -
related par. 16-37
*
A]
2-21 Activate Brake Speed [RPM]
Range:
Size related
*
RPM]
2-22 Activate Brake Speed [Hz]
Range:
Size related
*
Hz]
54
Par 1-74
Start speed
Par 1-76 Start current/
Par 2-00 DC hold current
Reaction time EMK brake
on
o
Function:
Set the motor current for release of the
mechanical brake, when a start condition
is present. The default value is the
maximum current the inverter can
provide for the particular power size. The
upper limit is specified in 16-37 Inv. Max.
Current.
NOTE
When Mechanical brake control
output is selected but no mechanical
brake is connected, the function will
not work by default setting due to
too low motor current.
Function:
[0 - 30000 Set the motor speed for activation
of the mechanical brake, when a
stop condition is present. The upper
speed limit is specified in
4-53 Warning Speed High.
Function:
[ 0.0 - 5000.0 Set the motor frequency for
activation of the mechanical
MG33ME02 - VLT
®
VLT AutomationDrive Programmming Guide
Par 2-20
Release brake current
2-22 Activate Brake Speed [Hz]
Range:
2-23 Activate Brake Delay
Range:
0.0 s
*
5.0 s]
2-24 Stop Delay
Range:
0.0 s
*
2-25 Brake Release Time
Range:
0.20 s
*
®
is a registered Danfoss trademark
Function:
brake, when a stop condition is
present.
Function:
[0.0 - Enter the brake delay time of the coast after
ramp-down time. The shaft is held at zero
speed with full holding torque. Ensure that the
mechanical brake has locked the load before
the motor enters coast mode. See Mechanical
Brake Control section in the Design Guide.
Function:
[0.0 - 5.0 s] Set the time interval from the moment
when the motor is stopped until the brake
closes. This parameter is a part of the
stopping function.
Function:
[0.00 - 5.00 This value defines the time it takes for
s] the mechanical brake to open. This
parameter must act as a time-out when
brake feedback is activated.
Par 2-21
Activate brake
speed
Time
