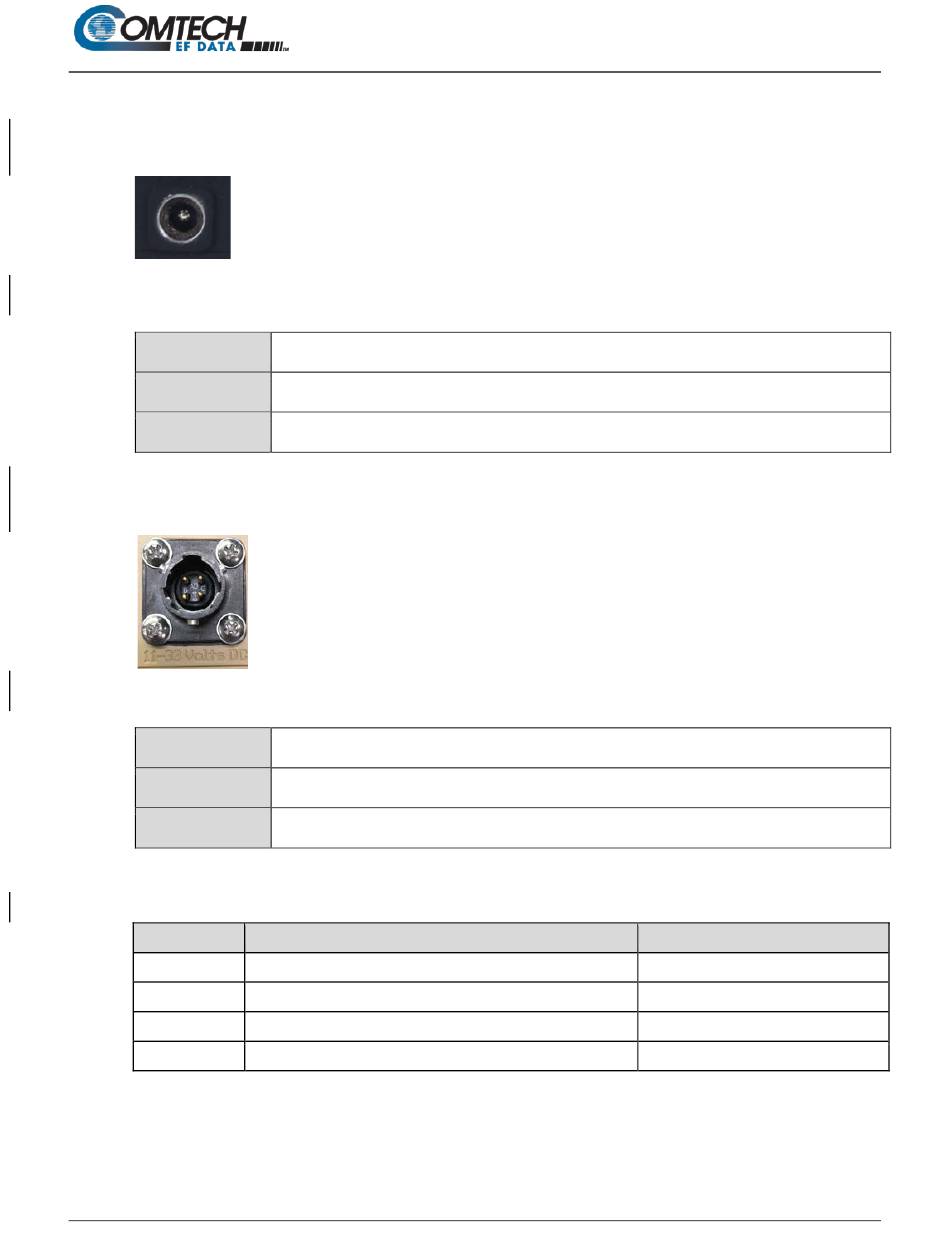

3.5

Power/Ground Connector

3.5.1 SLM-5650C DC Power Connector

DC Voltage
Input Current
Connector Type

3.5.2 SLM-5650C-ODU DC Power Connector

DC Voltage
Input Current
Connector Type
Pin #
A
B
C
D
External Connectors and Pinouts
A standard coaxial connector supplies DC power to the modem. The enclosure is
threaded to accept a threaded connector sleeve for retention purposes. An non-
threaded installation may also be used. See Table 3-7 for specifications.

Table 3-7. SLM-5650C Power Connector

5V Nominal, 6V maximum
6A maximum
Coaxial 5.5mm/2.5mm DC Power Jack (CUI Inc. PP3-002BH), enclosure threaded for retention
A MIL-C-26482 series circular poer receptacle, Male, 4 Pin connector provide
the input for the +11 VDC to +33 VDC input voltage. See Table 3-8 for
specifications.

Table 3-8. SLM-5650C-ODU Power Connector

11 VDC to 33 VDC
2.7A maximum
Outdoor Mil-C-26482 series circular poer receptacle, Male, 4 Pin

Table 3-9. SLM-5650C-ODU Power Connector Pinout

Signal Function
DC Voltage Psostive
DC Voltage Psostive
Ground
Ground
SLM-5650C / SLM-5650C-ODU Satellite Modem
+11 VDC to +33 VDC
+11 VDC to +33 VDC
3–8
Revision 1
Range
MN-SLM-5650C
