3.3

Terrestrial Data Connectors

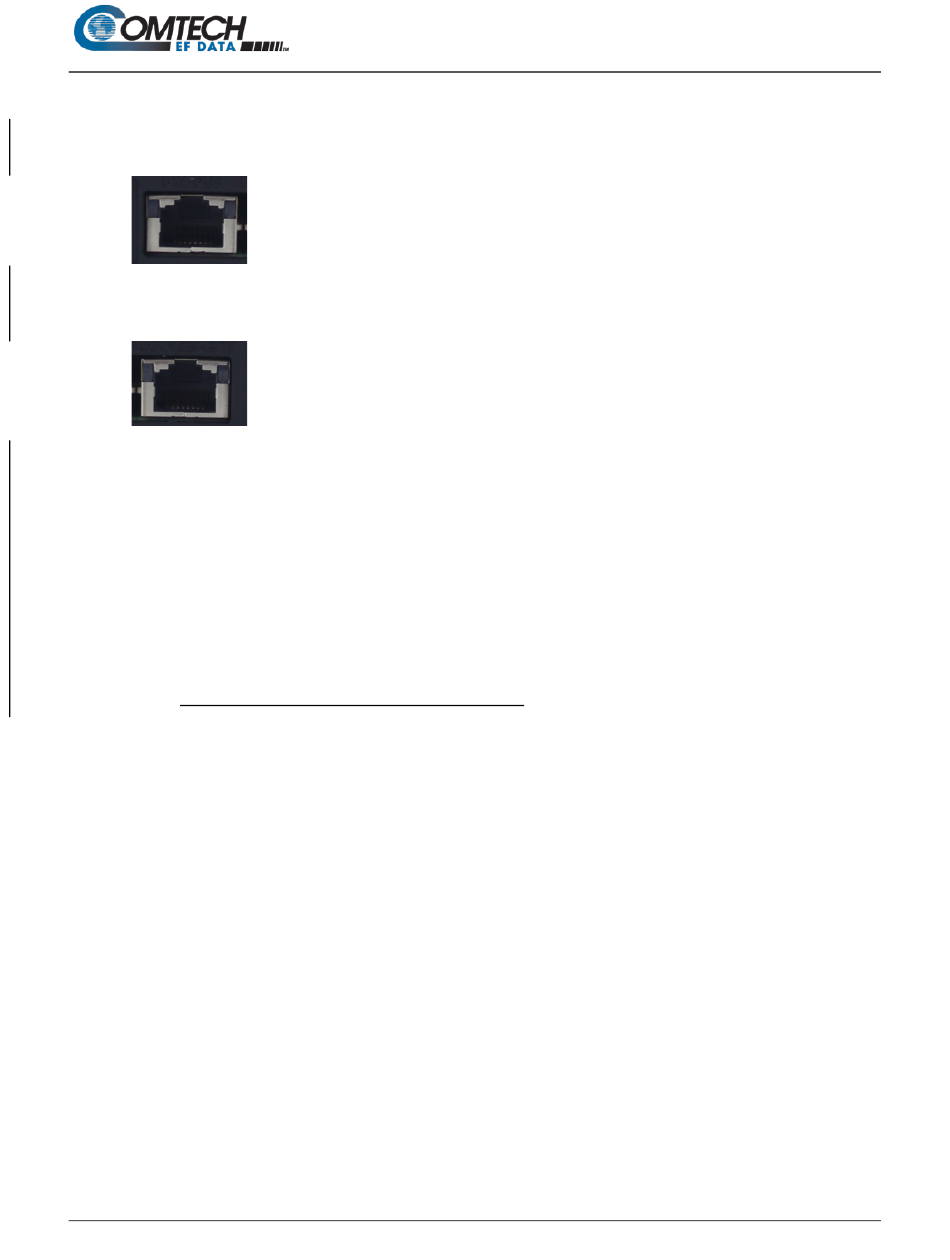

3.3.1 SLM-5650C Ethernet Traffic Connector (RJ-45)

3.3.2 SLM-5650C Ethernet Management Connector (RJ-45)

3.3.3 SLM-5650C-ODU Ethernet Connectors

The SLM-5650C-ODU incorporates sealed RJ45 Ethernet connectors.
Connectors:
Mating Connectors:
Go to https://www.samtec.com/cables/panel/sealed to find these connectors.
External Connectors and Pinouts
The Traffic Ethernet connection is an 8-pin type 'RJ-45' 10/100/1000Base-T
connector and functions as an Ethernet bridge for data traffic. Auto Negotiate
only.
The Management Ethernet connection is an 8-pin type 'RJ-45' 10/100/1000Base-
T connector. Remote control of the modem is provided using SNMP,
HTTP/HTTPS or Telnet with this port. Auto Negotiate only.
Samtec RPBE series
Samtec RCE series
TM
(Acclimate IP68 sealed rectangular Ethernet cable assembly, plug)
or
Samtec RCEF Field Termination Kit
SLM-5650C / SLM-5650C-ODU Satellite Modem
3–5
Revision 1
MN-SLM-5650C
