Danfoss AK2-SC 255 Reference Manual page 94

RTC Address
and Init
RS.8D.M1.22
Pt#
Name
Range

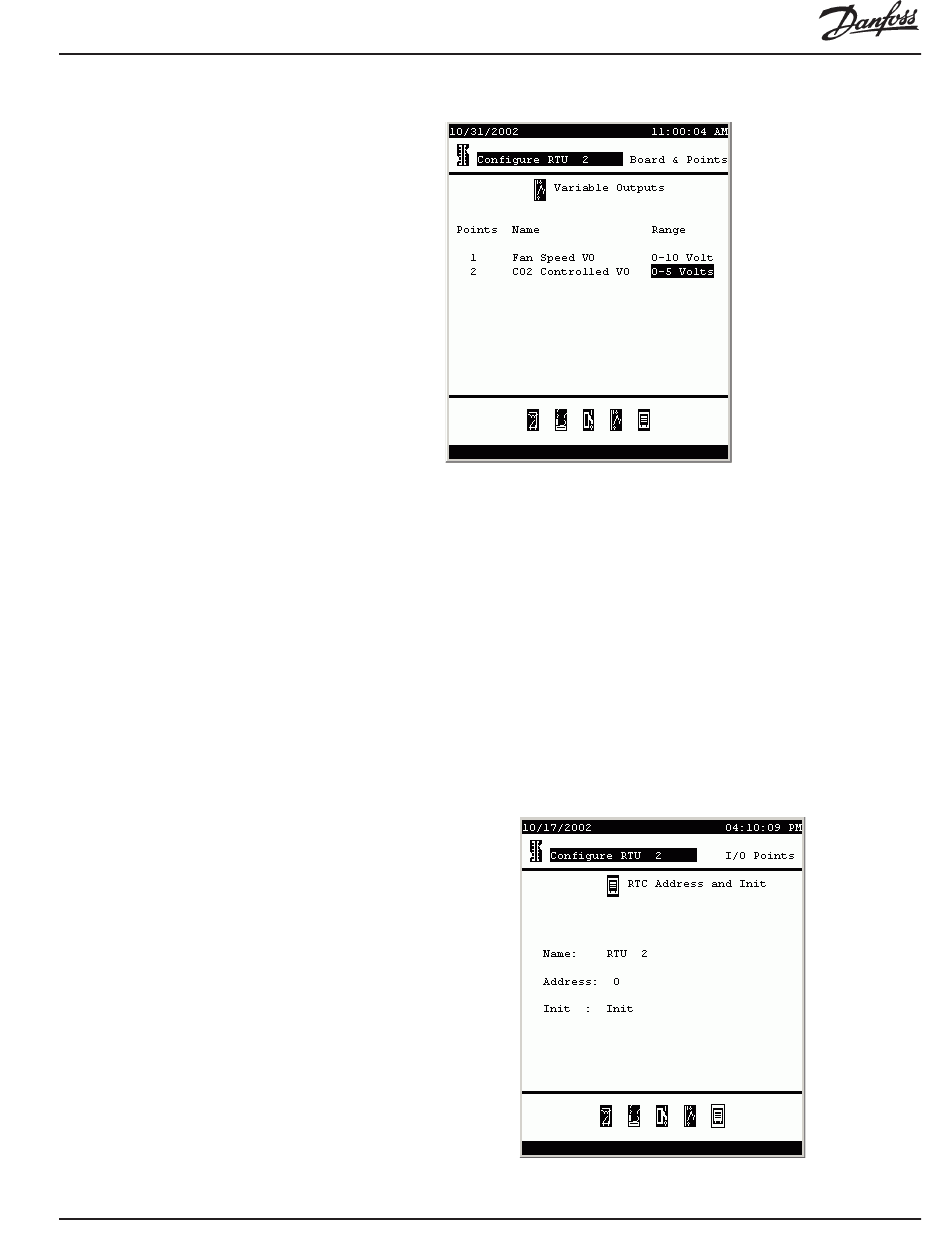

Select the right-most icon on the Configure RTC I/O points screen, and you will see
this screen:
AK2-SC 255 Reference Manual
(1or 2) The number of the point.
(Label field, not changeable) The name of the point.
The names are fixed, since the hardware points on the
RTC board are dedicated, and can serve only for the
listed outputs. The names always appear as in the
illustration above, whether the input is used or not.
(List field, one for each point:)
0-10 Volt: The output will supply 0-10 Volts.
0-5 Volts: The output will supply The input is config-
ured. It should be wired if this
93
