Receiver
configuration
Heat reclaim
configuration
RS.8D.M1.22
earlier section on evaporator (defrost) configuration. The screen is not shown here.

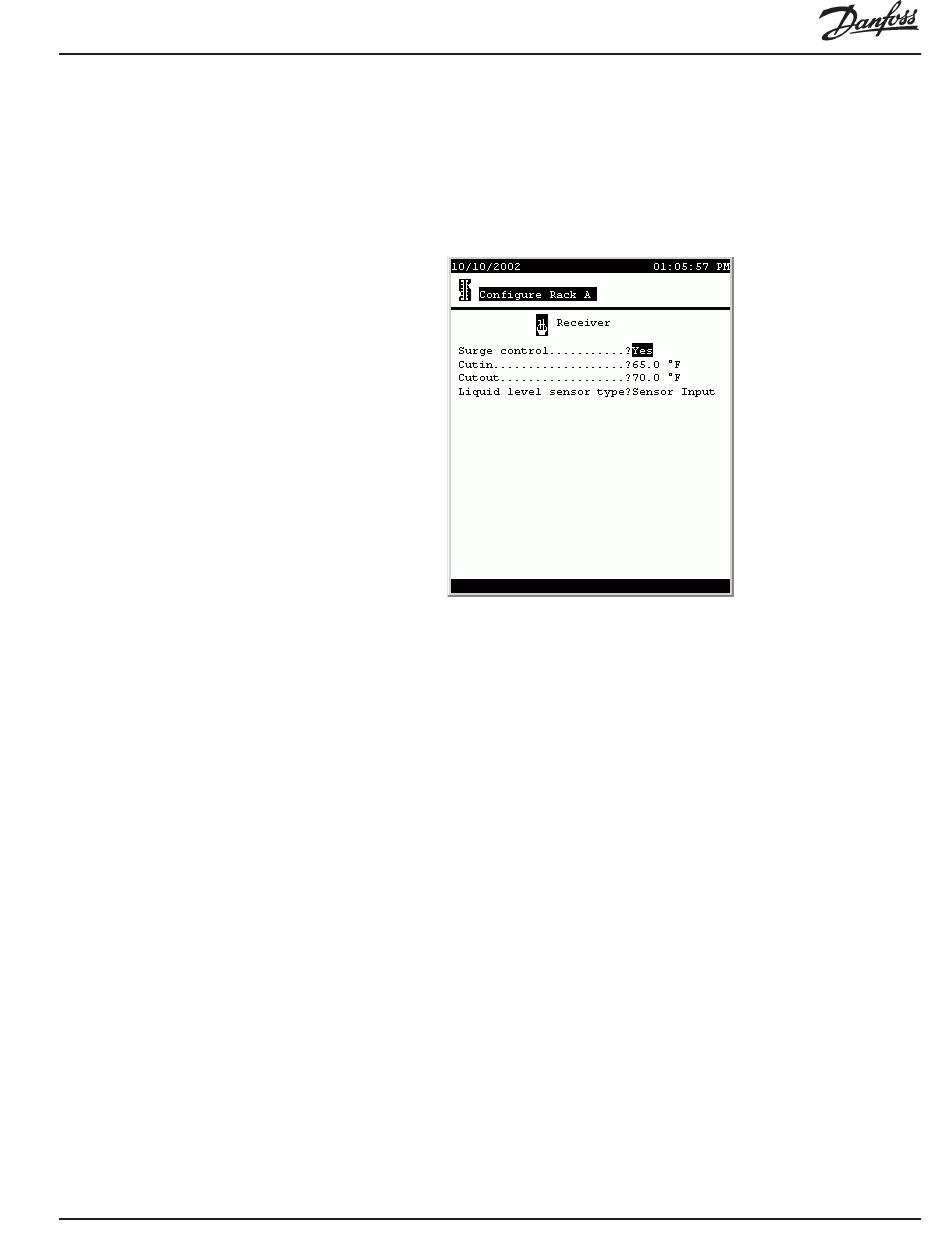

To configure the receiver, return to the Configure Rack menu, put the cursor on
Receiver, and press ENTER. The screen is as shown below.
Surge control
Cutin
Cutout
Liquid level sensor type
To configure heat reclaim, return to the Configure Rack menu, put the cursor on Heat
Reclaim, and press ENTER. The screen is as shown below.
AK2-SC 255 Reference Manual
(List box: Yes, No) Whether or not surge control will
be implemented.
(0.0 to 100.0) The temperature at which the surge
valve opens.
(0.00 to 100.0) The temperature at which the surge
valve closes.
(List box:)
Sensor input: An analog sensor is used for liquid
level.
On/Off input: A digital sensor is used for liquid level.
None: There is no liquid level sensor monitored.
47
