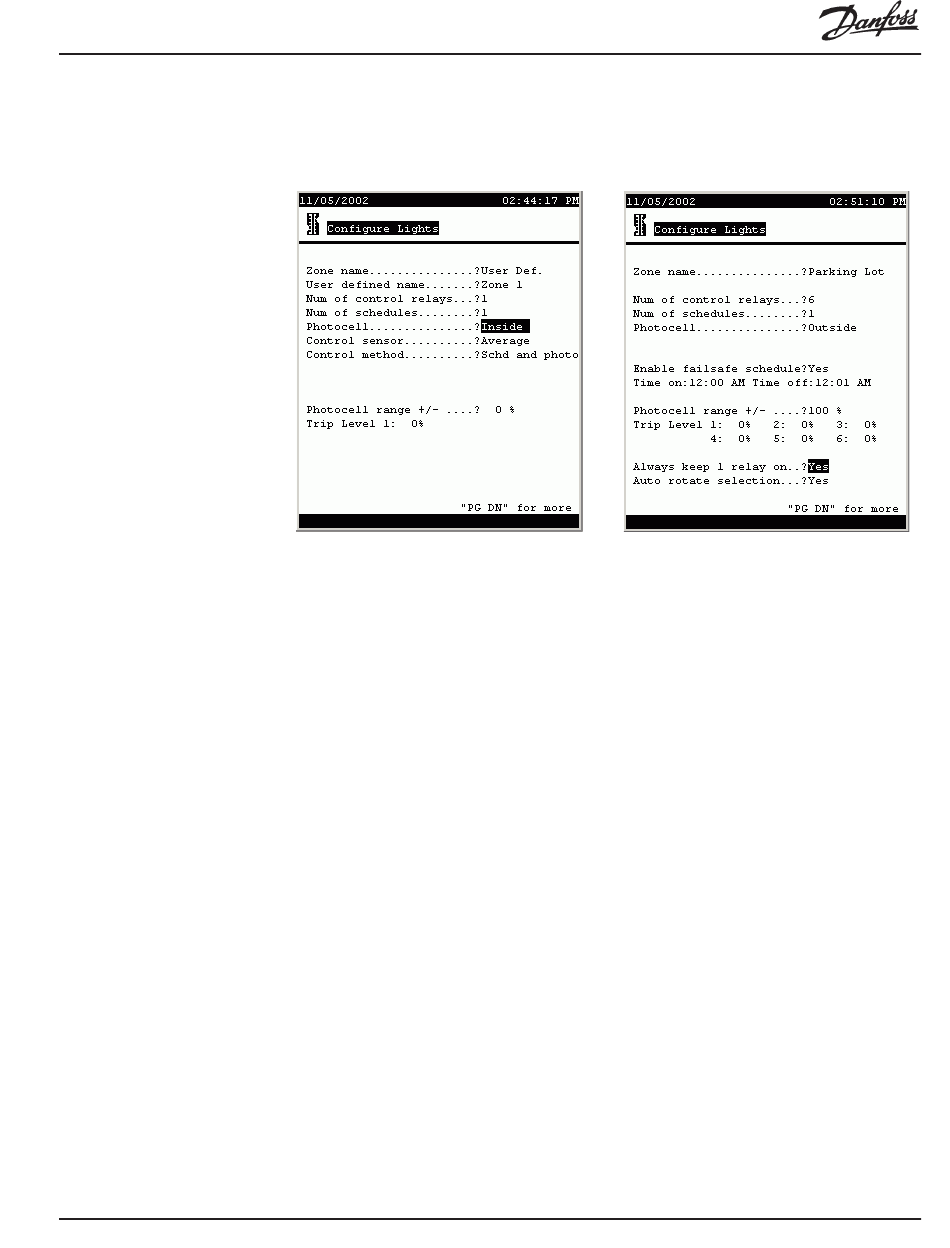

press enter. The first page of the setup screen is shown in the illustrations below: on
the left for an inside photocell, and on the right for an outside photocell. In the screen
on the left, a user-defined zone name has been chosen. On the right, one of the listed
zone names has been chosen.
Zone name
User defined name
Num of control relays
Num of schedules
Photocell
Control sensor
Control method
AK2-SC 255 Reference Manual
(List box: ) A great variety of typical names are
included in the box that pops up, plus "User Def." that
allows the next line.
(Label box; any 11 characters)
(0 to 6) The number of relays controlled by the lighting
point.
(0 to 8) The number of schedules for this point.
(List box:)
Inside: The point's photocell(s) are indoors.
Outside: A single photocell is located outdoors.
None: This point has no photocell.
(List box:)
Min: The lowest-reading photocell at any given time
will be used as the control sensor.
Max: The highest-reading photocell at any given
timewill be used as the control sensor.
Average: All photocells are averaged, and the aver-
age value is used as the control sensor value.
Photocell ID#1 (etc.): If any specific photocell is
selected , its value alone will be used as the control
sensor value.
(List box:)
Schd and photo: For this point to be on, two condi-
tions have to be satisfied: (1) the schedule must be
true; and (2) the photocell must be above trip level.
Once those two conditions are satisfied, the pre-delay
111
