Aircooled condensers

RS.8D.M1.22
Condensers are configured by selecting Condensers on the Configure Rack menu,
and can be either air-cooled or evaporative; the two types have very different

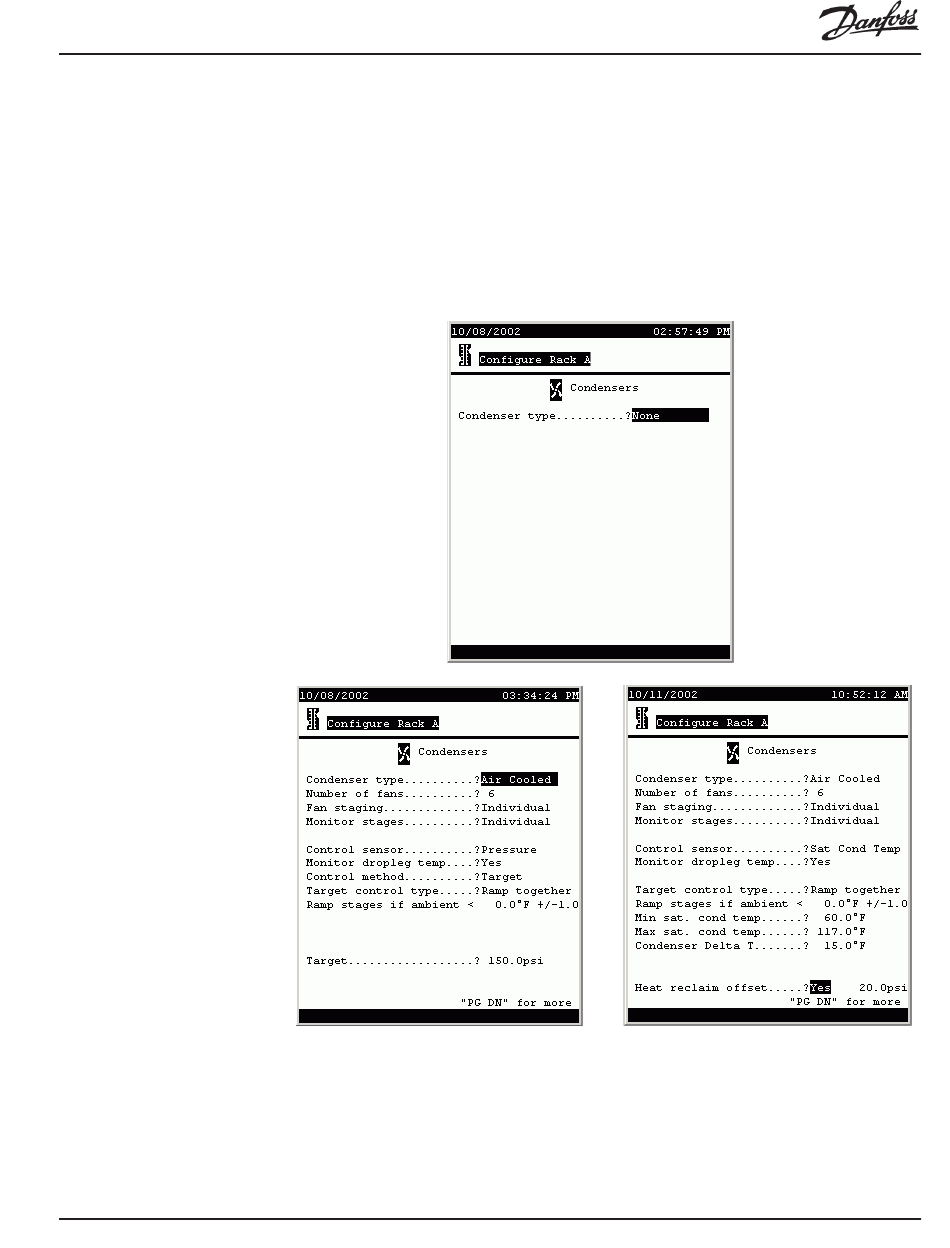

screens. At top center below is shown the condenser screen when you first open it,
and at lower left is shown the same screen after Air Cooled has been selected as
the type, and before changes; finally, at lower right below is shown the configuration
screen for air-cooled condensers when Sat Cond Temp is selected as the Control
sensor. The change to saturated condensing temperature control strategy causes
several of the following questions to be replaced by new questions. Not all the fields
discussed in the following explanation occur on the screen at one time.
There are five configuration pages for aircooled condensers. In the first page are the
following fields (refer to the illustration at right, above):
Condenser type
AK2-SC 255 Reference Manual
(List box:) This section deals with condenser configu-
ration when the selection Air Cooled is made in this
field.
35
