Selecting points
to View
188
Once the points to be displayed (up to five at one time) are selected, the top portion of
the screen will show their names, sample intervals, and their respective SC 255's.
The body of the screen lists all the points of the selected type (in the example, relay
outputs). There may be several or many pages of points to choose from for a given
type in a particular AKCESS system.
To select a point as one of the five to view, place the cursor on the word No in the
column headed "View," press the +/- key, then use one of the arrow keys to toggle
the field to "Yes," and press ENTER. Note that this can only be done if there are not
five points already selected and shown in the upper portion of the screen. If all five
positions in the upper portion of the screen have been selected, you must either clear
the display configuration (by using the Clear button at the bottom of the screen) or
turn off one or more points first. No history is lost by removing a point from the
display configuration.
The five datapoints to be viewed can be any combination of relay outputs, sensor
inputs, on/off inputs, variable outputs, or Smart Case Controller points. A list of each
type can be seen by selecting the appropriate icon at the bottom of the screen and

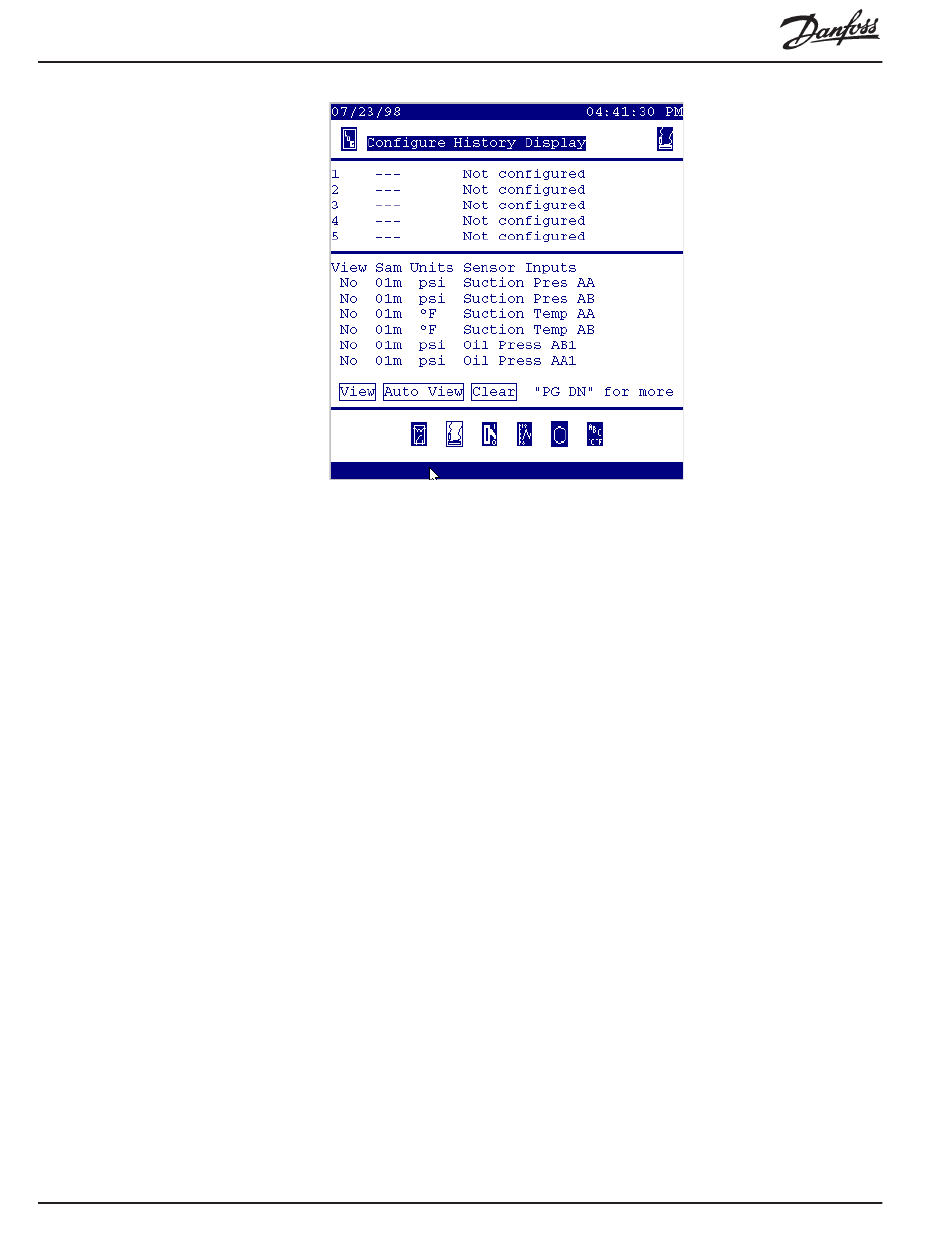

pressing ENTER. Here's how a screen would look with five datapoints (two relay
outputs and three sensor inputs) selected:
