Identification
Principle
Valg af signal til overhedningsmåling. Tryktransmitter eller temperaturføler S1
Selection of signal to superheat measurement. Pressure transmitter or temperature sensor S1
Wahl des Signal für Überhitzungsmessung. Druckmessumformer oder Temperaturfühler S1
Sélection de signal pour la mesure de surchauffe. Transmetteur de pression ou sonde de température S1
S1, S2:
Isoler følerne
Insulate sensors
Fühler isolieren
Capteurs isolés
Sensores aislados
RI8LN802
02-2012
Instructions
AK-CC 550
AK-CC 550
Additional information: English Manual
Weitere Information:
Renseignements sup-
084B8020 /
plémentarires:
084B8021
Yderligere information: Dansk Manual
Información adicional:
Informazioni ag-
giuntive!
Ytterligare information: Svenska Handbok
Aanvullende infor-
matie:
S1 placeres på første rørbøjning af det næstnederste fordamperløb
Place S1 on the first U-bend of the second-lowest evaporator passage
S1 an der ersten Rohrbiegung des zweituntersten Verdampferrohrs anbringen.
Monter S1 sur le premier coude du serpentin de la deuxiéme ligne à partir du bas
Montar S1 en la primera curva en U del serpentín correspondiente a la penúltima
tubería del distribuidor
Deutsches Manual
Manuel en français
Manual español
Manuale in italiano
Dutch Handleiding
AKV info !!
RS8EN... www.danfoss.com
230 V a.c. spole
230 V a.c. coil
230 V a.c. Spule
230 V c.a. Bobine
230 V c.a. Bobina
230 V c.a. Bobine
Advertisement
Related Manuals for Danfoss AK-CC 550
Summary of Contents for Danfoss AK-CC 550

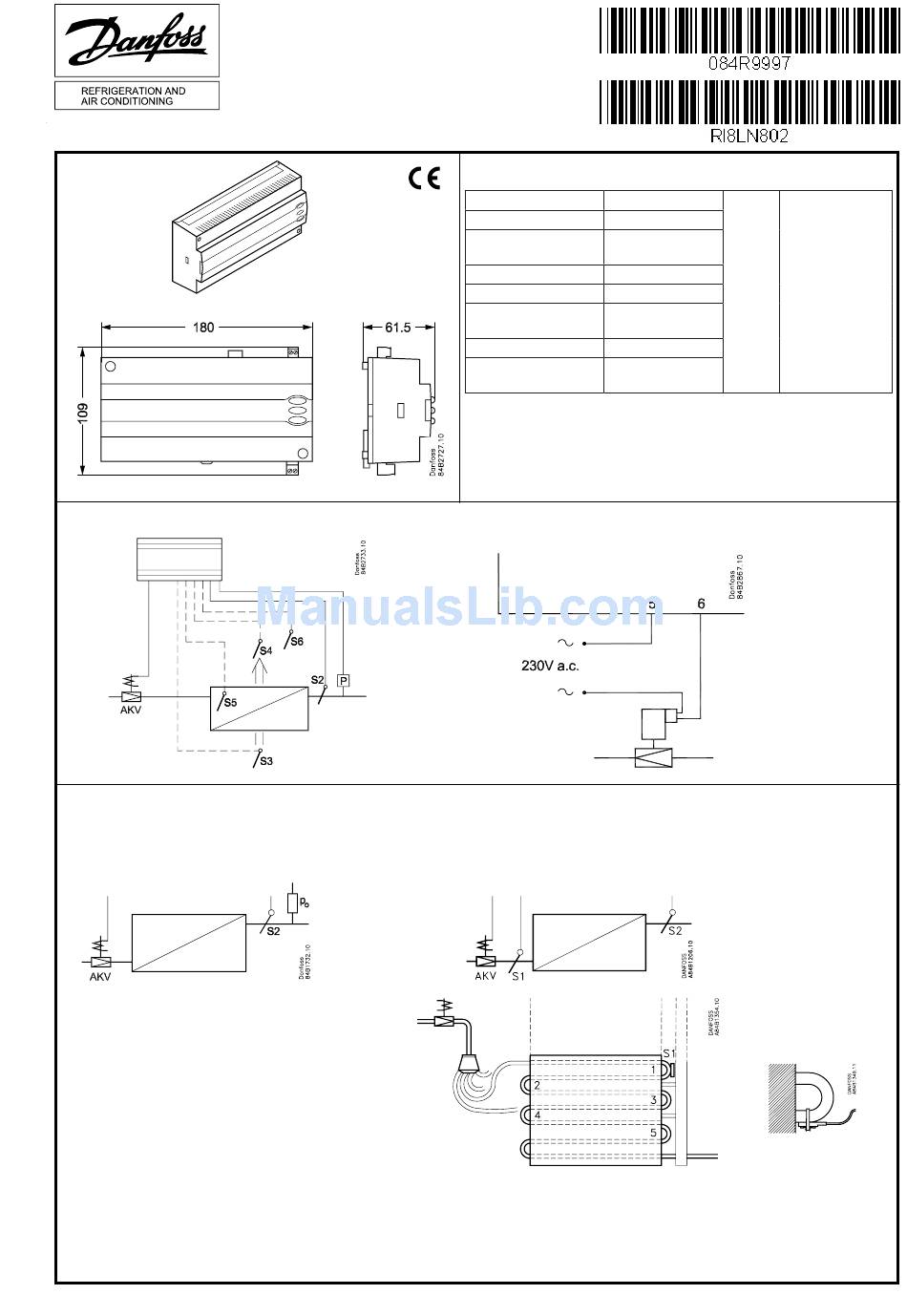

- Page 1 Instructions AK-CC 550 Identification AK-CC 550 Additional information: English Manual Weitere Information: Deutsches Manual Renseignements sup- Manuel en français 084B8020 / plémentarires: 084B8021 Yderligere information: Dansk Manual RS8EN... www.danfoss.com Información adicional: Manual español Informazioni ag- Manuale in italiano giuntive! Ytterligare information: Svenska Handbok...
- Page 2 Les régulateurs sortis d’usine sont livrés avec une étiquette indiquant l’utilisation 1. Si vous optez pour une autre utilisation, des plaques sont jointes pour vous permettre de monter la plaque adéquate. 1 - 8 Instructions RI8LN802 © Danfoss 2/2012 AK-CC 550...
- Page 3 AK-CC 550 Instructions RI8LN802 © Danfoss 2/2012...
- Page 4 à la norme applicable pour les câbles de transmission de données. Voir documentation : RC8AC AKA 245 version 6.20 + / System manager AK-SM..AK-SM... / Gateway Display EKA 163 / 164 L < 15 m L > 15 m Instructions RI8LN802 © Danfoss 2/2012 AK-CC 550...
-
Page 5: Supply Voltage
(the need for either S3 or S4 can be deselected in the 230 V a.c., 50/60 Hz configuration) S5, defrost sensor, placed on the evaporator S6, product sensor or defrost sensor B or air sensor B. The configuration determines which. AK-CC 550 Instructions RI8LN802 © Danfoss 2/2012... -
Page 6: Data Communication
There is connection between terminal 12 and 14 when the hot Danfoss will not be responsible for any goods, or plant compo- gas valves must open. nents, damaged as a result of the above defects. It is the installer's responsibility to check the installation thoroughly, and to fit the necessary safety devices. -
Page 7: Operation
• If another data communication card is used in the controller: Manuel start or stop of a defrost - LON RS485: Activate the function o04 • Push the lower button for four seconds. AK-CC 550 Instructions RI8LN802 © Danfoss 2/2012... -
Page 8: Menu Survey
Displacement of time on cutin of defrost at start-up 0 min. 240 min. Drip off time 0 min. 60 min. Delay for fan start after defrost 0 min. 60 min. Fan start temperature -50 °C 0 °C Instructions RI8LN802 © Danfoss 2/2012 AK-CC 550... - Page 9 3=door alarm when open. 4=defrost start (pulse-signal). 5=ext.main switch. 6=night operation 7=thermostat band changeover (activate r21). 8=alarm function when closed. 9=alarm function when open. 10=case cleaning (pulse signal). 11=forced cooling at hot 12=night cover gas defrost, AK-CC 550 Instructions RI8LN802 © Danfoss 2/2012...
- Page 10 2= u36 product temperature Light and night blinds defined 0: Light is switch off and night blind is open when the main switch is off 1: Light and night blind is independent of main switch Instructions RI8LN802 © Danfoss 2/2012 AK-CC 550...
- Page 11 **) Can be controlled manually, but only when r12=-1 ***) With access code 2 the access to these menus will be limited Factory settings are indicated for standard units. Other code numbers have customized settings. AK-CC 550 Instructions RI8LN802 © Danfoss 2/2012...
- Page 12 "Alarm destinations" Settings from Settings from Alarm relay Send via High Low-High System manager AKM (AKM destination) Network High Middle Log only Disabled Additional information: Manual RS8EN Instructions RI8LN802 © Danfoss 2/2012 AK-CC 550...
