Shutdown schedules
Configuring
evaporator alarms
RS.8D.M1.22
Dual Temp control
Alt target, Range
Dual Temp relay needed
Alt target, Range
Num of shutdn schedules
Generate shutdown OI

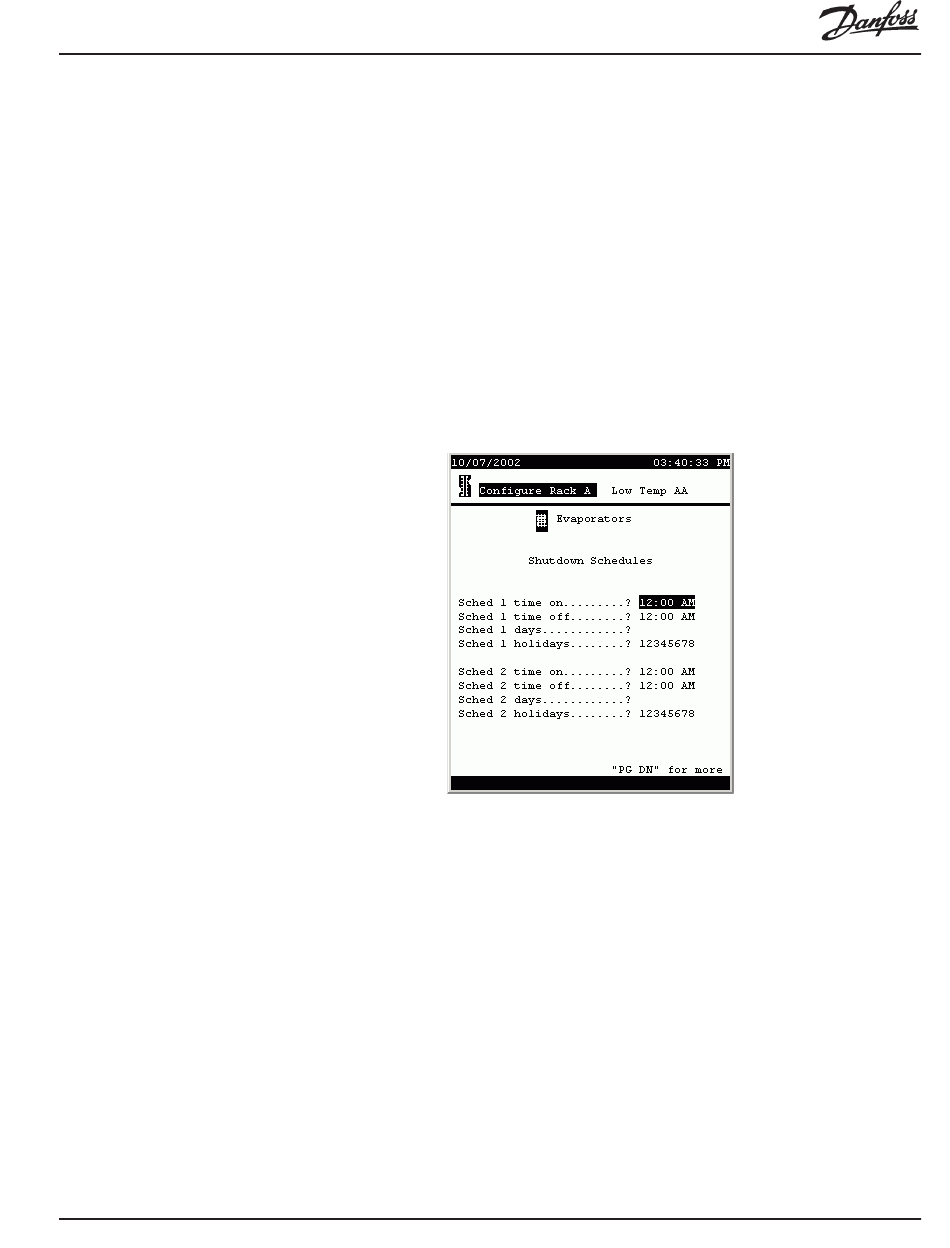

Paging down, we reach the shutdown page(s):
There are two schedules per page. Each schedule has a field for time on, time off,
days (of the week) and holidays. AM and PM are entered by selecting the first
character, using the +/- key to toggle the arrow keys to edit mode, then using the up
or down arrow to change the character to A or P as needed. The same means is used
to select the days of the week (once the cursor is placed in the space to the right of
the question) and holidays.
Holidays are given dates when Store Info is configured.
Evaporator alarms are configured on the last page for each evaporator. The right
illustration shows the screen when it is opened for the first time. The right illustration
shows the screen with all of its fields revealed. Additional information will be found in
section (Chapter 4-5) on alarms.
AK2-SC 255 Reference Manual
(List box: Yes, No) A Yes answer allows the circuit to
be used in two temperature ranges and creates a digital
input for changeover of temperature range.
(-50.0 to 150.0, 1.0 to 20.0) The second temperature
and range for a dual temperature evaporator.
(List box: Yes, No)
(-50.0 to 150.0, 1.0 to 20.0) The second temperature
and range for a dual temperature evaporator.
(0 to 8) The number of shutdown schedules that will
be entered on the page(s) immediately following this
one.
(List box: Yes, No) Whether or not a digital input (on-
off input) will be configured by which refrigeration can
be shut down for cleaning or other service.
33
