When you press ENTER with the cursor on the name of the next new calculated
point, the configuration screen for that point opens, and looks like this:

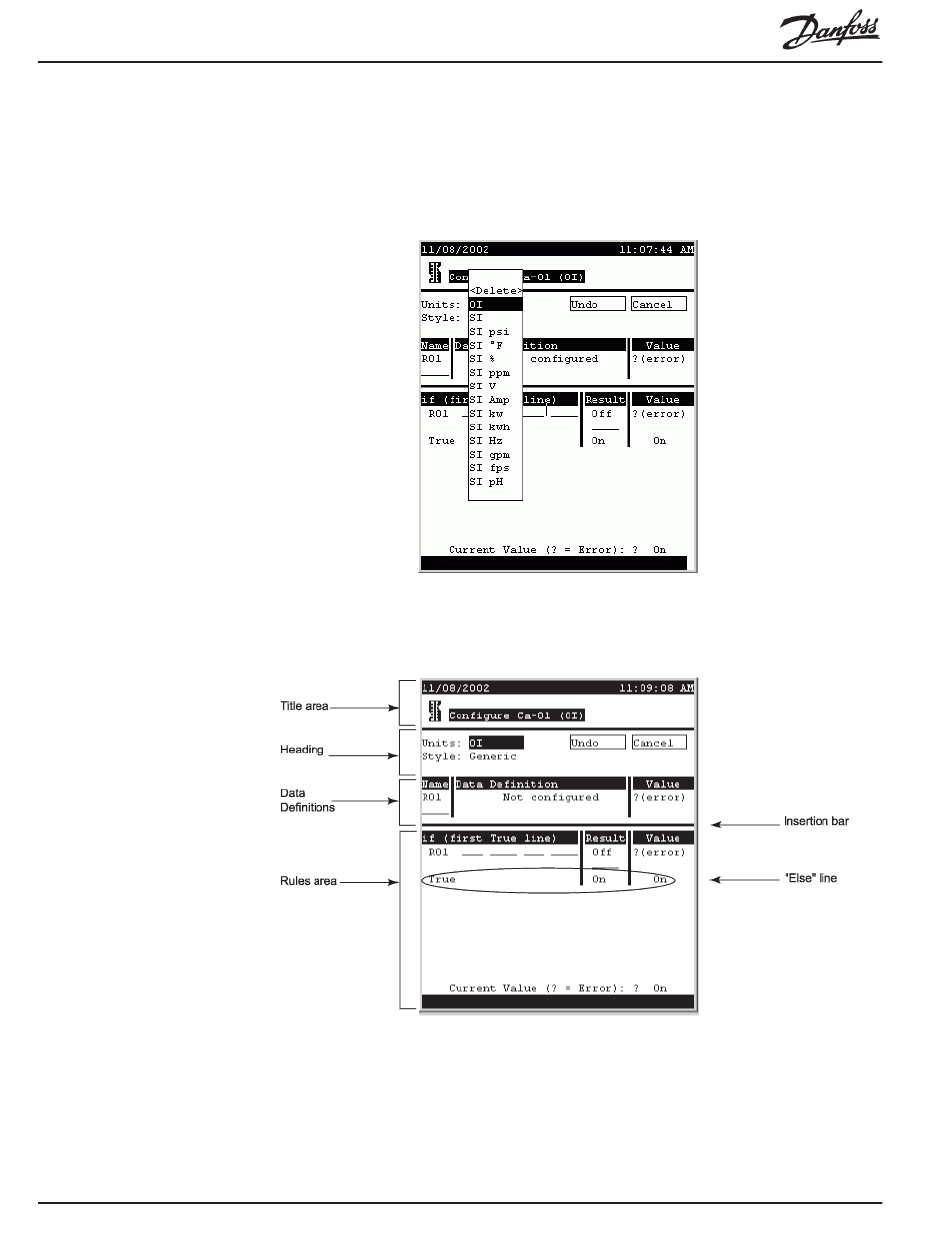

The list box for the Units field is already open when the screen first displays, showing
all the types of points that can be created, and for SI points, units. For the purpose of
discussing the screen, let's assume that we are creating an OI (a digital input). We
select OI, the first item, from the list box. Now the screen looks like this:
The screen is divided into four areas, which from top to bottom are the following:
Title area
Heading area
AK2-SC 255 Reference Manual
number of the next unconfigured calculated point. To
configure a new point, select this field and press
ENTER.
The date and time at the very top, then the settings
icon and screen title, in this case Configure Ca-01
(OI).
The heading of the screen tells what type and style of
point will be created. The fields are as follows:
