Summary of Contents for Danfoss AK-CC 460

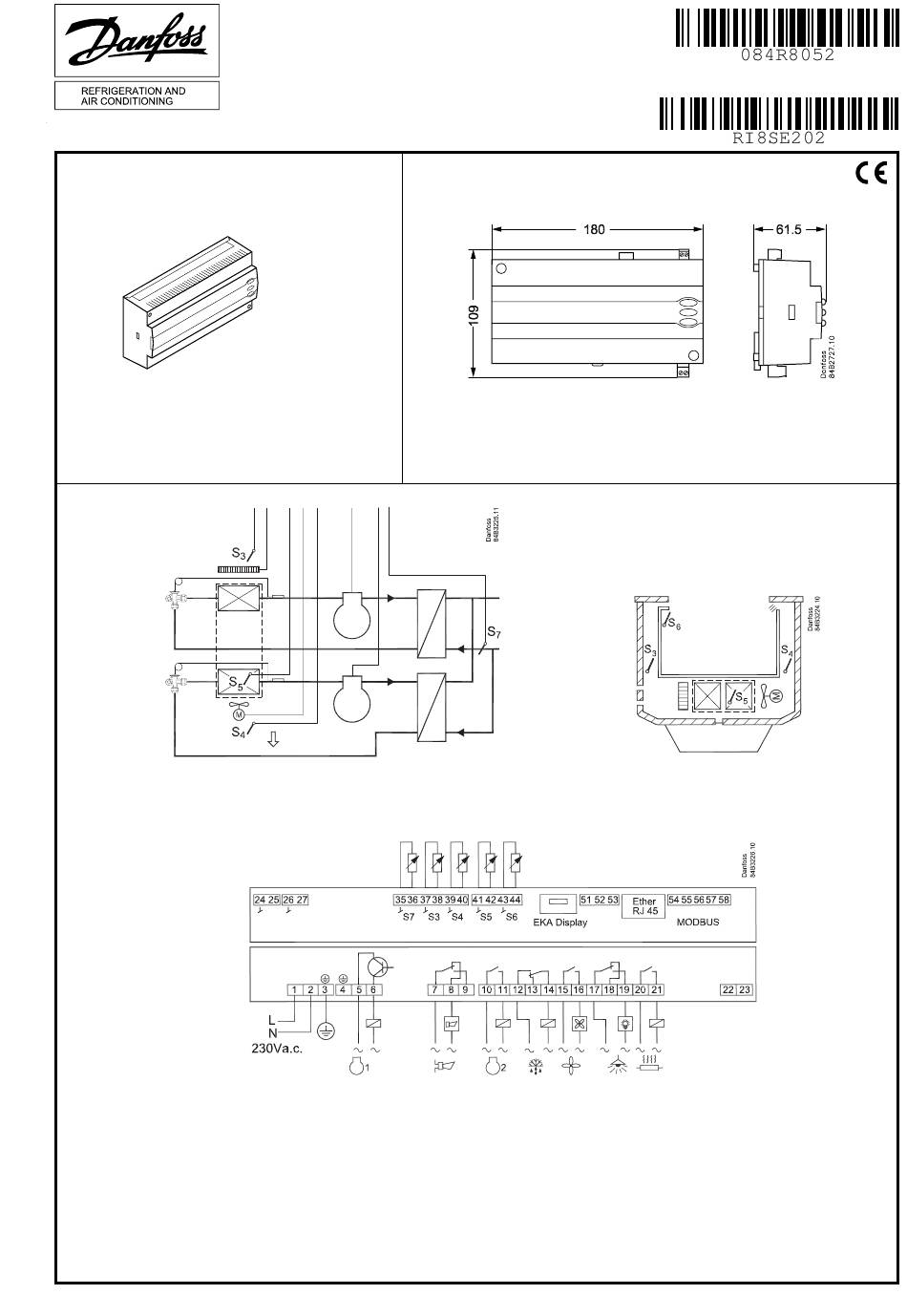

- Page 1 Instructions AK-CC 460 Identification Dimensions 084B8016 Principle RI8SE202 07-2017...
- Page 2 6.20 or higher.) RJ45 There is connection between terminal 15 and 16 when the fan For data communication, but only if a TCP/IP module is inserted in is on. the controller. (OEM) Instructions RI8SE202 © Danfoss 07/2017 AK-CC 460...
-
Page 3: Data Communication
Special reference is made to the necessity of signals to the controller when the compressor is stopped and to the need of liquid receivers before the compressors. Your local Danfoss agent will be pleased to assist with further advice, etc. Coordinated defrost via max. - Page 4 See literature: RC8AC. AKA 245 version 6.20 + / System manager AK-SM..AK-SM... / Gateway Display EKA 163 / 164 L < 15 m L > 15 m / AK-CC 460 Instructions RI8SE202 © Danfoss 07/2017 AK-CC 460...
-
Page 5: Operation
Reading the temperature at defrost sensor (Or product sensor, if selected in o92.) • A short press of the lower button Manual start or stop of a defrost • Push the lower button for four seconds. AK-CC 460 Instructions RI8SE202 © Danfoss 07/2017... -
Page 6: Menu Survey
Defrost stop temperature 0°C 50°C Interval between defrost starts 0 hrs/Off 240 hrs Max. defrost duration 0 min. 360 min. Displacement of time on cutin of defrost at start-up 0 min. 240 min. Instructions RI8SE202 © Danfoss 07/2017 AK-CC 460... - Page 7 Case cleaning. 0=no case cleaning. 1=Fans only. 2=All output Off. Selection of EL diagram. See overview page 1 Access code 2 (partial access) Replace the controllers factory settings with the present settings 0/Off 1/On 0/Off AK-CC 460 Instructions RI8SE202 © Danfoss 07/2017...
- Page 8 You should then select the relevant relay function, e.g. u58. Go to the Factory settings are indicated for standard units. Other code numbers have customized settings. function by pressing the middle button. Select On. Instructions RI8SE202 © Danfoss 07/2017 AK-CC 460...
- Page 9 The importance of individual alarms can be defined with a setting. The setting must be carried out in the group "Alarm destinations" Settings from Settings from Send via System manager AK-SM AKM (AKM destination) Network High Middle Log only Disabled AK-CC 460 Instructions RI8SE202 © Danfoss 07/2017...
