RTU Air Damper
configuration
RS.8D.M1.22
Monitor outside humidity (List box: Yes, No) Whether or not to monitor outside
Monitor wheel rotation
Night setback
Night setback offset
Num of schedules

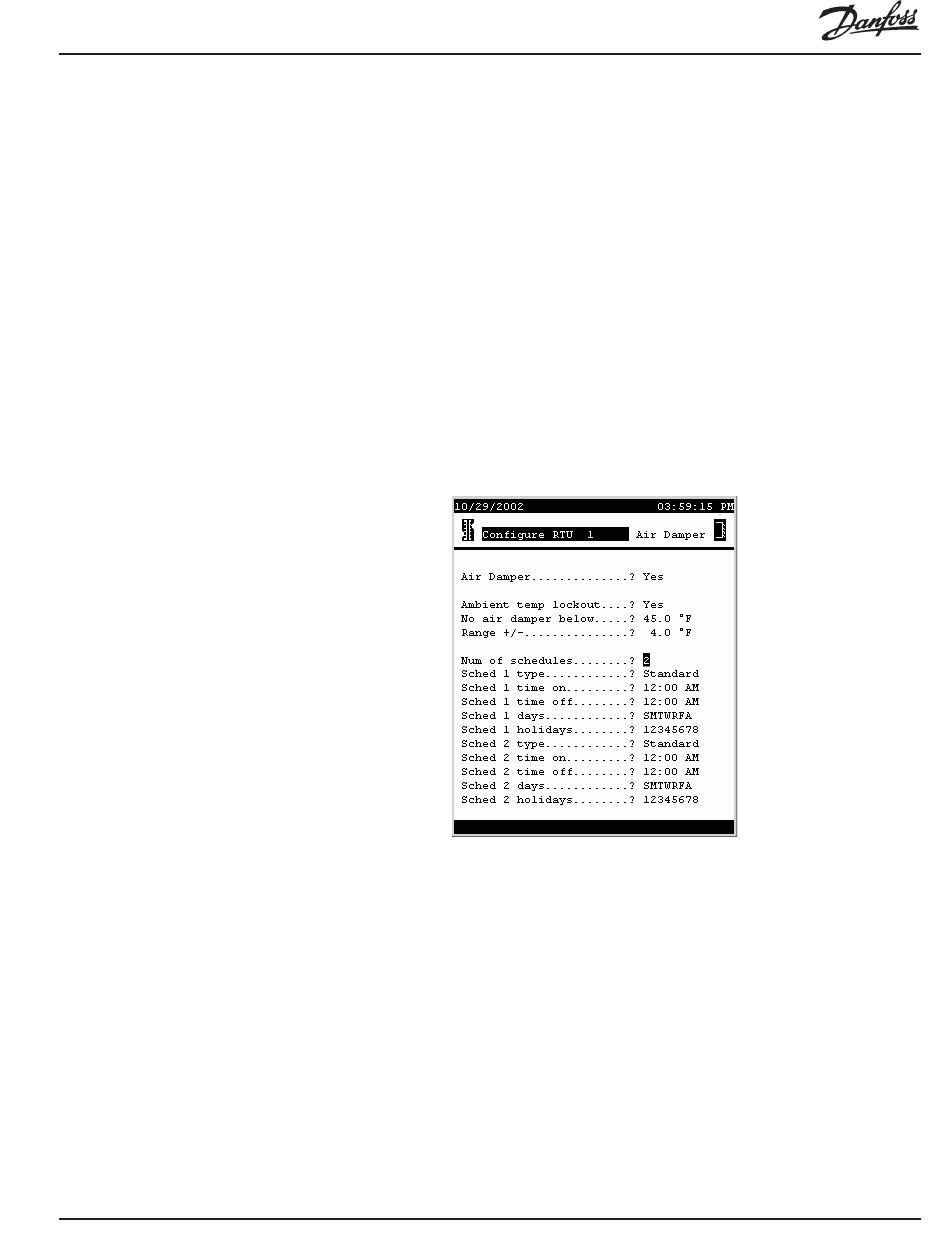

For air damper configuration, select Air Damper from the Configure RTU menu.
Air Damper
Ambient temp lockout
No air damper below
Range +/-
Num of schedules
AK2-SC 255 Reference Manual
during dehumidification.
humidity on status screens for this RTU.
(List box: Yes, No) (Present only when dessicant
wheel is configured) Whether or not the dehumidifica-
tion target is to be raised by an offset (next line)
(List box: Yes, No) Whether or not the dehumidifica-
tion target is to be raised by an offset (next line)
according to a schedule or schedules on the next
page(s).
(0.0 to 100.0) The amount by which the dehumidifica-
tion setpoint (set on previous page) is to be raised
during night setback hours (as set on the following
schedule page).
(0 to 8) The number of night setback schedules
desired on the following schedule page(s).
(List box: Yes, No) Whether or not there is a con-
trolled air damper.
(List box: Yes, No) Whether or not the air damper is to
be locked out based on ambient temperatuare.
(0.0 to 100.0) The air damper will be locked out below
this temperature minus range (next line). The air
damper will be allowed to open again again when
ambient temperature has risen to lockout plus range.
(0.0 to 9.9) The range selected creates a dead band
around the lockout temperature. The air damper will
be locked out at lockout temperature minus range, and
once locked out will be allowed to open at ambient
lockout plus range.
(0 to 8) The number of schedules that will be created
(below, and on following pages if needed) for air
