3.5.6 Position of modules for extended networking

3.5.6.1 Modules in station with Comfort housing
Building Technologies
Fire Safety

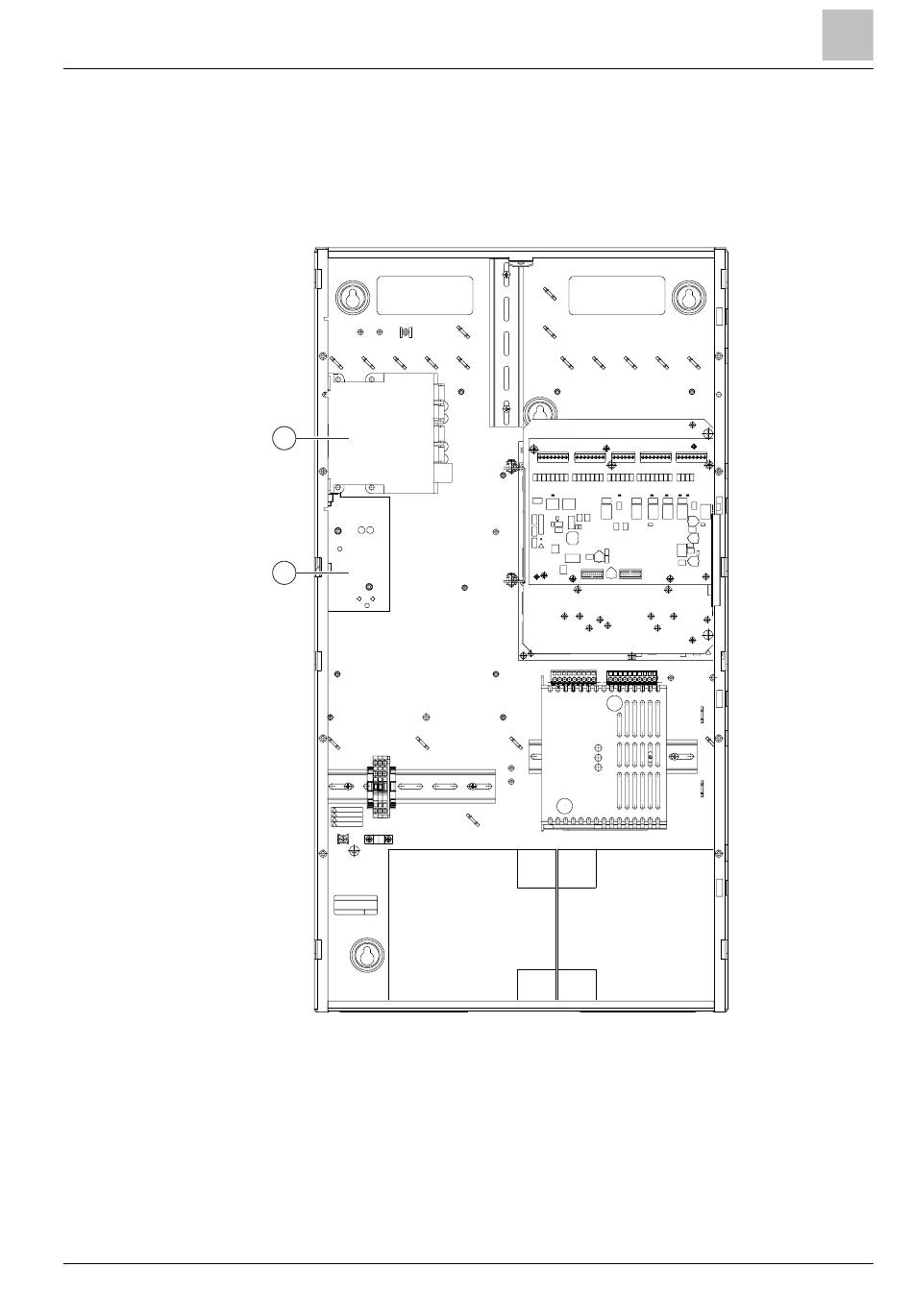

Installation arrangement of an Ethernet switch (MM) FN2008-A1 or Security
module (firewall) FN2009-A1 taking the example of the FC2040-AA with fire
brigade periphery module FCI2001-D1.
2
1
1 Mounting kit (switch, Comf.), installation bracket with two DIN rails
2 FN2008-A1 or FN2009-A1
Setup of the compact control panels
Location of components
3
47 | 354
