Mounting and installation of the compact control panels
5
Remote EVAC-NL and EVAC-NL mimic display driver
232 | 354
Building Technologies
Fire Safety
In the EVAC mimic display FT2003-N1, the EVAC-NL connector board FTI2002-N1
is supplied together with the EVAC-NL operating unit FTO2007-N1.
Vext.
Vsys
FC20xx
Periphery board

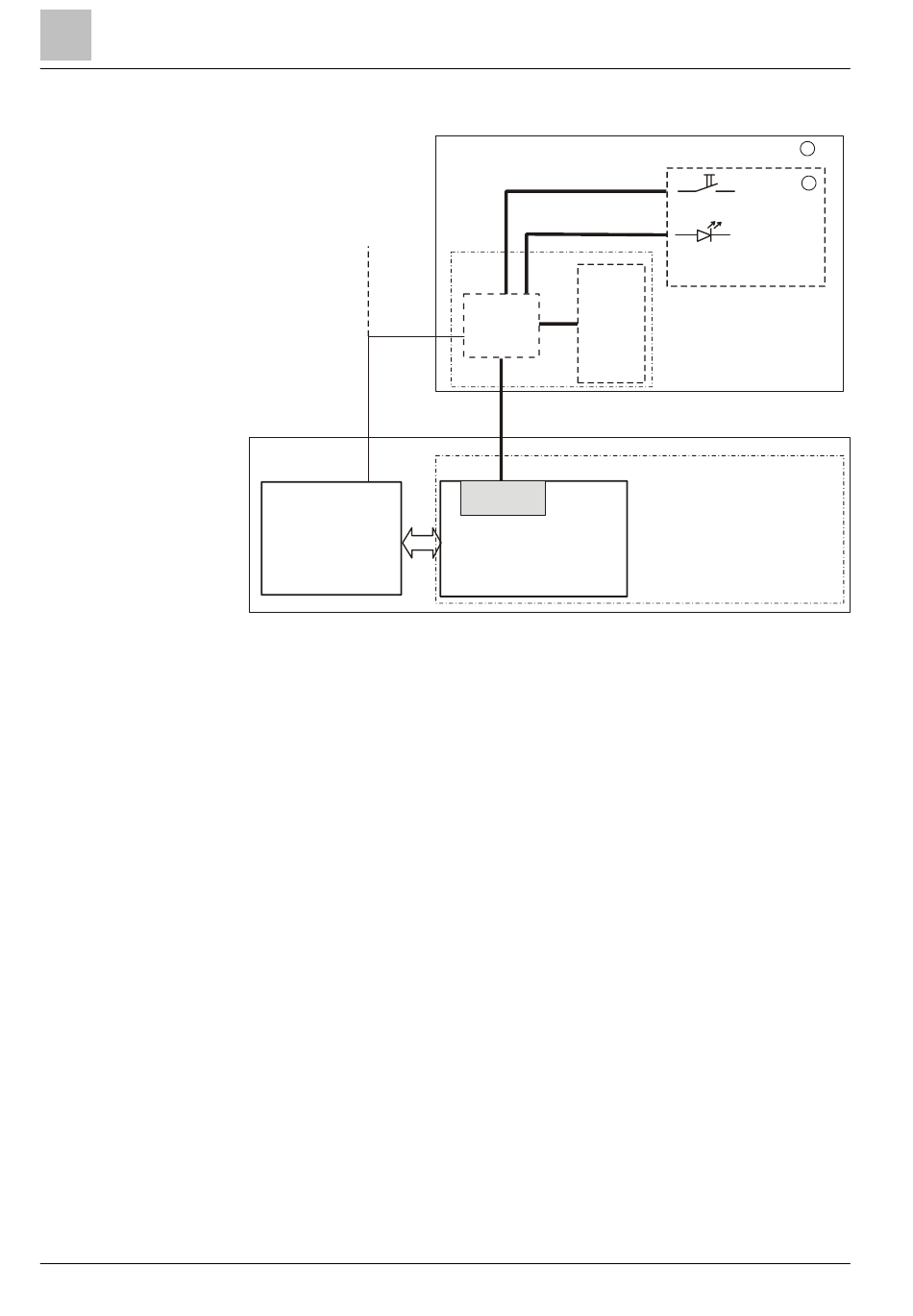

Figure 126: Wiring for EVAC-NL mimic display FT2003-N1
1 Any housing IP30 (e.g. ECO housing)
2 Any mimic display indicator and operation
FT2003 EVAC-NL mimic display
FTO2007 EVAC-NL operating unit
FTI2002 EVAC-NL connector board
FT2003
X2/X3
X5
X4
X1
FTI2002
X1
FTO2007
RS485
RS485
FCA2002
PMI & mainboard
1
2
FCM20xx
