3.5.3 Comfort housing (fire control panels)

Building Technologies
Fire Safety
Fire control panels FC2020, FC2030 and FC2040 are available in the Comfort
housing. With the exception of the card cage and periphery board type, the setup is
identical. One exception is fire control panel FC2040-BB [FI], [SE], which is
supplied in the Large housing.
6
5
4
3
2
1

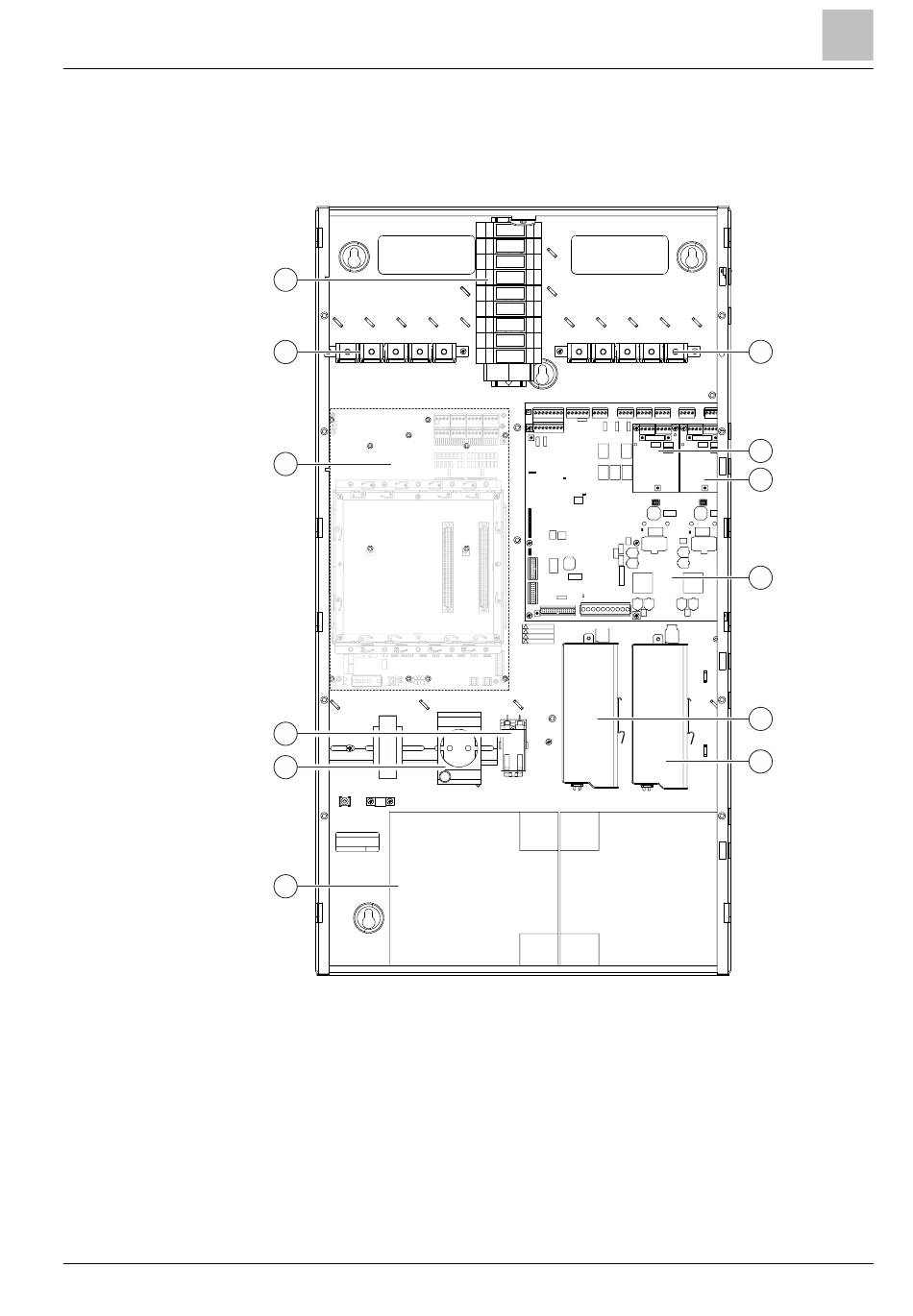

Figure 15: Components in the Comfort housing taking the example of fire control panel FC2040 with
cascaded power supply
1 Batteries
2 Socket (option) on DIN rail
3 Battery kit 9 V [FR] (option)
4
Space for other options (e.g. fire brigade periphery module [DE]) or card
cage (2 slots) with the FC2030
5 Shield connection terminal blocks [DE] or cable kit (communication), (option)
6 Relay module (option) on DIN rail
Setup of the compact control panels
Location of components
