Technical data

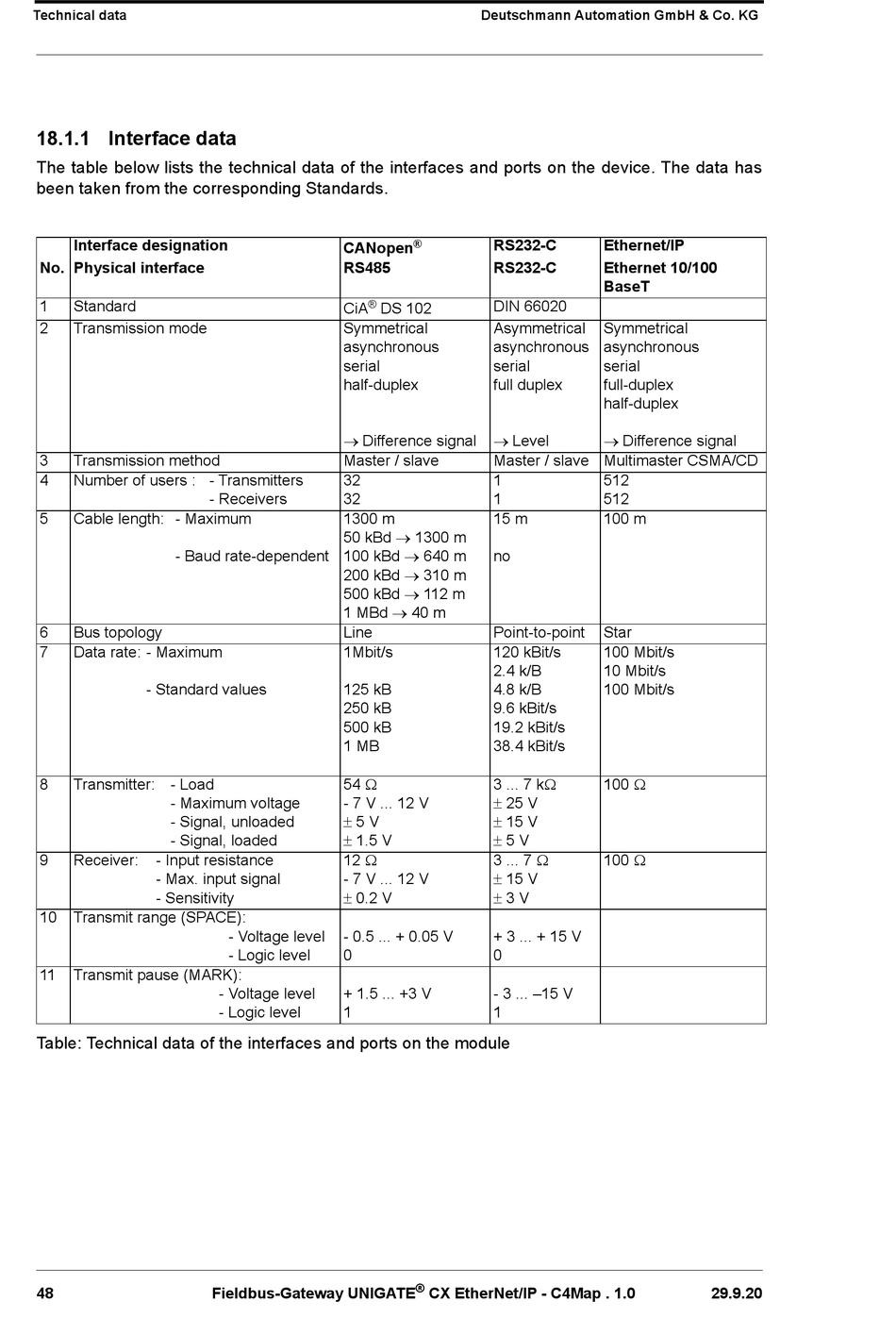

18.1.1 Interface data

The table below lists the technical data of the interfaces and ports on the device. The data has
been taken from the corresponding Standards.
Interface designation
No. Physical interface
1 Standard
2 Transmission mode
3 Transmission method
4 Number of users : - Transmitters
5 Cable length: - Maximum
- Baud rate-dependent
6 Bus topology
7 Data rate: - Maximum
- Standard values
8 Transmitter: - Load
- Maximum voltage
- Signal, unloaded
- Signal, loaded
9 Receiver: - Input resistance
- Max. input signal
- Sensitivity
10 Transmit range (SPACE):
11 Transmit pause (MARK):
Table: Technical data of the interfaces and ports on the module
48
CANopen
RS485
®
CiA
Symmetrical
asynchronous
serial
half-duplex
Difference signal
Master / slave
32
- Receivers 32
1300 m
50 kBd  1300 m
100 kBd  640 m
200 kBd  310 m
500 kBd  112 m
1 MBd  40 m
Line
1Mbit/s
125 kB
250 kB
500 kB
1 MB
54 
- 7 V ... 12 V
 5 V
 1.5 V
12 
- 7 V ... 12 V
 0.2 V
- Voltage level - 0.5 ... + 0.05 V
- Logic level 0
- Voltage level + 1.5 ... +3 V
- Logic level 1
Fieldbus-Gateway UNIGATE
Deutschmann Automation GmbH & Co. KG
RS232-C
®
RS232-C
DIN 66020
DS 102
Asymmetrical
asynchronous
serial
full duplex
Level
Master / slave Multimaster CSMA/CD
1
1
15 m
no
Point-to-point
120 kBit/s
2.4 k/B
4.8 k/B
9.6 kBit/s
19.2 kBit/s
38.4 kBit/s
3 ... 7 k
 25 V
 15 V
 5 V
3 ... 7 
 15 V
 3 V
+ 3 ... + 15 V
0
- 3 ... –15 V
1
®
CX EtherNet/IP - C4Map . 1.0
Ethernet/IP
Ethernet 10/100
BaseT
Symmetrical
asynchronous
serial
full-duplex
half-duplex
Difference signal
512
512
100 m
Star
100 Mbit/s
10 Mbit/s
100 Mbit/s
100 
100 
29.9.20
