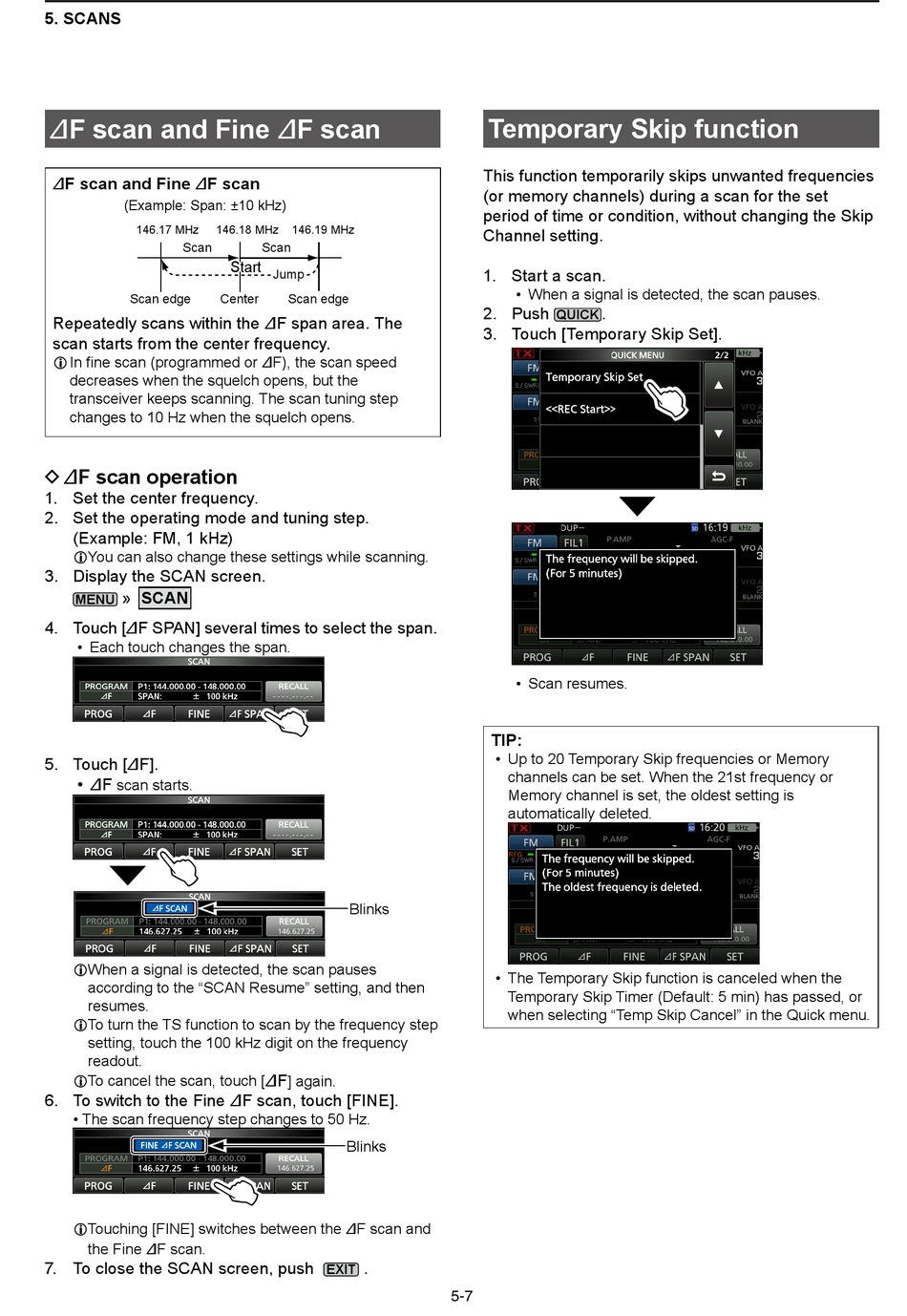

5. SCANS
∂F scan and Fine ∂F scan
∂F scan and Fine ∂F scan
(Example: Span: ±10 kHz)
146.17 MHz 146.18 MHz
Scan
Scan edge
Repeatedly scans within the ∂F span area. The
scan starts from the center frequency.
L In fine scan (programmed or ∂F), the scan speed
decreases when the squelch opens, but the
transceiver keeps scanning. The scan tuning step
changes to 10 Hz when the squelch opens.
D ∂F scan operation
1. Set the center frequency.
2. Set the operating mode and tuning step.
(Example: FM, 1 kHz)
LYou can also change these settings while scanning.
3. Display the SCAN screen.
» SCAN
MENU
4. Touch [∂F SPAN] several times to select the span.
• Each touch changes the span.
5. Touch [∂F].
• ∂F
scan starts.
L When a signal is detected, the scan pauses
according to the "SCAN Resume" setting, and then
resumes.
L To turn the TS function to scan by the frequency step
setting, touch the 100 kHz digit on the frequency
readout.
LTo cancel the scan, touch [
6. To switch to the Fine ∂F scan, touch [FINE].
• The scan frequency step changes to 50 Hz.
L Touching [FINE] switches between the ∂F scan and
the Fine ∂F scan.
7. To close the SCAN screen, push
146.19 MHz
Scan
Start
Jump
Center Scan edge
Blinks
∂F
] again.
Blinks
.
EXIT

Temporary Skip function

This function temporarily skips unwanted frequencies
(or memory channels) during a scan for the set
period of time or condition, without changing the Skip
Channel setting.
1. Start a scan.
• When a signal is detected, the scan pauses.
2. Push .
QUICK
3. Touch [Temporary Skip Set].
• Scan resumes.
TIP:
• Up to 20 Temporary Skip frequencies or Memory
channels can be set. When the 21st frequency or
Memory channel is set, the oldest setting is
automatically deleted.
• The Temporary Skip function is canceled when the
Temporary Skip Timer (Default: 5 min) has passed, or
when selecting "Temp Skip Cancel" in the Quick menu.
5-7
