11. ABOUT THE DV GATEWAY FUNCTION
Setting up a network

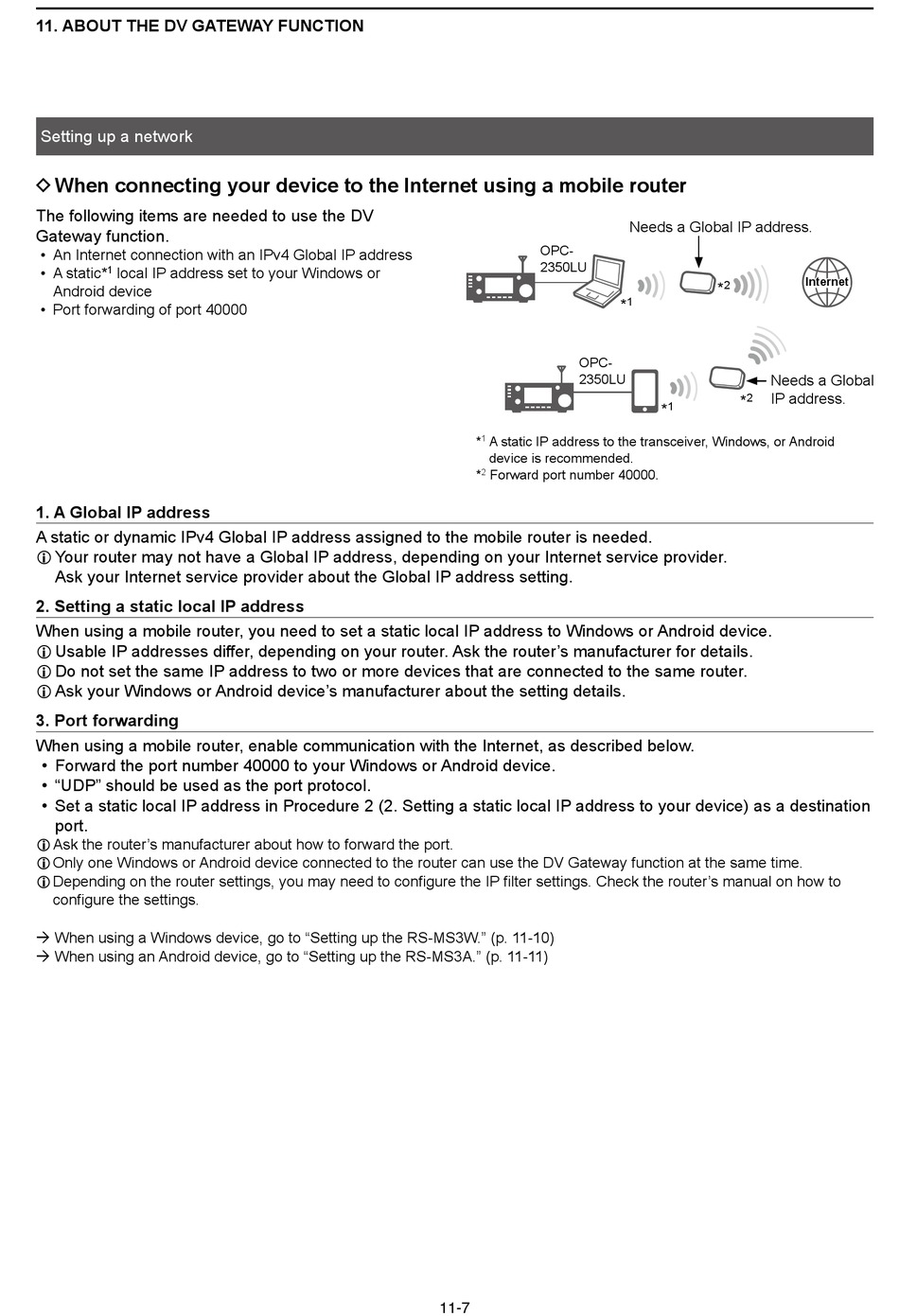

D When connecting your device to the Internet using a mobile router

The following items are needed to use the DV
Gateway function.
• An Internet connection with an IPv4 Global IP address
• A static* 1 local IP address set to your Windows or
Android device
• Port forwarding of port 40000
1. A Global IP address
A static or dynamic IPv4 Global IP address assigned to the mobile router is needed.
L Your router may not have a Global IP address, depending on your Internet service provider.
Ask your Internet service provider about the Global IP address setting.
2. Setting a static local IP address
When using a mobile router, you need to set a static local IP address to Windows or Android device.
L Usable IP addresses differ, depending on your router. Ask the router's manufacturer for details.
L Do not set the same IP address to two or more devices that are connected to the same router.
L Ask your Windows or Android device's manufacturer about the setting details.
3. Port forwarding
When using a mobile router, enable communication with the Internet, as described below.
• Forward the port number 40000 to your Windows or Android device.
• "UDP" should be used as the port protocol.
• Set a static local IP address in Procedure 2 (2. Setting a static local IP address to your device) as a destination
port.
L Ask the router's manufacturer about how to forward the port.
L Only one Windows or Android device connected to the router can use the DV Gateway function at the same time.
L Depending on the router settings, you may need to configure the IP filter settings. Check the router's manual on how to
configure the settings.
 When using a Windows device, go to "Setting up the RS-MS3W." (p. 11-10)
 When using an Android device, go to "Setting up the RS-MS3A." (p. 11-11)
OPC-
2350LU
OPC-
2350LU
* 1 A static IP address to the transceiver, Windows, or Android
device is recommended.
* 2 Forward port number 40000.
11-7
Needs a Global IP address.
* 2
* 1
Needs a Global
IP address.
* 2
* 1
Internet Internet
