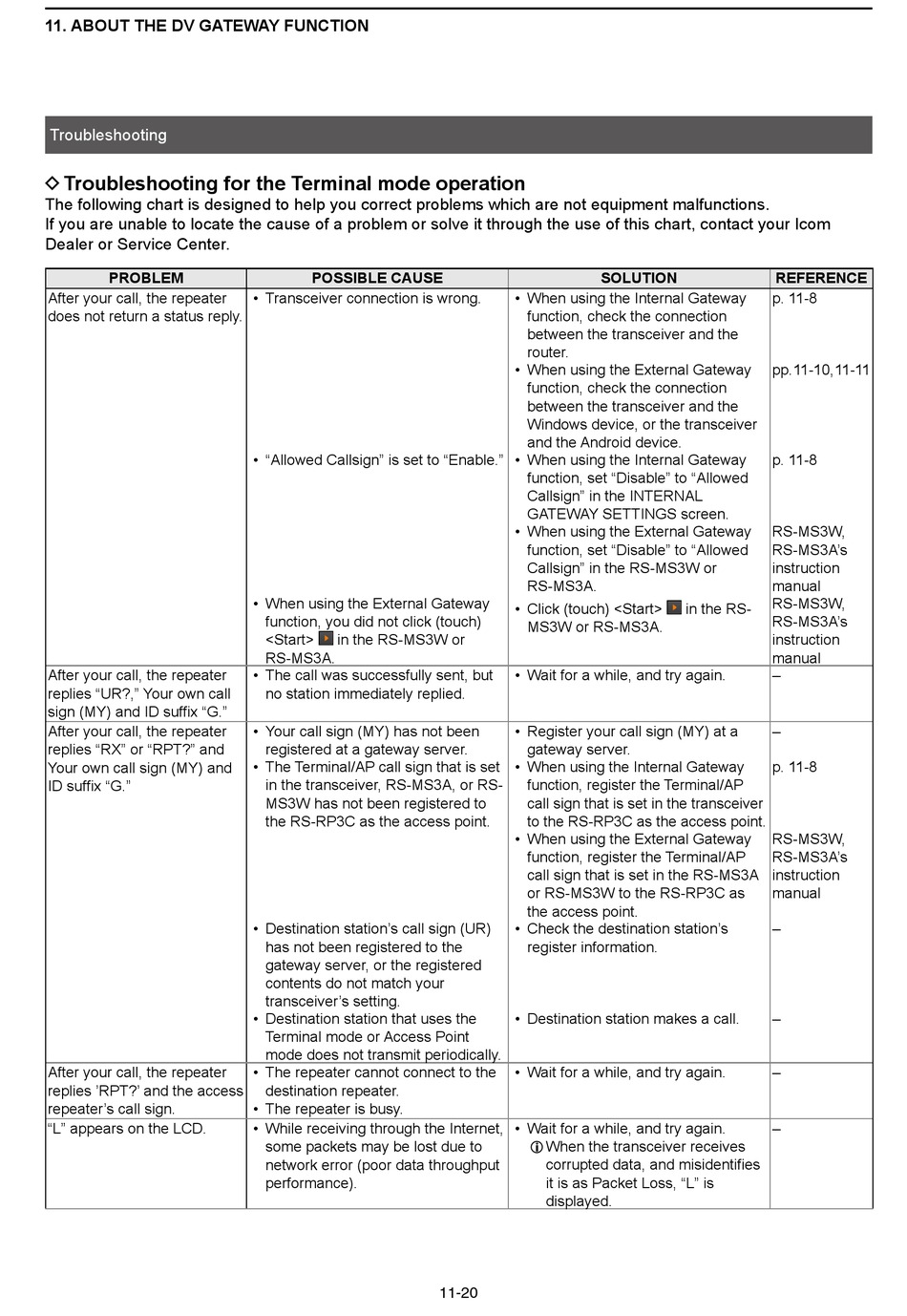

D Troubleshooting For The Terminal Mode Operation - Icom IC-9700 Advanced Manual

11. ABOUT THE DV GATEWAY FUNCTION
Troubleshooting

D Troubleshooting for the Terminal mode operation

The following chart is designed to help you correct problems which are not equipment malfunctions.
If you are unable to locate the cause of a problem or solve it through the use of this chart, contact your Icom
Dealer or Service Center.
PROBLEM
After your call, the repeater
does not return a status reply.
After your call, the repeater
replies "UR?," Your own call
sign (MY) and ID suffix "G."
After your call, the repeater
replies "RX" or "RPT?" and
Your own call sign (MY) and
ID suffix "G."
After your call, the repeater
replies 'RPT?' and the access
repeater's call sign.
"L" appears on the LCD.
POSSIBLE CAUSE
• Transceiver connection is wrong.
• "Allowed Callsign" is set to "Enable." • When using the Internal Gateway
• When using the External Gateway
function, you did not click (touch)
<Start> in the RS-MS3W or
RS-MS3A.
• The call was successfully sent, but
no station immediately replied.
• Your call sign (MY) has not been
registered at a gateway server.
• The Terminal/AP call sign that is set
in the transceiver, RS-MS3A, or RS-
MS3W has not been registered to
the RS-RP3C as the access point.
• Destination station's call sign (UR)
has not been registered to the
gateway server, or the registered
contents do not match your
transceiver's setting.
• Destination station that uses the
Terminal mode or Access Point
mode does not transmit periodically.
• The repeater cannot connect to the
destination repeater.
• The repeater is busy.
• While receiving through the Internet,
some packets may be lost due to
network error (poor data throughput
performance).
SOLUTION
• When using the Internal Gateway
function, check the connection
between the transceiver and the
router.
• When using the External Gateway
function, check the connection
between the transceiver and the
Windows device, or the transceiver
and the Android device.
function, set "Disable" to "Allowed
Callsign" in the INTERNAL
GATEWAY SETTINGS screen.
• When using the External Gateway
function, set "Disable" to "Allowed
Callsign" in the RS-MS3W or
RS-MS3A.
• Click (touch) <Start>
MS3W or RS-MS3A.
• Wait for a while, and try again.
• Register your call sign (MY) at a
gateway server.
• When using the Internal Gateway
function, register the Terminal/AP
call sign that is set in the transceiver
to the RS-RP3C as the access point.
• When using the External Gateway
function, register the Terminal/AP
call sign that is set in the RS-MS3A
or RS-MS3W to the RS-RP3C as
the access point.
• Check the destination station's
register information.
• Destination station makes a call.
• Wait for a while, and try again.
• Wait for a while, and try again.
L When the transceiver receives
corrupted data, and misidentifies
it is as Packet Loss, "L" is
displayed.
11-20
REFERENCE
p. 11-8
pp. 11-10, 11-11
p. 11-8
RS-MS3W,
RS-MS3A's
instruction
manual
RS-MS3W,
in the RS-
RS-MS3A's
instruction
manual
–
–
p. 11-8
RS-MS3W,
RS-MS3A's
instruction
manual
–
–
–
–
