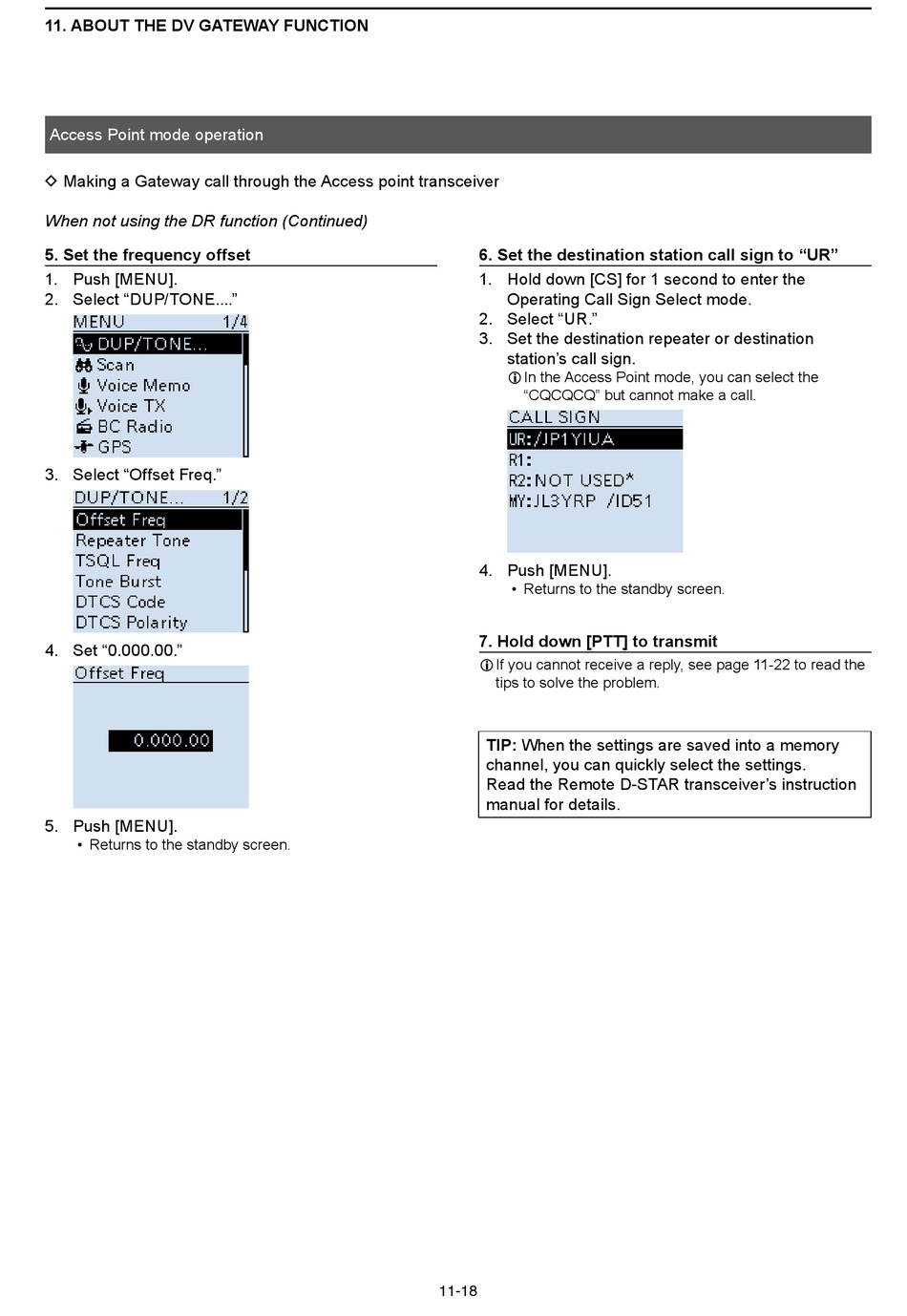

Icom IC-9700 Advanced Manual page 157

11. ABOUT THE DV GATEWAY FUNCTION
Access Point mode operation
D Making a Gateway call through the Access point transceiver
When not using the DR function (Continued)
5. Set the frequency offset
1. Push [MENU].
2. Select "DUP/TONE...."
3. Select "Offset Freq."
4. Set "0.000.00."
5. Push [MENU].
• Returns to the standby screen.
6. Set the destination station call sign to "UR"
1. Hold down [CS] for 1 second to enter the
Operating Call Sign Select mode.
2. Select "UR."
3. Set the destination repeater or destination
station's call sign.
L In the Access Point mode, you can select the
"CQCQCQ" but cannot make a call.
4. Push [MENU].
• Returns to the standby screen.
7. Hold down [PTT] to transmit
L If you cannot receive a reply, see page 11-22 to read the
tips to solve the problem.
TIP: When the settings are saved into a memory
channel, you can quickly select the settings.
Read the Remote D-STAR transceiver's instruction
manual for details.
11-18
