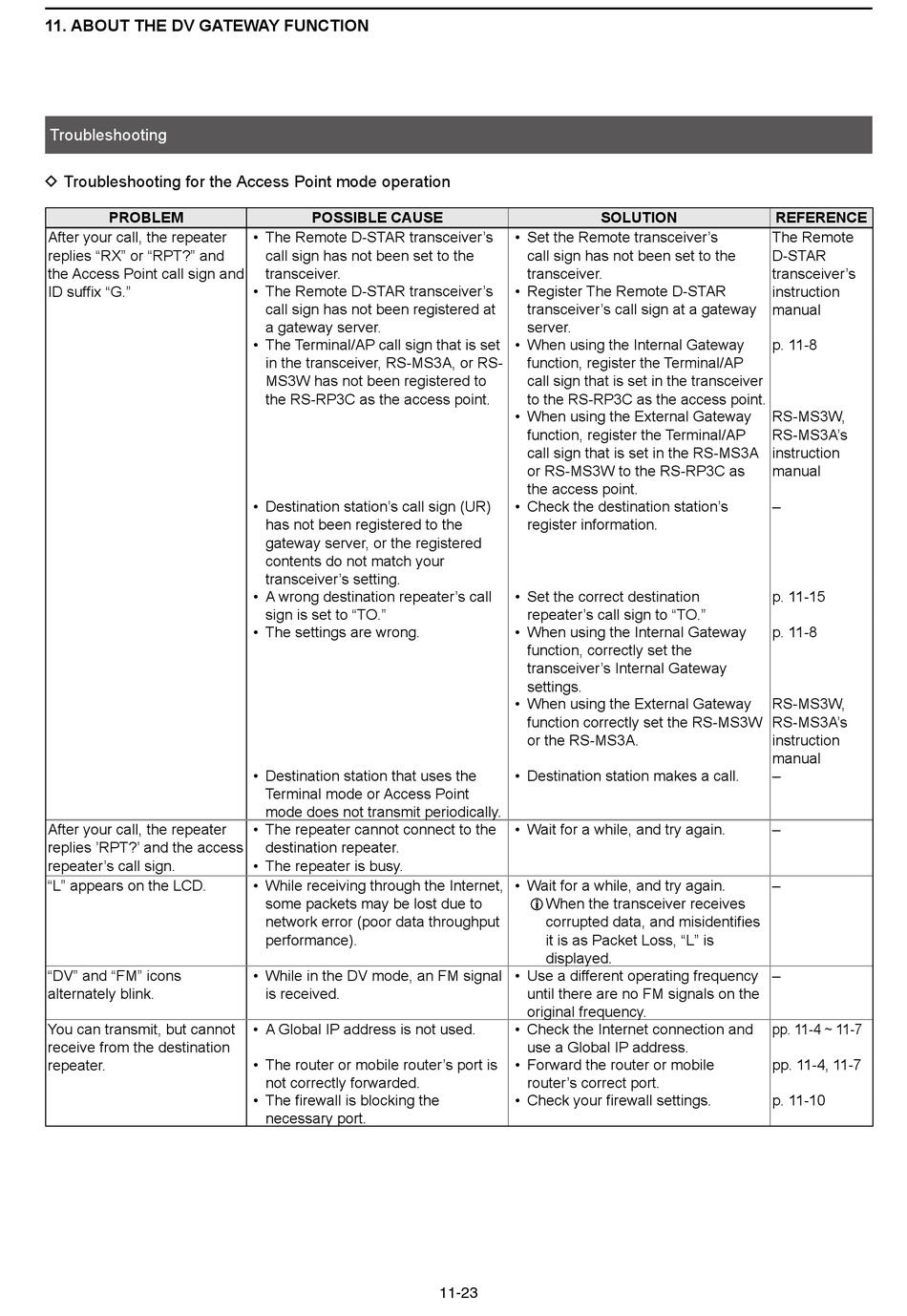

11. ABOUT THE DV GATEWAY FUNCTION
Troubleshooting
D Troubleshooting for the Access Point mode operation
PROBLEM
After your call, the repeater
replies "RX" or "RPT?" and
the Access Point call sign and
ID suffix "G."
After your call, the repeater
replies 'RPT?' and the access
repeater's call sign.
"L" appears on the LCD.
"DV" and "FM" icons
alternately blink.
You can transmit, but cannot
receive from the destination
repeater.
POSSIBLE CAUSE
• The Remote D-STAR transceiver's
call sign has not been set to the
transceiver.
• The Remote D-STAR transceiver's
call sign has not been registered at
a gateway server.
• The Terminal/AP call sign that is set
in the transceiver, RS-MS3A, or RS-
MS3W has not been registered to
the RS-RP3C as the access point.
• Destination station's call sign (UR)
has not been registered to the
gateway server, or the registered
contents do not match your
transceiver's setting.
• A wrong destination repeater's call
sign is set to "TO."
• The settings are wrong.
• Destination station that uses the
Terminal mode or Access Point
mode does not transmit periodically.
• The repeater cannot connect to the
destination repeater.
• The repeater is busy.
• While receiving through the Internet,
some packets may be lost due to
network error (poor data throughput
performance).
• While in the DV mode, an FM signal
is received.
• A Global IP address is not used.
• The router or mobile router's port is
not correctly forwarded.
• The firewall is blocking the
necessary port.
SOLUTION
• Set the Remote transceiver's
call sign has not been set to the
transceiver.
• Register The Remote D-STAR
transceiver's call sign at a gateway
server.
• When using the Internal Gateway
function, register the Terminal/AP
call sign that is set in the transceiver
to the RS-RP3C as the access point.
• When using the External Gateway
function, register the Terminal/AP
call sign that is set in the RS-MS3A
or RS-MS3W to the RS-RP3C as
the access point.
• Check the destination station's
register information.
• Set the correct destination
repeater's call sign to "TO."
• When using the Internal Gateway
function, correctly set the
transceiver's Internal Gateway
settings.
• When using the External Gateway
function correctly set the RS-MS3W
or the RS-MS3A.
• Destination station makes a call.
• Wait for a while, and try again.
• Wait for a while, and try again.
L When the transceiver receives
corrupted data, and misidentifies
it is as Packet Loss, "L" is
displayed.
• Use a different operating frequency
until there are no FM signals on the
original frequency.
• Check the Internet connection and
use a Global IP address.
• Forward the router or mobile
router's correct port.
• Check your firewall settings.
11-23
REFERENCE
The Remote
D-STAR
transceiver's
instruction
manual
p. 11-8
RS-MS3W,
RS-MS3A's
instruction
manual
–
p. 11-15
p. 11-8
RS-MS3W,
RS-MS3A's
instruction
manual
–
–
–
–
pp. 11-4 ~ 11-7
pp. 11-4, 11-7
p. 11-10
