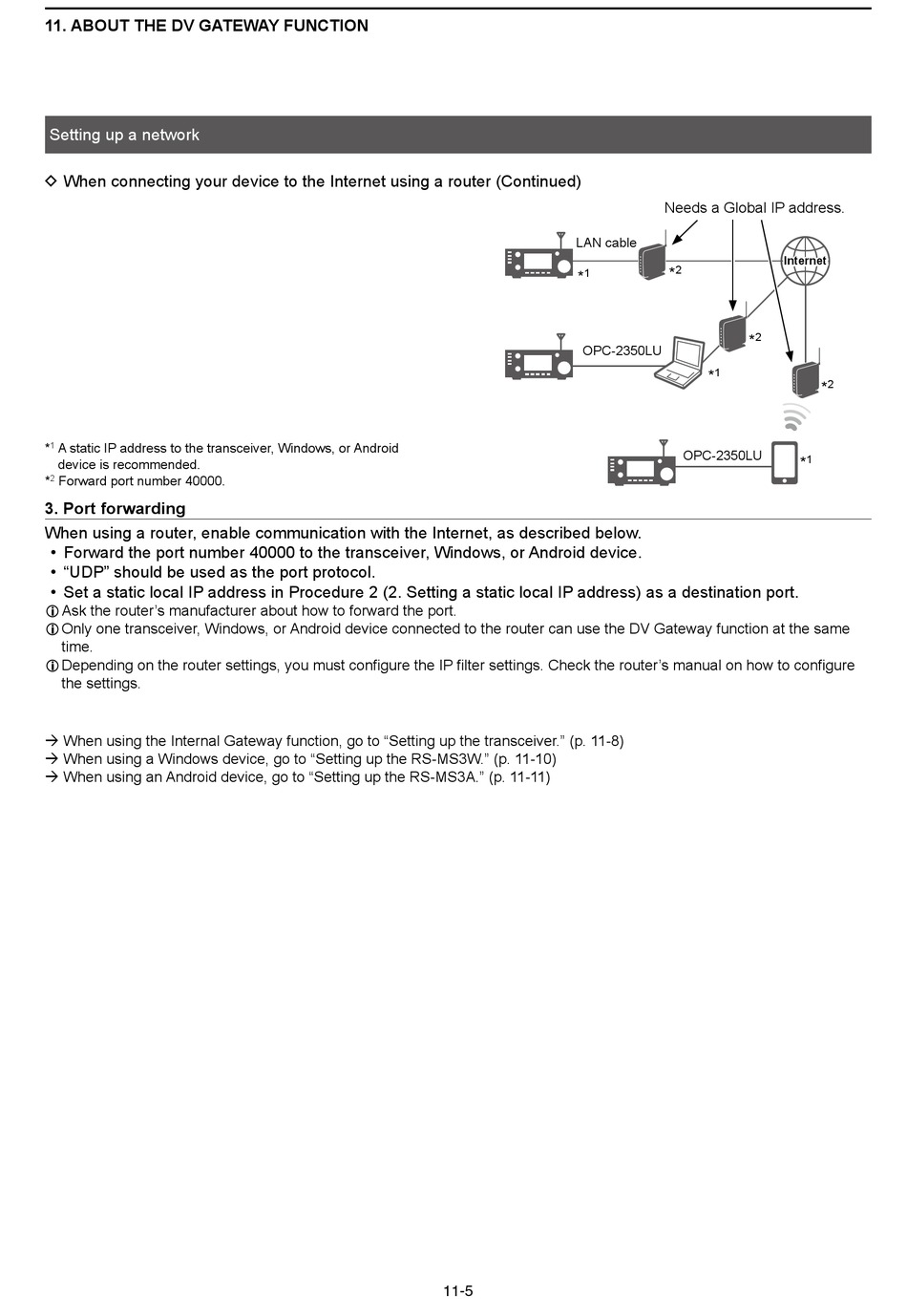

11. ABOUT THE DV GATEWAY FUNCTION
Setting up a network
D When connecting your device to the Internet using a router (Continued)
* 1 A static IP address to the transceiver, Windows, or Android
device is recommended.
* 2 Forward port number 40000.
3. Port forwarding
When using a router, enable communication with the Internet, as described below.
• Forward the port number 40000 to the transceiver, Windows, or Android device.
• "UDP" should be used as the port protocol.
• Set a static local IP address in Procedure 2 (2. Setting a static local IP address) as a destination port.
L Ask the router's manufacturer about how to forward the port.
L Only one transceiver, Windows, or Android device connected to the router can use the DV Gateway function at the same
time.
L Depending on the router settings, you must configure the IP filter settings. Check the router's manual on how to configure
the settings.
 When using the Internal Gateway function, go to "Setting up the transceiver." (p. 11-8)
 When using a Windows device, go to "Setting up the RS-MS3W." (p. 11-10)
 When using an Android device, go to "Setting up the RS-MS3A." (p. 11-11)
LAN cable
* 1
OPC-2350LU
11-5
Needs a Global IP address.
Internet Internet
* 2
* 2
* 1
* 2
OPC-2350LU
* 1
