11. ABOUT THE DV GATEWAY FUNCTION

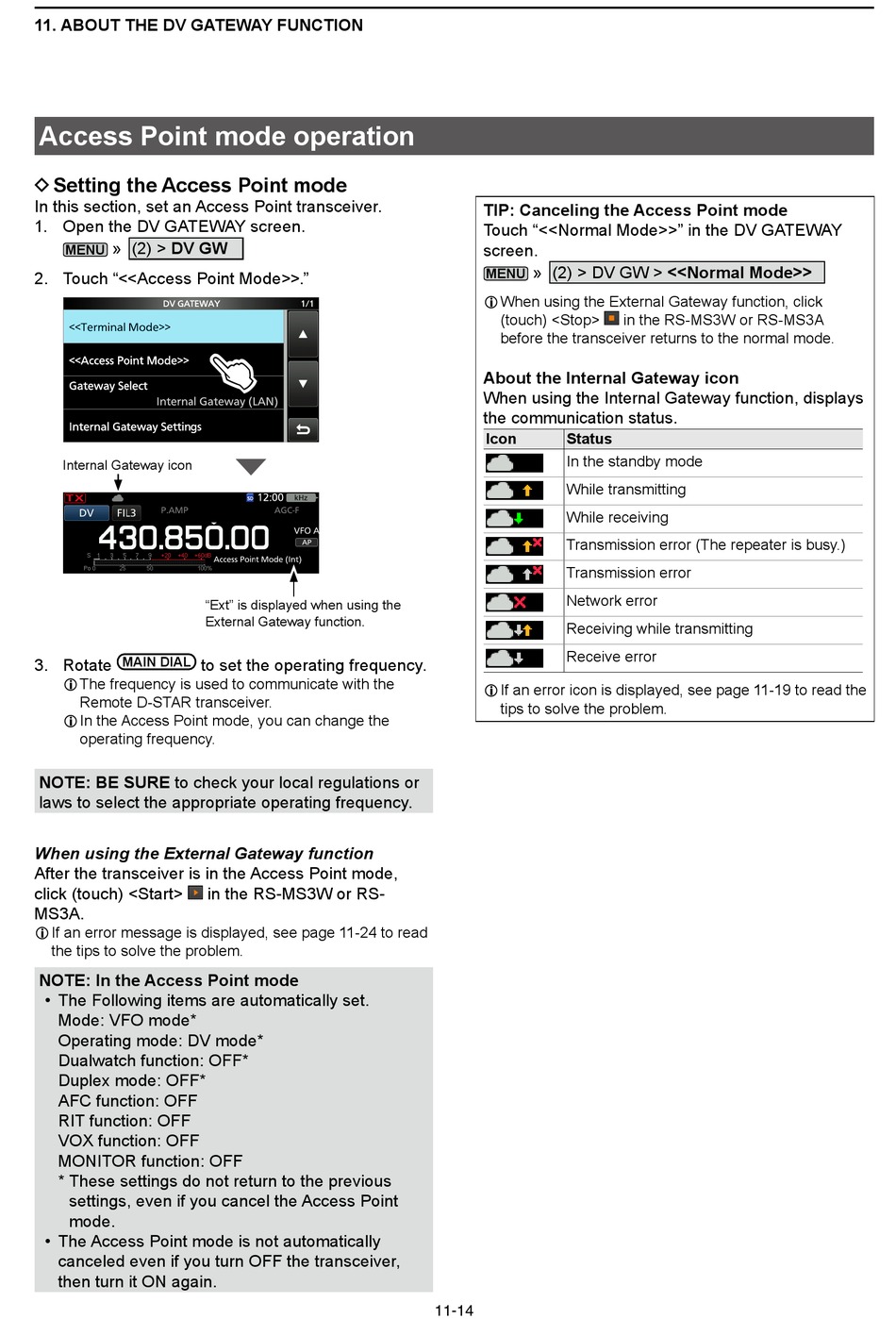

Access Point mode operation

D Setting the Access Point mode

In this section, set an Access Point transceiver.
1. Open the DV GATEWAY screen.
» (2) > DV GW
MENU
2. Touch "<<Access Point Mode>>."
Internal Gateway icon
MAIN DIAL
3. Rotate to set the operating frequency.
L The frequency is used to communicate with the
Remote D-STAR transceiver.
L In the Access Point mode, you can change the
operating frequency.
NOTE: BE SURE to check your local regulations or
laws to select the appropriate operating frequency.
When using the External Gateway function
After the transceiver is in the Access Point mode,
click (touch) <Start>
MS3A.
L If an error message is displayed, see page 11-24 to read
the tips to solve the problem.
NOTE: In the Access Point mode
• The Following items are automatically set.
Mode: VFO mode*
Operating mode: DV mode*
Dualwatch function: OFF*
Duplex mode: OFF*
AFC function: OFF
RIT function: OFF
VOX function: OFF
MONITOR function: OFF
* These settings do not return to the previous
settings, even if you cancel the Access Point
mode.
• The Access Point mode is not automatically
canceled even if you turn OFF the transceiver,
then turn it ON again.
"Ext" is displayed when using the
External Gateway function.
in the RS-MS3W or RS-
TIP: Canceling the Access Point mode
Touch "<<Normal Mode>>" in the DV GATEWAY
screen.
» (2) > DV GW > <<Normal Mode>>
MENU
L When using the External Gateway function, click
(touch) <Stop>
before the transceiver returns to the normal mode.
About the Internal Gateway icon
When using the Internal Gateway function, displays
the communication status.
Icon Status
In the standby mode
While transmitting
While receiving
Transmission error (The repeater is busy.)
Transmission error
Network error
Receiving while transmitting
Receive error
L If an error icon is displayed, see page 11-19 to read the
tips to solve the problem.
11-14
in the RS-MS3W or RS-MS3A
