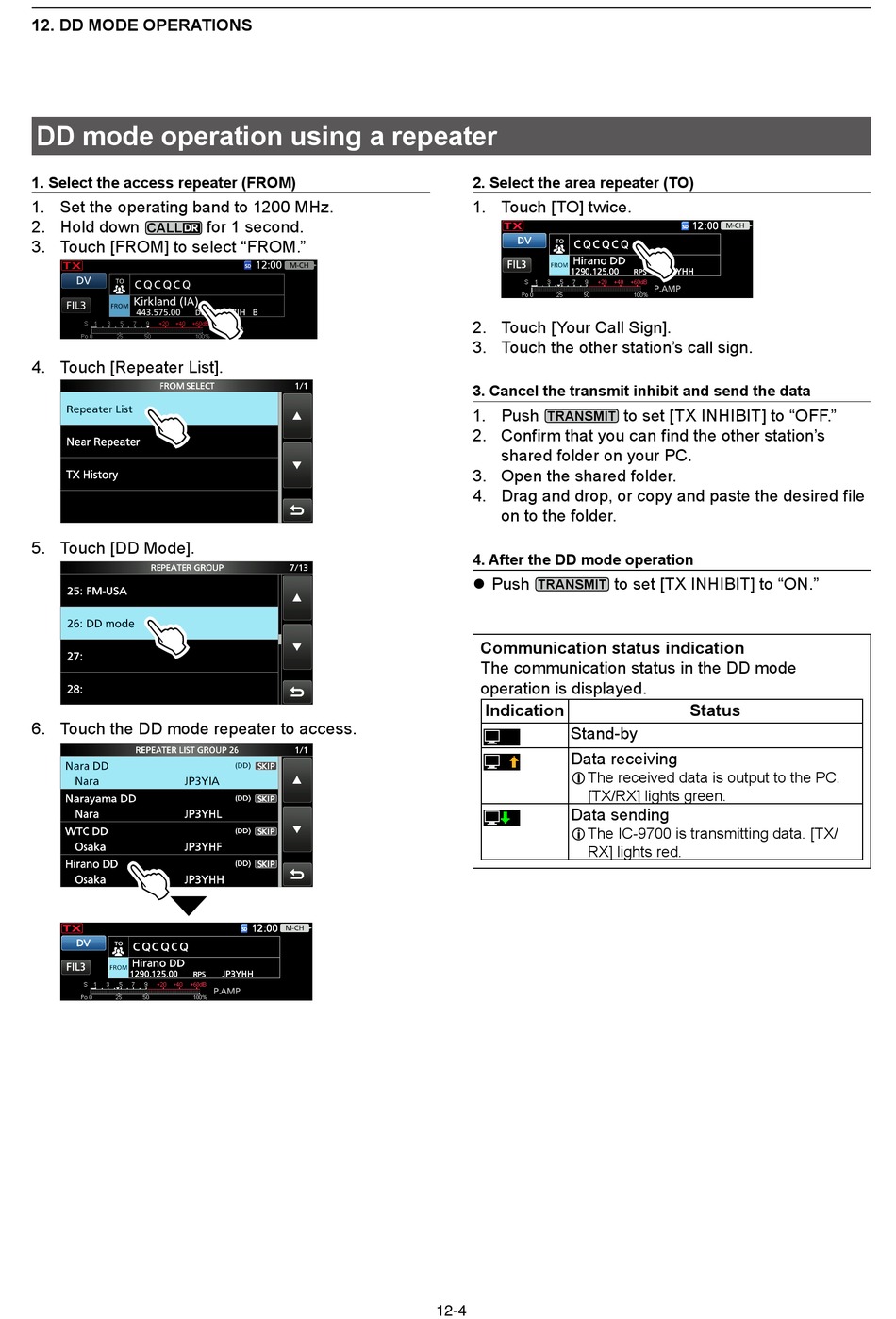

12. DD MODE OPERATIONS

DD mode operation using a repeater

1. Select the access repeater (FROM)
1. Set the operating band to 1200 MHz.
2. Hold down
CALL
DR
3. Touch [FROM] to select "FROM."
4. Touch [Repeater List].
5. Touch [DD Mode].
6. Touch the DD mode repeater to access.
for 1 second.
2. Select the area repeater (TO)
1. Touch [TO] twice.
2. Touch [Your Call Sign].
3. Touch the other station's call sign.
3. Cancel the transmit inhibit and send the data
1. Push
TRANSMIT
2. Confirm that you can find the other station's
shared folder on your PC.
3. Open the shared folder.
4. Drag and drop, or copy and paste the desired file
on to the folder.
4. After the DD mode operation
z Push
TRANSMIT
Communication status indication
The communication status in the DD mode
operation is displayed.
Indication
Stand-by
Data receiving
L The received data is output to the PC.
[TX/RX] lights green.
Data sending
L The IC-9700 is transmitting data. [TX/
RX] lights red.
12-4
to set [TX INHIBIT] to "OFF."
to set [TX INHIBIT] to "ON."
Status
