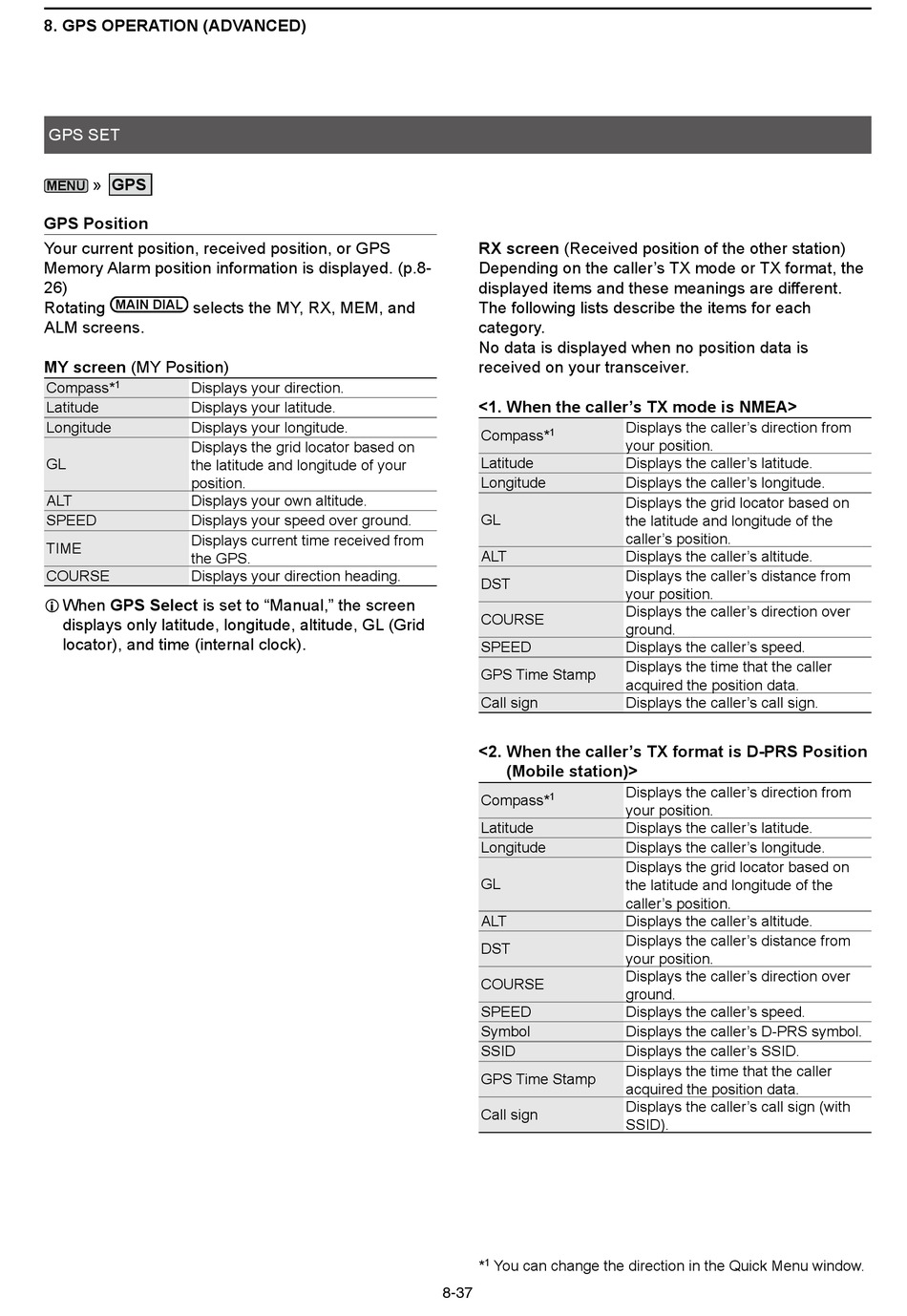

Icom IC-9700 Advanced Manual page 84

8. GPS OPERATION (ADVANCED)
GPS SET
» GPS
MENU
GPS Position
Your current position, received position, or GPS
Memory Alarm position information is displayed. (p.8-
26)
MAIN DIAL
Rotating selects the MY, RX, MEM, and
ALM screens.
MY screen (MY Position)
Compass* 1 Displays your direction.
Latitude Displays your latitude.
Longitude Displays your longitude.
Displays the grid locator based on
GL
the latitude and longitude of your
position.
ALT Displays your own altitude.
SPEED Displays your speed over ground.
Displays current time received from
TIME
the GPS.
COURSE Displays your direction heading.
L When GPS Select is set to "Manual," the screen
displays only latitude, longitude, altitude, GL (Grid
locator), and time (internal clock).
RX screen (Received position of the other station)
Depending on the caller's TX mode or TX format, the
displayed items and these meanings are different.
The following lists describe the items for each
category.
No data is displayed when no position data is
received on your transceiver.
<1. When the caller's TX mode is NMEA>
Compass*
1
Latitude
Longitude
GL
ALT
DST
COURSE
SPEED
GPS Time Stamp
Call sign
<2. When the caller's TX format is D-PRS Position
(Mobile station)>
Compass* 1
Latitude
Longitude
GL
ALT
DST
COURSE
SPEED
Symbol
SSID
GPS Time Stamp
Call sign
* 1 You can change the direction in the Quick Menu window.
8-37
Displays the caller's direction from
your position.
Displays the caller's latitude.
Displays the caller's longitude.
Displays the grid locator based on
the latitude and longitude of the
caller's position.
Displays the caller's altitude.
Displays the caller's distance from
your position.
Displays the caller's direction over
ground.
Displays the caller's speed.
Displays the time that the caller
acquired the position data.
Displays the caller's call sign.
Displays the caller's direction from
your position.
Displays the caller's latitude.
Displays the caller's longitude.
Displays the grid locator based on
the latitude and longitude of the
caller's position.
Displays the caller's altitude.
Displays the caller's distance from
your position.
Displays the caller's direction over
ground.
Displays the caller's speed.
Displays the caller's D-PRS symbol.
Displays the caller's SSID.
Displays the time that the caller
acquired the position data.
Displays the caller's call sign (with
SSID).
