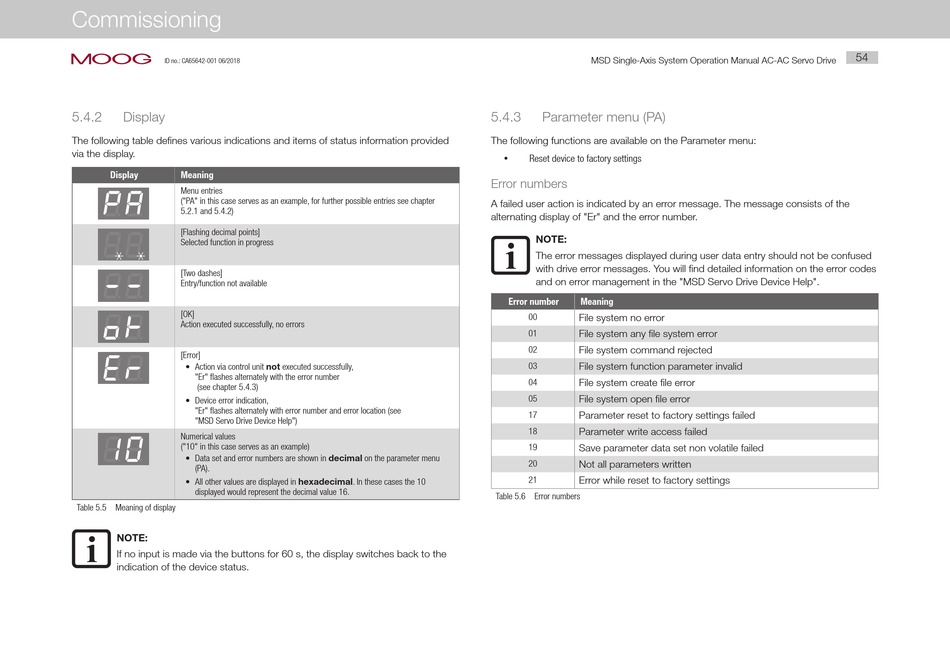

5.4.2

Display

The following table defines various indications and items of status information provided
via the display.
Display Meaning
Menu entries
("PA" in this case serves as an example, for further possible entries see chapter
5.2.1 and 5.4.2)
[Flashing decimal points]
Selected function in progress
[Two dashes]
Entry/function not available
[OK]
Action executed successfully, no errors
[Error]
• Action via control unit not executed successfully,
"Er" flashes alternately with the error number
(see chapter 5.4.3)
• Device error indication,
"Er" flashes alternately with error number and error location (see
"MSD Servo Drive Device Help")
Numerical values
("10" in this case serves as an example)
• Data set and error numbers are shown in decimal on the parameter menu
(PA).
• All other values are displayed in hexadecimal. In these cases the 10
displayed would represent the decimal value 16.
Table 5.5 Meaning of display
NOTE:
If no input is made via the buttons for 60 s, the display switches back to the
indication of the device status.
MSD Single-Axis System Operation Manual AC-AC Servo Drive
5.4.3

Parameter menu (PA)

The following functions are available on the Parameter menu:
y Reset device to factory settings
Error numbers
A failed user action is indicated by an error message. The message consists of the
alternating display of "Er" and the error number.
NOTE:
The error messages displayed during user data entry should not be confused
with drive error messages. You will find detailed information on the error codes
and on error management in the "MSD Servo Drive Device Help".
Error number Meaning
00 File system no error
File system any file system error
01
File system command rejected
02
03 File system function parameter invalid
04 File system create file error
File system open file error
05
Parameter reset to factory settings failed
17
18 Parameter write access failed
Save parameter data set non volatile failed
19
Not all parameters written
20
Error while reset to factory settings
21
Table 5.6 Error numbers
