Commissioning
moog
ID no.: CA65642-001 06/2018
NOTES:
y During the flashing phase the save procedure can still be aborted by
pressing any button, without applying the value set. Otherwise the new
value will be saved after five seconds.
y A modified IP address will not be applied without restarting the control
electronics.
5.4.5

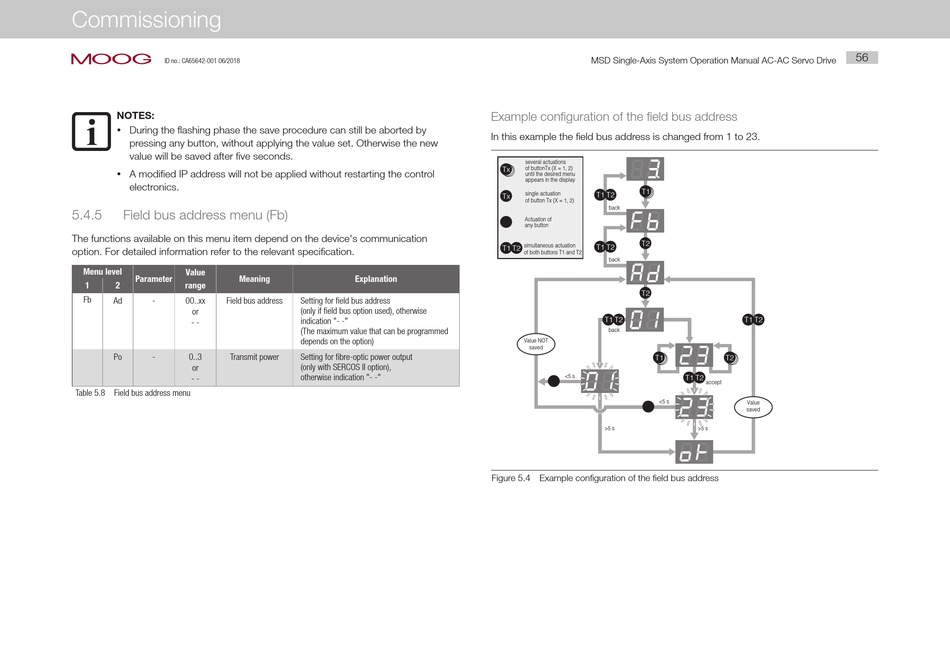

Field bus address menu (Fb)

The functions available on this menu item depend on the device's communication
option. For detailed information refer to the relevant specification.
Menu level
Value
Parameter Meaning
1 2 range
Fb
Ad - 00..xx Field bus address
or
- -
Po - 0..3 Transmit power
or
- -
Table 5.8 Field bus address menu
Explanation
Setting for field bus address
(only if field bus option used), otherwise
indication "- -"
(The maximum value that can be programmed
depends on the option)
Setting for fibre-optic power output
(only with SERCOS II option),
otherwise indication "- -"
MSD Single-Axis System Operation Manual AC-AC Servo Drive
Example configuration of the field bus address
In this example the field bus address is changed from 1 to 23.
several actuations
Tx of buttonTx (X = 1, 2)
until the desired menu
appears in the display
T1
single actuation
T1 T2
Tx
of button Tx (X = 1, 2)
back
Actuation of
any button
T2
simultaneous actuation
T1 T2
T1 T2
of both buttons T1 and T2
back
T2
T1 T2
back
Value NOT
saved
T1
<5 s
<5 s
>5 s
Figure 5.4 Example configuration of the field bus address
56
T1 T2
T2
T1 T2
accept
Value
saved
>5 s
