The following functions and displays are available:
y Indication of the device status
The device status is indicated after switching on the control supply. If no input is made via the
buttons for 60 seconds, the display switches back to the indication of the device status.
y Indication of the device errors, see chapter "6.2 Status and error indication in MDA5"
on page 58 .
On the occurrence of an error in the device, the display is immediately switched to the indication
of the error code.
Parameter configuration (indication "PA")
y
Ethernet IP address setting (indication "IP")
y
Setting for the Ethernet IP address as well as the subnet mask
y Field bus settings (indication "Fb")
Setting e.g. for the field bus address
moog
ID no.: CA65642-001 06/2018
Commissioning
5.4.1

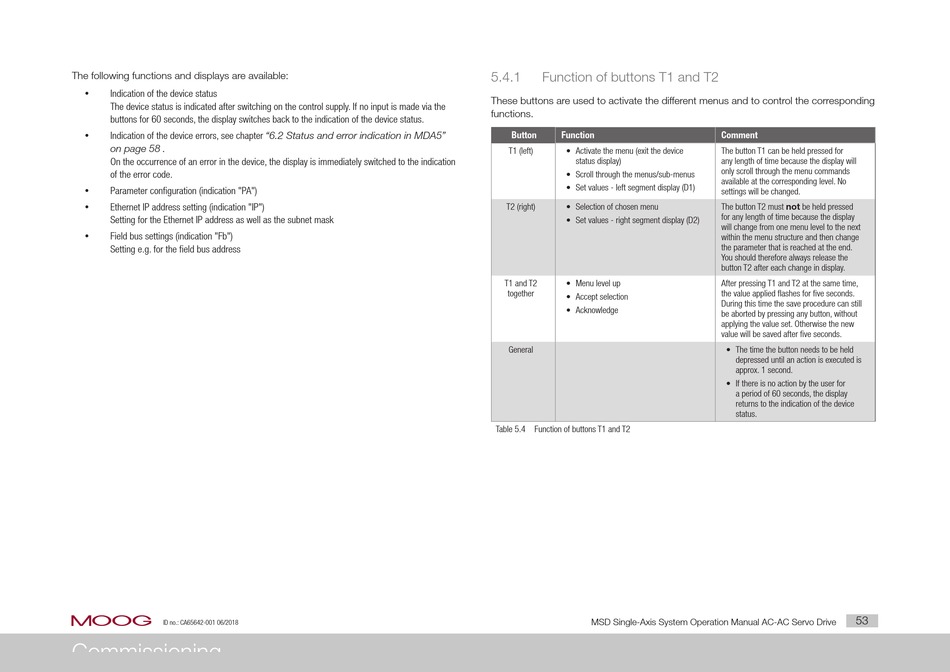

Function of buttons T1 and T2

These buttons are used to activate the different menus and to control the corresponding
functions.
Button Function
T1 (left) • Activate the menu (exit the device
status display)
• Scroll through the menus/sub-menus
• Set values - left segment display (D1)
T2 (right) • Selection of chosen menu
• Set values - right segment display (D2)
T1 and T2 • Menu level up
together
• Accept selection
• Acknowledge
General
Table 5.4 Function of buttons T1 and T2
MSD Single-Axis System Operation Manual AC-AC Servo Drive
Comment
The button T1 can be held pressed for
any length of time because the display will
only scroll through the menu commands
available at the corresponding level. No
settings will be changed.
The button T2 must not be held pressed
for any length of time because the display
will change from one menu level to the next
within the menu structure and then change
the parameter that is reached at the end.
You should therefore always release the
button T2 after each change in display.
After pressing T1 and T2 at the same time,
the value applied flashes for five seconds.
During this time the save procedure can still
be aborted by pressing any button, without
applying the value set. Otherwise the new
value will be saved after five seconds.
• The time the button needs to be held
depressed until an action is executed is
approx. 1 second.
• If there is no action by the user for
a period of 60 seconds, the display
returns to the indication of the device
status.
